Specifications
Place of Origin :
CHINA
Brand Name :
Xindun
Product Name :
LS Solar Panel Inverter and Battery
Factory Price :
1000W-6000W
Input Voltage :
12/24/48VDC
Output Voltage :
110/120/220/230/240VAC±2%
Solar Charging :
MPPT/PWM
Max PV Open Circuit Voltage :
50/100/150VDC
Additional Features :
Inbuilt 0-30A AC charger and 10A-100A MPPT solar charger,Inbuilt AVR stablizer for stable output,Latest toroidal transformer could handle triple surge power,Inverter transfer efficiency up to 85%,Pure sine wave off grid solar panel inverter
Description

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

solar panel with inverter and battery price

Solar Panel With Battery And Inverter

Are you choosing solar panel with inverter and battery? Xindun LS series solar panel inverter meets your expectations. This inverter is designed for off grid solar power system. You can buy solar panel inverter and battery for solar power generation in your home. Xindun can provide you with free solar scheme configuration and cheap solar panel battery inverter price.

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

solar panel with inverter and battery price

Advantage Of Solar Panel Inverter

What is special about the solar panel inverter specially designed for solar power system? First of all, the inverter has a built-in solar controller. A machine has two functions of inverter and control, but does not increase the area and weight of the solar power system. Secondly, the inverter has the complementary function of solar energy and AC mains power. Solar priority can be set. When the solar energy is insufficient, it will automatically switch to mains power supply. In this process, both solar and AC can charge lithium batteries or lead-acid batteries. In other words, if you buy LS series inverter, you only need to configure additional solar panels and batteries to use solar power system easily.

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power InverterLS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power InverterLS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power InverterLS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

solar panel with battery and inverter

Show You Solar Panel Inverter In Multiple Angles

Wall-mounted inverter and can print your logo. Latest toroidal transformer could handle triple surge power. Multiple communication interfaces for data collection.

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

solar panel with battery and inverter

Solar Panel Inverter Technical Data

Solar Panel Inverter Specification
Model LS 10212/24/48
(102)		 15212/24/48
(152)		 20212/24/48
(202)		 30224/48
(302)		 40224/48
(402)		 50248
(502)		 60248
(602)
Rated Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W
Peak Power(20ms) 3000VA 4500VA 6000VA 9000VA 12000VA 15000VA 18000VA
Start Motor 1HP 1.5HP 2HP 3HP 3HP 4HP 4HP
Battery Voltage 12/24/48VDC 24/48VDC 24/48VDC 48VDC
Size(L*W*Hmm) 500*300*140 530*335*150
Packing Size(L*W*Hmm) 565*395*225 605*430*235
N.W.(kg) 12 13.5 18 20 22 24 26
G.W.(kg)(Carton Packing) 13.5 15 19.5 21.5 24 26 28
Installation Method Wall-Mounted
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) / 180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current 0~30A(Depends on model)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode) Follow input
Output waveform distortion
(Battery Mode)		 ≤3%(Linear load)
No load loss(Battery Mode) ≤0.8% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)		 ≤10W
Battery Type VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller
(Optional)		 Charging Mode MPPT or PWM
Charging current 10A~60A(PWM or MPPT) 10A~60A(PWM ) / 10A~100A(MPPT)
PV Input Voltage Range PWM: 15V-44V(12V System); 30V-44V(24V System); 60V-88V(48V System)
MPPT: 15V-120V(12V System); 30V-120V(24V System); 60V-120V(48V System)
Max PV Input Voltage(Voc)
(At the lowest temperature)		 PWM: 50V(12V/24V System ); 100V(48V System) / MPPT: 150V
PV Array Maximum Power 12V System: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A;
48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)
Standby loss ≤3W
Maximum conversion efficiency >95%
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature ≤55dB
Storage temperature -10℃~40℃
Noise -15℃~60℃
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice

buy solar panel and inverter and battery

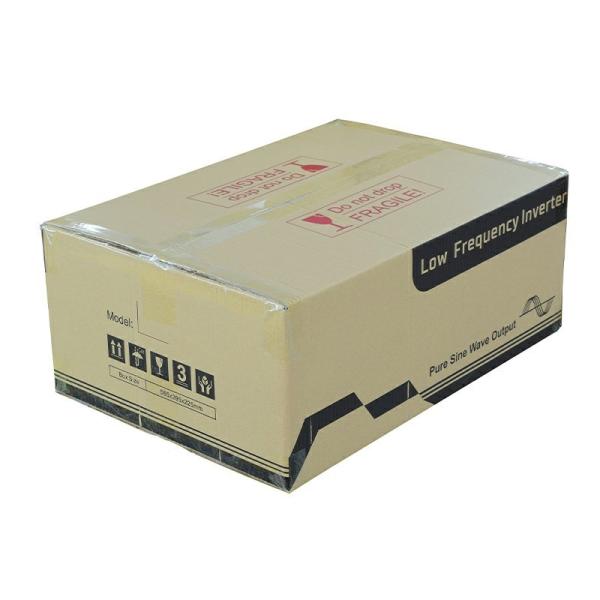

Solar Panel Inverter Package

Pack in carton box then pallet (wooden box) to ensure the safety of the inverter

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

solar panel and inverter and battery package

Solar Panel Inverter Installation

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

solar panel with battery and inverter

Solar Panel Inverter Factory

Xindun Power, as an international brand, was successfully registered in 2006, and has been successfully registered in 9 countries so far. Our solar products were sold well in more than 100 countries. As the National High-tech Enterprise, Xindun always specializing engaged in R&D, production, sales of critical power products, renewable energy solutions, industrial batteries, etc.

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power InverterLS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

Reasons you would prefer to buy this solar panel inverter from us?

1. Nearly 20 years manufacturing and trading.
2. 2 R&D centers to ensure continuous innovation.
3. Dozens of patent certificates for various solar products.
4. CE/TUV/IEC certificates and IEC test reports.
5. 100+ countries agents & partners.
6. OEM & ODM, small order accepted.
7. Quick delivery strict QMC system.
8. The most competitive solar panel with inverter and battery price in the industry.

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

LS Solar Panel Inverter And Battery 1000W-6000W MPPT/PWM Solar Power Inverter

solar panel battery inverter factory

FAQ of Inverter

1. Are you a solar factory?
Yes. While producing solar panel inverters, we also provide one-stop service solutions for solar systems. It is a solar factory with a history of 17 years, with an area of 10000 square meters.

2. What is solar panel inverter price? What is solar panel with inverter and battery price?
Solar panel with battery and inverter, that is an engineering project. In order to be responsible for customers, we will make a reasonable quotation after you clarify your solar demand clearly.

3. How to calculate solar panel and inverter and battery?
First, calculate the watt-hours consumed per day (including the loss of the inverter): if the conversion efficiency of the inverter is 90%, then when the output power is 100W, the actual output power required should be 100W/90%=111W; If it is used for 5 hours per day, the power consumption is 111W * 5 hours=555Wh.
Second, calculate the solar panel: the solar panel output power should be 555Wh/6h/70%=130W based on the daily effective sunshine time of 6 hours, and taking into account the charging efficiency and the loss in the charging process. Among them, 70% is the actual use power of solar panels during charging.
Third, Label of battery capacity: For example, 12V100Ah (ampere hour) means that if 100A constant current discharge current can be discharged for 1 hour. That is, if 10A constant current discharge current can be discharged for 10 hours. For example: 30W electric fan, a 1kW inverter and a 12V100Ah battery. The power of 30W is equal to 2.5100 A divided by 12V and 2.5 equal to 40 hours. The fan can work for about 40 hours.
Fourth, the inverter power must be greater than the load power, especially the inductive load. The rated power of the inverter shall be 2-4 times greater than the power of the inductive carrier. The peak power of the inverter shall be 5-7 times greater than the inductive load power.

For more questions, please contact Xindun solar panel battery inverter factory at any time.
