Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl
Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl
Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl
Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl
Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl
Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl
Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl
Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl
Specifications
Type :
Multi-Function Packaging Machine
Production Capacity :
1-60 packs/min
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG) :
800
Showroom Location :
None
Condition :
New
Function :
FILLING, Wrapping, Sealing, counting, Automatic packaging
Application :
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
Packaging Type :
Bags, Pouch, Three edge-sealing
Packaging Material :
Plastic, Paper, Metal, Glass, Wood, CPP
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V/50HZ
Place of Origin :
Guangdong, China
Brand Name :
XingKe
Dimension(L*W*H) :
3200*2100*1650 MM
Warranty :
1 years
Key Selling Points :
Easy to Operate
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC, Other, Bearing, Solenoid valve, cylinder
Product name :
Automatic Vertical Packing Machine
Bag type :
stripe/back seal/3 sides seal
Counting method :
optical fiber counting/blocking and putting
Bag size :
width 40-140, length less than 200
Air supply :
0.4-0.8MPA
Packing material :
CPP OPP
Feature :
Easy Opperation
Bag mouth shape :
figure cutter tooth shape
Advantage :
Servo Motor Control
Keyword :
Packaging Machinery Equipment
Packaging Details :
Packed in wooden cases
Port :
guangzhou
Supply Ability :
20 Set/Sets per Month
Price :
$22,500.00/sets >=1 sets
MOQ :
1set
Delivery Time :
10-15 days
Payment Terms :
T/T / west Union/ Money gram / Credit Card
Description
Product Description

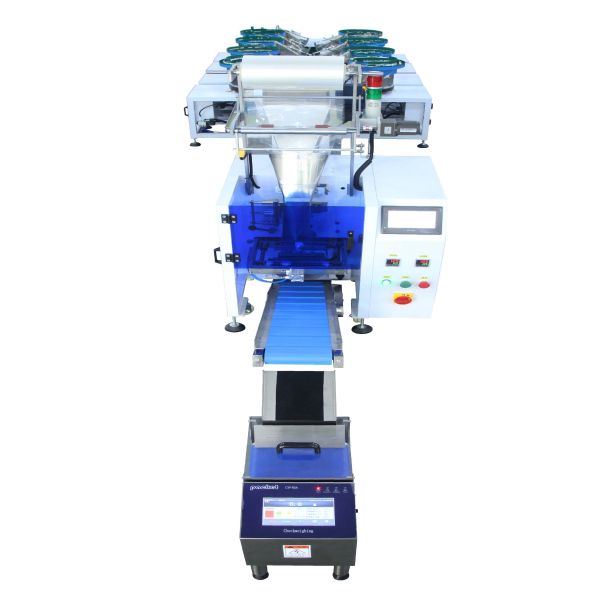

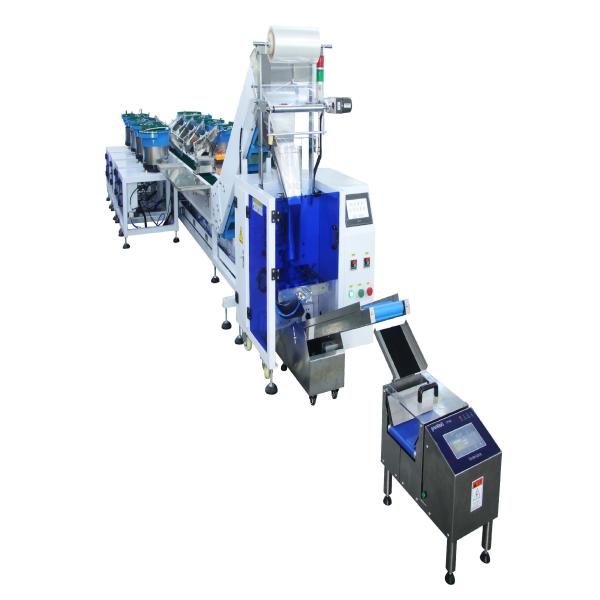

Automatic Nut Bolt Hardware Filling Eight Bowls Packing Machine With 8 Vibrator Bowl


XK-B868Z(8 drums mixing products packing bag packaging machine)

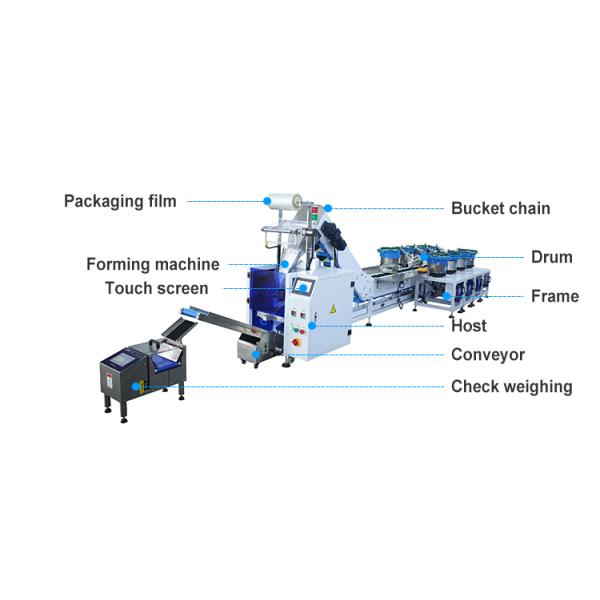

1) Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting, labeling machine, conveyor and other expansion equipment. 2)Scope of application and functional features 1. This product is suitable for a variety of automatic counting material put in mix or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 8 drums work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.
Equipment model
XK-B870Z
Counting method
optical fiber counting/blocking and putting
Bag size
width 40-140, length less than 200 (usually 140)
Packing speed
1-60 bags/min
Sealing shape
stripe, back sealing/three side sealing (conventional back sealing)
Voltage power
220V/50HZ P≈0.6KW
Air supply
0.4-0.8MPA
Bag mouth shape
figure cutter tooth shape
Dimensions
length 3200mm/ width 2100mm/ height 1650mm
Weight
about 800KG
