Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine
Specifications
Type :
Multi-Function Packaging Machine
Production Capacity :
1-60 packs/min
Applicable Industries :
Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock
Weight (KG) :
1000
Showroom Location :
None
Condition :
New
Function :
FILLING, Sealing, counting, Automatic packaging, High Effieciency
Application :
Commodity, Medical, Machinery & Hardware, screws, nuts, flat pads, spring pads, toys, standard parts
Packaging Type :
Bags, Foil, Pouch, Three edge-sealing
Packaging Material :
Plastic, Paper, Metal, Glass, Wood, CPP
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V/50HZ
Place of Origin :
Guangdong, China
Brand Name :
XingKe
Dimension(L*W*H) :
6800*1700*1470MM
Warranty :
1 years
Key Selling Points :
High Productivity
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC, Other, Bearing, Solenoid valve, cylinder
Product name :
Automatic Vertical Packing Machine
Air supply :
0.4-0.8MPA
Counting mode :
optical fiber counting/blocking and placing
Bag size :
40-140 wide and 200 long
Sealing shape :
stripe, back seal/three side seal
Air source requirement :
0.4-0.8MPA
Pocket mouth shape :
pattern knife tooth shape
After-sales Service Provided :
Video Technical Support
After Warranty Service :
Video Technical Support\Online Support\
Packaging Details :
Packed in wooden cases
Port :
guangzhou
Supply Ability :
100 Set/Sets per Month
Price :
$31,000.00/sets >=1 sets
MOQ :
1set
Delivery Time :
10-15 days
Payment Terms :
T/T / west Union/ Money gram / Credit Card
Description
Product Description
Factory Direct Sales High-efficiency Equipment Small Screw Hardware Plastic Spare Parts Packaging Machine

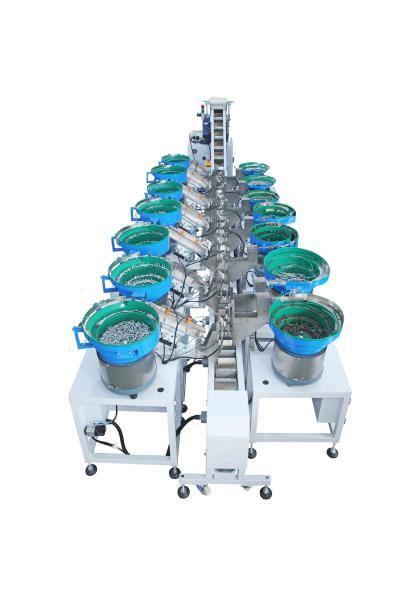

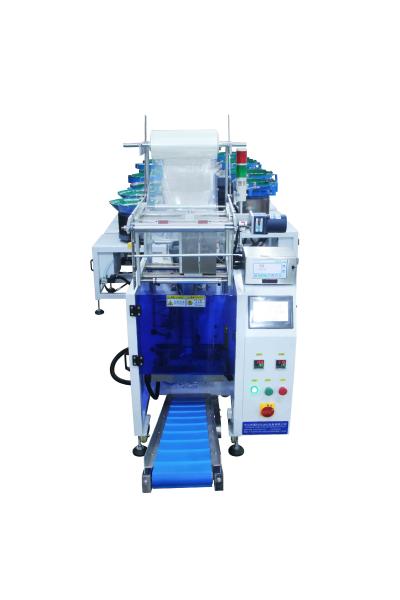

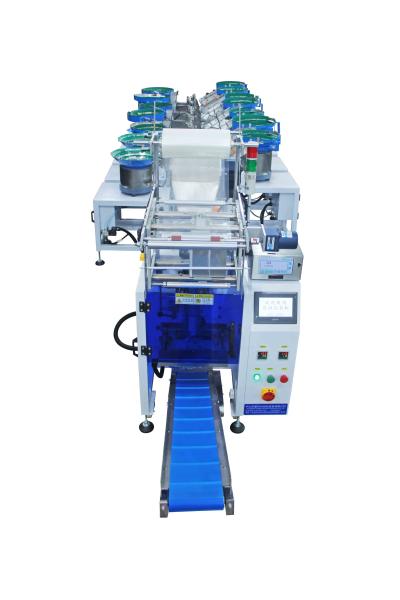

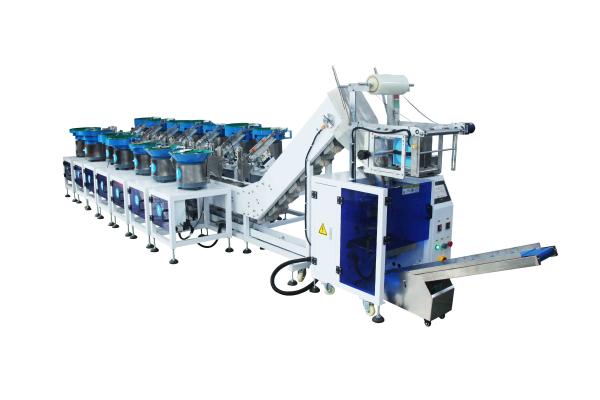

XK-B874Z (14 disc corner type packaging machine)

(1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The intelligent temperature control system is adopted, with stable temperature control and adjustable temperature as required. 3. The length of the packaging bag is adjustable, and the total number of packages is adjustable. When the set number is reached, an automatic alarm will be given. 4. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed.
(2) Scope of application and functional characteristics 1. This product is suitable for automatic counting, feeding, mixing or separate packaging of various materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. This product uses the chain bucket climbing type to drive the material box to rotate, manually put the materials into the material box, and the chain bucket fills the products into the molding machine for automatic packaging. This product uses the climbing method to reduce the height of the trailer. More than 14 vibrating disk stations can be added behind the trailer, It can continue to mix and automatically package materials of more specifications, and can also use the spare space for manual feeding. 2. Applicable to "OPP/CPP/composite membrane" as sealing material
Equipment model
XK-B874Z
Counting method
optical fiber counting/blocking and placing
Bag size
width 40-140 length 200 (conventional 140)
Packing speed
1-60 bags/min
Sealing shape
stripe, back sealing/three side sealing (conventional back sealing)
Voltage power
20V/50HZ P ≈ 3KW
Air supply
0.4-0.8MPA
Bag mouth shape
figure cutter tooth shape
Dimensions
length 6800mm/ width 1700mm/ height 1470mm
Weight
about 1000KG
