High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
Specifications
Type :
Multi-Function Packaging Machine
Production Capacity :
1-60 packs/min
Applicable Industries :
Manufacturing Plant, Construction works , Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock
Weight (KG) :
150
Showroom Location :
None
Condition :
New
Function :
FILLING, Sealing, counting, Automatic packaging
Application :
Commodity, Machinery & Hardware
Packaging Type :
Bags, Film, Pouch, Three edge-sealing
Packaging Material :
Plastic, Paper, CPP
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Place of Origin :
Guangdong, China
Brand Name :
XingKe
Dimension(L*W*H) :
1100* 750*1550 MM
Warranty :
1 years
Key Selling Points :
Easy to Operate
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC, Other, Bearing, Solenoid valve, cylinder
Product name :
single materials Packing Machine
Counting method :
optical fiber counting/blocking and putting
Bag size :
width 40-140 length less than 200 (usually 140)
Packing speed :
1-60 bags/min
Sealing shape :
stripe, back seal/three side seal (usually back seal)
Voltage power :
220V/50HZ P=0.6KW
Air supply :
0.4-0.8MPA
Bags both sides :
figure cutter tooth shape
sealing material :
OPP/CPP/ lamination film
suitable for :
such as screws, nuts, flat pads, spring pads, toys, standard parts
Packaging Details :
Packed in wooden cases
Port :
guangzhou shenzhen
Supply Ability :
20 Set/Sets per Month
Price :
$3,150.00/sets
MOQ :
1set
Delivery Time :
10-15 days
Payment Terms :
T/T / west Union/ Money gram / Credit Card
Description
Product Description
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
Equipment model
XK-B861
Counting method
optical fiber counting/blocking and putting
Bag size
width 40-140 length less than 200 (usually 140)
Packing speed:
1-60 bags/min
Sealing shape
stripe, back seal/three side seal (usually back seal)
Voltage power
220V/50HZ P≈0.6KW
Air supply
0.4-0.8MPA
Bag's both sides
figure cutter tooth shape
Dimensions
length 1100mm / width 750mm/height 1550mm
Weight
about 150KG

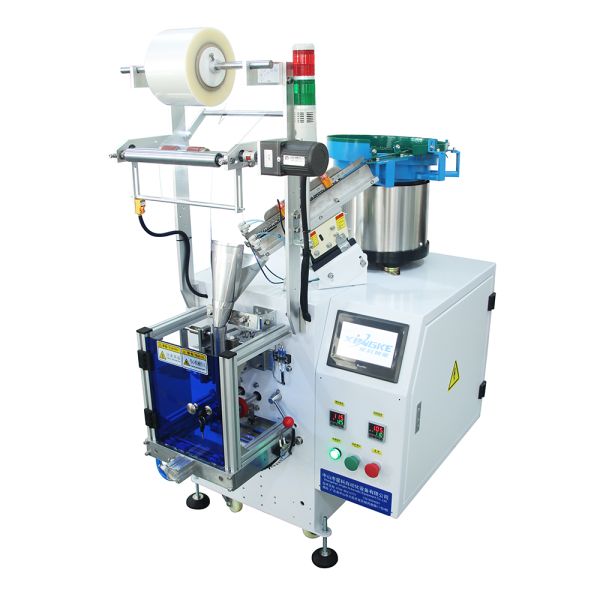

XK-B861（Automatic counting, coding and filling packaging machine for single

materials of screws, nuts ,toys etc)

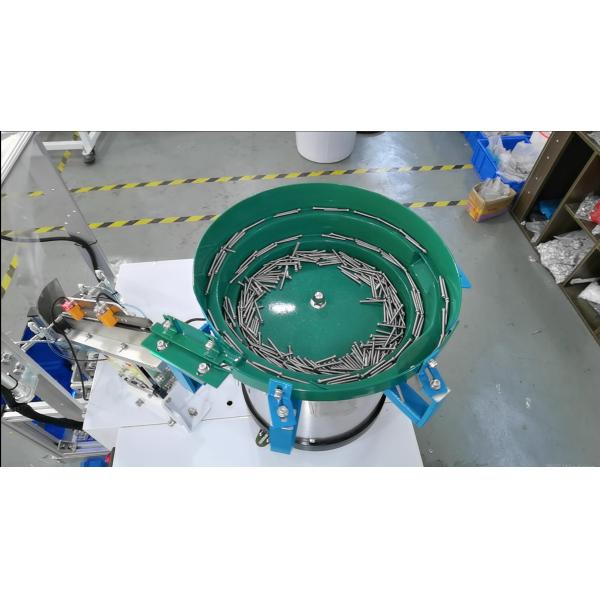

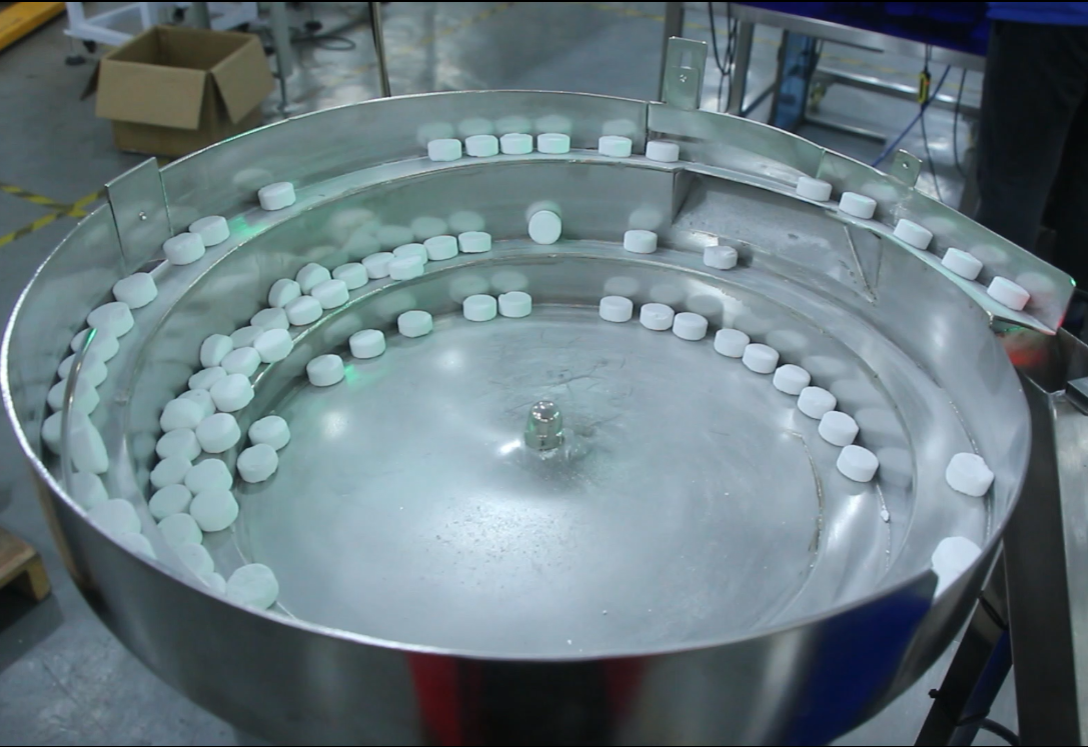

Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm. 4.After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment. 2) Scope of application and functional features 1. This product is suitable for automatic packaging of single materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the molding machine for automatic packaging, and can also use the spare space of the equipment to manually put other materials mixed packaging. 2.It is suitable for "OPP/CPP/ lamination film" as sealing material.

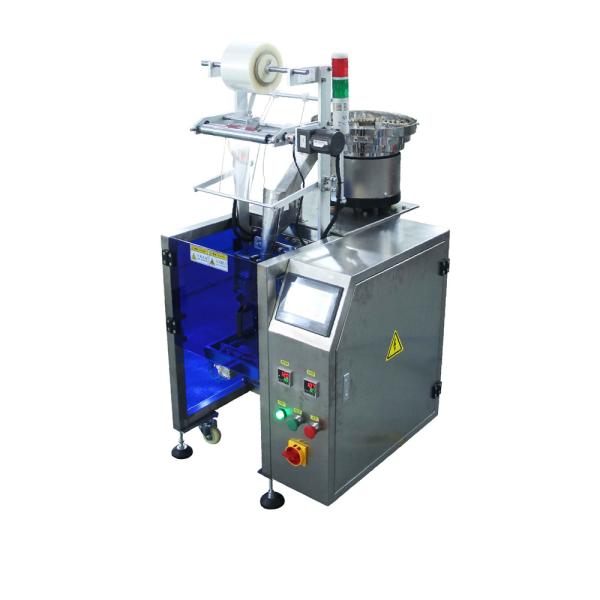

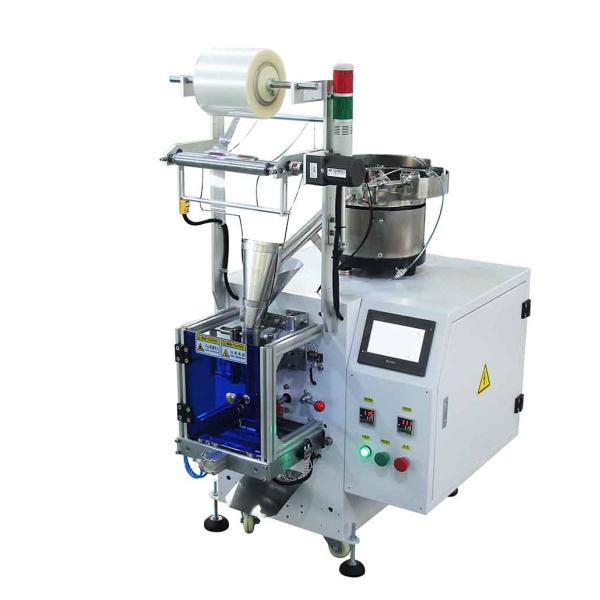

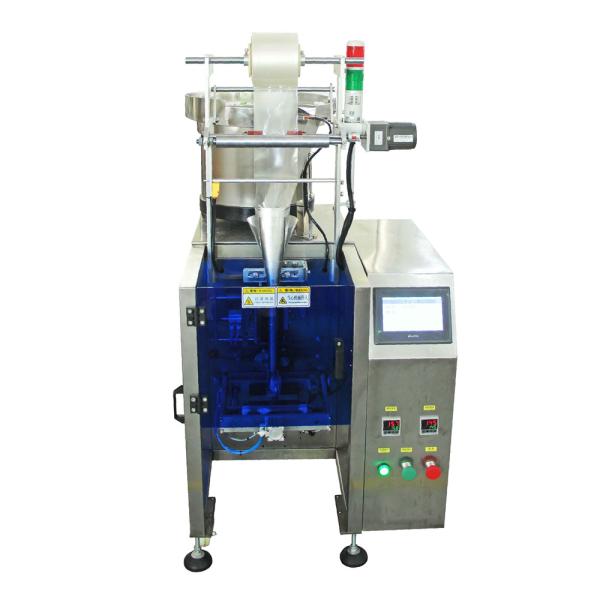

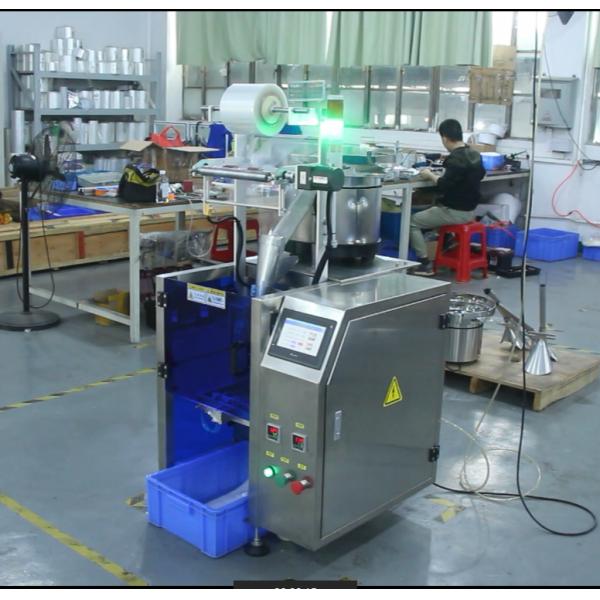

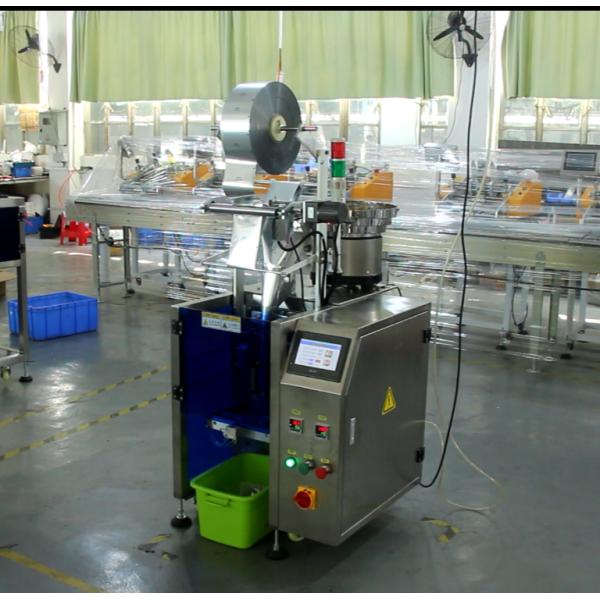

One Vibrator bowl packaging machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
Packaging machines available
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
XK-B862 Two Vibrator bowl
Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈ 0.6KW Air supply: 0.4-0.8MPA Bag mouth shape: figure cutter tooth shape Dimensions: length 1100mm/ width 1000mm/ height 1550mm Weight: about 180KG

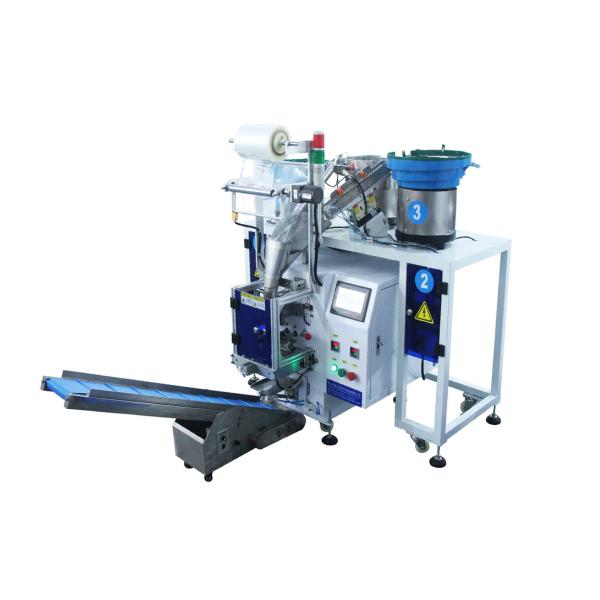

XK-B863 Three Vibrator bowl
Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (usually 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈ 0.6KW Air supply: 0.4-0.8MPA Bag's both sides : figure cutter tooth shape Dimensions: length 1420mm/ width 820mm/ height 1550mm Weight: about 250KG.
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
XK-B864 Four Vibrator bowl
Product name: Four Vibrator Bowl Packaging Machine Counting method: optical fiber counting/blocking and putting Bag size: width 40-140, length less than 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: four side seal Voltage power: 220V/50HZ P≈2KW Air supply: 0.4-0.8MPA Bag's both sides : figure cutter tooth shape Dimensions: length 1450mm/ width 980mm/ height 1700mm Weight: about 400KG

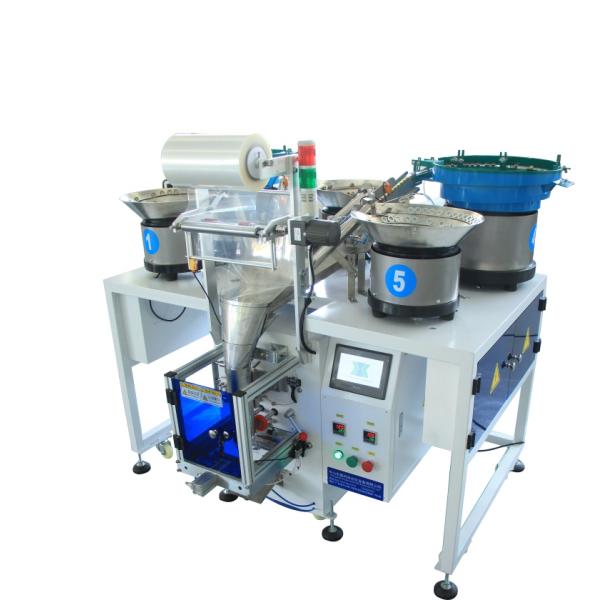

XK-B865 Five Vibrator bowl
Counting mode:optical fiber counting/stopping and discharging Bag size:width 40-140 length less than 200 (conventional 140) Packing speed:1-60 packs/min Sealing shape:stripe, back seal/three side seal (usually back seal) Voltage power:220V/50Hz P≈2KW Air source requirement:0.4-0.8Mpa Bag mouth shape:pattern knife tooth shape Dimensions: length 1350mm/ width 1500mm/ height 1550mm Weight:about 350KG
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
