China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
Specifications
Type :
Multi-Function Packaging Machine
Production Capacity :
1-60 packs/min
Applicable Industries :
Advertising Company, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock
Weight (KG) :
700
Showroom Location :
None
Condition :
New
Function :
Sealing, counting, Automatic packaging
Application :
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco, screws, nuts, plain washers, spring washers, toys, standard parts
Packaging Type :
Bags, Film, Pouch
Packaging Material :
Plastic, Paper, Metal, Glass, Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V/50HZ
Place of Origin :
Guangdong, China
Brand Name :
XingKe
Dimension(L*W*H) :
3800*1200*1550MM
Warranty :
1 years
Key Selling Points :
Easy to Operate
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC, Other, Bearing, Solenoid valve, cylinder
Product name :
6 drums mixing products packing bag packaging machine
Counting method: :
optical fiber counting/blocking and putting
Bag size :
width 40-140, length less than 200
Feature :
Easy Opperation
Advantage :
Servo Motor Control
Keyword :
Packaging Machinery Equipment
Sealing shape :
stripe, back seal/three side seal
Air supply :
0.4-0.8MPA
Bag's both sides :
figure cutter tooth shape
After-sales Service Provided :
Video Technical Support
Packaging Details :
Packed in wooden cases
Port :
guangzhou shezhen
Supply Ability :
20 Set/Sets per Month
Price :
$11,300.00/sets >=1 sets
MOQ :
1set
Delivery Time :
10-15 days
Payment Terms :
T/T / west Union/ Money gram / Credit Card
Description
Product Description

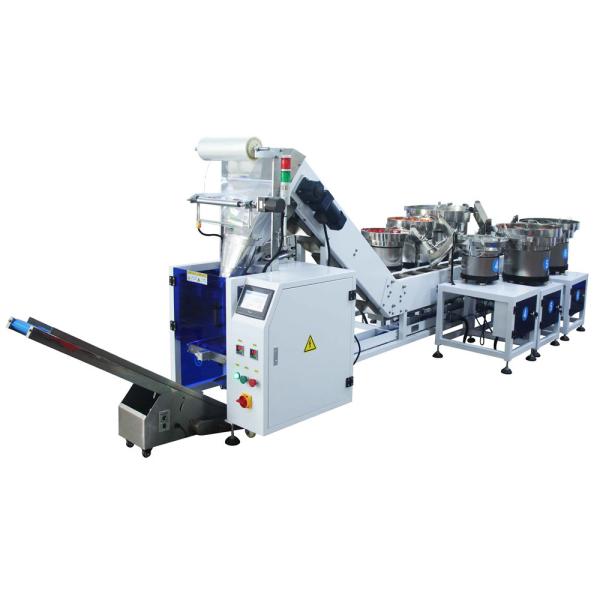

China Full Automatic Counting / Sorting Aluminum Screws Packing Machine
Equipment model
XK-B866Z
Counting method
optical fiber counting/blocking and putting
Bag size
width 40-140 length 200 (conventional 140)
Packing speed
1-60 bags/min
Sealing shape
stripe, back sealing/three side sealing (conventional back sealing)
Voltage power
220V/50HZ P≈0.6KW
Air supply
0.4-0.8MPA
Bag mouth shape
figure cutter tooth shape
Dimensions
length 3800mm/ width 1200mm/ height 1550mm
Weight
about 700KG
China Full Automatic Counting / Sorting Aluminum Screws Packing Machine


XK-B866Z(6 drums mixing products packing bag packaging machine)

1)Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting, labeling machine, conveyor and other expansion equipment. 2)Scope of application and functional features 1. This product is suitable for automatic mixing or separate packaging of less than six kinds of materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 8 drums work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.
