Specifications
Type :
Multi-Function Packaging Machine
Production Capacity :
1-60 packs/min
Applicable Industries :
Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock
Weight (KG) :
900
Showroom Location :
None
Condition :
New
Function :
FILLING, Wrapping, Labeling, Sealing, counting, Automatic packaging
Application :
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
Packaging Type :
Bags, Pouch, Three edge-sealing
Packaging Material :
Plastic, Paper, Metal, Glass, Wood, CPP
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Place of Origin :
Guangdong, China
Brand Name :
XingKe
Dimension(L*W*H) :
3850*1500*1550MM
Warranty :
1 years
Key Selling Points :
High Productivity
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC, Other, Bearing, Solenoid valve, cylinder
Width of the bag :
40-140mm
The length of the bag :
Less than 200
Air supply :
0.4-0.8MPA
Can increase the 1 :
hoist
Can increase the 2 :
Check weight said
Can increase the 3 :
Code printer
Can increase the 4 :
The cursor
After Warranty Service :
Video technical support
Warranty Service :
Spare parts
Certification :
ce
Packaging Details :
Packed in wooden cases
Port :
guangzhou shenzhen
Supply Ability :
100 Set/Sets per Month
Price :
$17,500.00/sets >=1 sets
MOQ :
1set
Delivery Time :
10-15 days
Payment Terms :
T/T / west Union/ Money gram / Credit Card
Description
Product Description
Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
Equipment model: XK-B8610T Counting mode: optical fiber counting/blocking and placing Bag making size: width 100-400, length under 450 Packaging speed: 5-15 packages/minute Sealing shape: upper and lower cylinder membrane sealing Voltage and power: 380V/50Hz P ≈ 4.0KW Weight: about 2060KG Pocket mouth shape: pattern knife tooth type Overall dimension: 7940mm long/4450mm wide/1900mm high
Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine

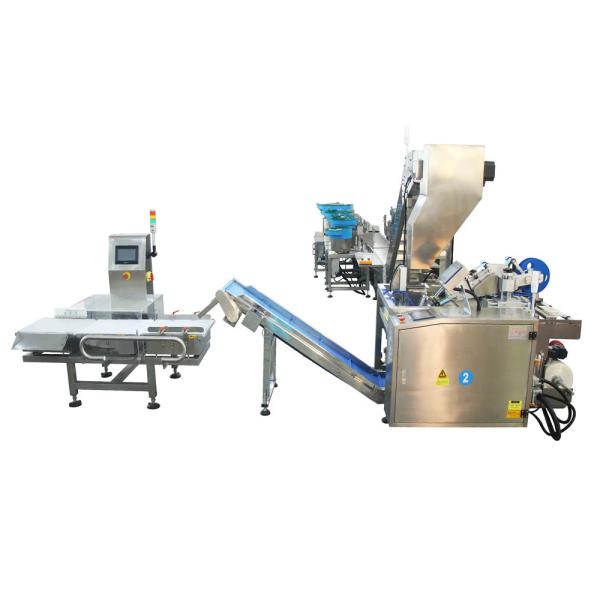

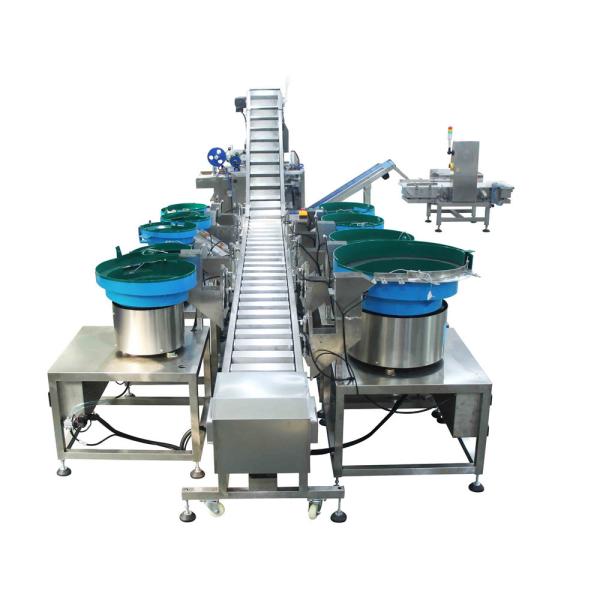

XK-B870T（10 disc chain bucket packing machine）
1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The bag is made of cylindrical membrane, without the need of a molding machine. 3. Fault self diagnosis and alarm display. 4. Man machine interface operation, simple and convenient parameter setting. 5. Use heating wire to control temperature and seal, and use pneumatic suction bag to pull the bag. 6. The transmission system is simple and clear, reliable, and easy to maintain. 7. The bag width can be changed at any time, just replace the cylinder membrane. 8. Object sensing to prevent empty bags. 9. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 10. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed.
2) Scope of application and functional characteristics 1. This product is suitable for automatic counting, feeding, mixing or separate packaging of various materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. The chain bucket climbing type is used to drive the material box to rotate, and the materials are put into the material box manually. The climbing method is used to reduce the height of the trailer. More than 10 vibrating disk stations can be added behind the trailer, which can continue to mix and automatically package materials of more specifications, The free space can also be used for manual feeding. This product is applicable to the products with large quantity and large material, which require PE material as the bag making material, and the upper and lower cylinder membrane packaging. For example, rubber particles, injection molded parts, springs, capacitors, plastic standard parts, water pipes, power cables, etc. The bag making size of this product is large, and the opening is large, so there is no need for the shaper to cut material, and it can be used for filling and packaging of products with large size and large quantity.
2. It is applicable to "PE cylinder membrane" as sealing material.
