Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Specifications
Type :
Multi-Function Packaging Machine
Production Capacity :
1-60 packs/min
Applicable Industries :
Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock
Weight (KG) :
130
Showroom Location :
None
Condition :
New
Function :
Sealing, counting, Automatic packaging
Application :
Machinery & Hardware
Packaging Type :
Bags, Three edge-sealing
Packaging Material :
Plastic, Paper, Metal, Glass, Wood, CPP
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Place of Origin :
Guangdong, China
Brand Name :
XingKe
Dimension(L*W*H) :
1700*750*1550MM
Warranty :
1 years
Key Selling Points :
High Productivity
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC, Other, Bearing, Solenoid valve, cylinder
Width of the bag :
40-140mm
The length of the bag :
Less than 200
Air supply :
0.4-0.8MPA
Can increase the 1 :
hoist
Can increase the 2 :
Check weight said
Can increase the 3 :
Code printer
Can increase the 4 :
The cursor
After Warranty Service :
Video technical support
Packaging Details :
Packed in wooden cases
Port :
guangzhou
Supply Ability :
100 Set/Sets per Month
Price :
$2,900.00/sets >=1 sets
MOQ :
1set
Delivery Time :
10-15 days
Payment Terms :
T/T / west Union/ Money gram / Credit Card
Description
Product Description
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine
Width of the bag
40-140mm
The length of the bag
Less than 200
Air supply
0.4-0.8MPA
Can increase the
hoist
Can increase the
Check weight said
Can increase the
Code printer
Can increase the
The cursor
Vertical counting chain bucket type packing machine hardware accessories packing machine manual feeding packing machine

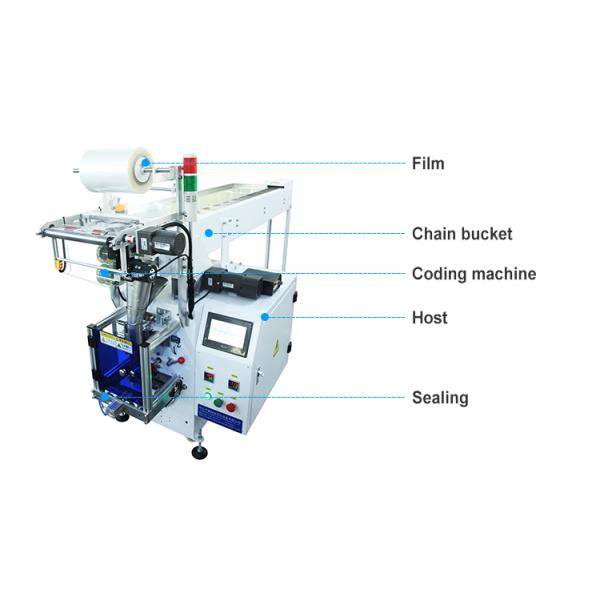

XK-B860P（Hand throw chain bucket packing machine） 1) Technical characteristics 1, Automatic filling, automatic packing, sealing function, output count. 2, Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3, The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check and reweigh, labeling machine, hoist and other expansion equipment. 2) Scope of application and functional features 1. This product is suitable for packaging of various products, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. This product uses chain bucket type to drive the material box to rotate, manually put the material into the material box, chain bucket will fill the product to the molding machine for automatic packaging. 2. It is suitable for "OPP/CPP/ composite membrane" as sealing material.
Equipment model: XK-B860T Counting method: manual placement Bag size: width 40-140 length 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back sealing/three side sealing (conventional back sealing) voltage power: 220V/50Hz P≈0.6KW Air source requirement: 0.4-0.8Mpa Bag mouth shape: pattern knife tooth shape Dimensions: length 1700mm/ width 750mm/ height 1550mm Weight: about 130KG
