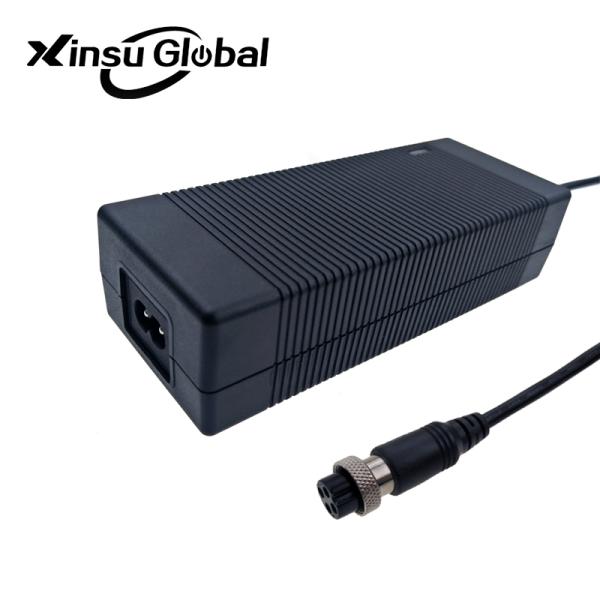

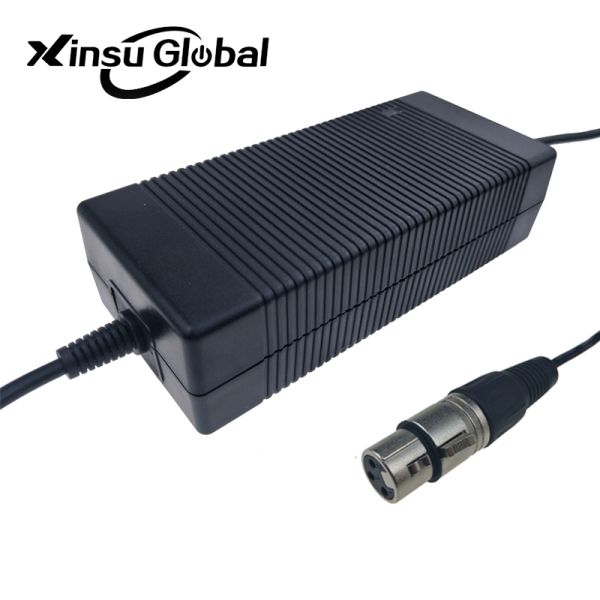

16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
Specifications
Brand Name :
XINSUGLOBAL
Model Number :
XSG5843500
Certification :
UL, cUL, FCC, PSE, CE EMC, LVD, SAA, RCM, C-tick, KC, CCC
Place of Origin :
CHINA
MOQ :
200PCS
Price :
35
Payment Terms :
T/T, Paypal
Supply Ability :
60000PCS/MONTH
Delivery Time :
20DAYS
Packaging Details :
PE bag + white box, 15PCS/CTN
Name :
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
Applications :
16 cells LiFePO4 battery pack, 51.2V LiFePO4 battery
Lead time :
20DAYS
Samples :
available
Description
Model numberXSG5843500
AC inputInput Voltage range:90～264Vac
Reted input voltage:100～240Vac
InputFrequency Range:47～62hz
Input current max:3A
Inrush current:50A Max/240V
Efficiency:87%
No load Input power<0.5W
Leakage current:<0.25mA/240V
DC outputMax charging voltage:58.4V
Output voltage tolerance:5%
Max charging current:0～3.5A
Ripple and noise:250mVp-p
Charging mode:3- stage, CC,CV,trickle charging
Cut off current when charged fullOptional
LED indicatorCharging: Red, Charged full: Green
Charging current when charged full0.1C
ProtectionOver current protectionPASS
Over voltage protection
Short circuit protection
Over Temp protection
Reverse protection
Anti-flow protection
EnvironmentOperating Temp:0℃～+45℃
Storage Temp:-30℃～+70℃
Relative Humidity:10%～90%
Vibration and shockMeet MIL-STD-810D
SafetySafety standardIEC60950,IEC62368,UL, PSE,CE,GS,LVD,
SAA,RCM,C-tick,CCC,KC
EMC/EMIMeet FCC CLASS B,EN55022 CLASS B.
EMSEN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic sourcePass
HI-pot: Primary to Secondary3KVAC,5mA,60s
Drop TestAs per UL regulation
Burning test100%,4-5 hours
LifeMTBF50000 hours
Warranty3 years


16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter

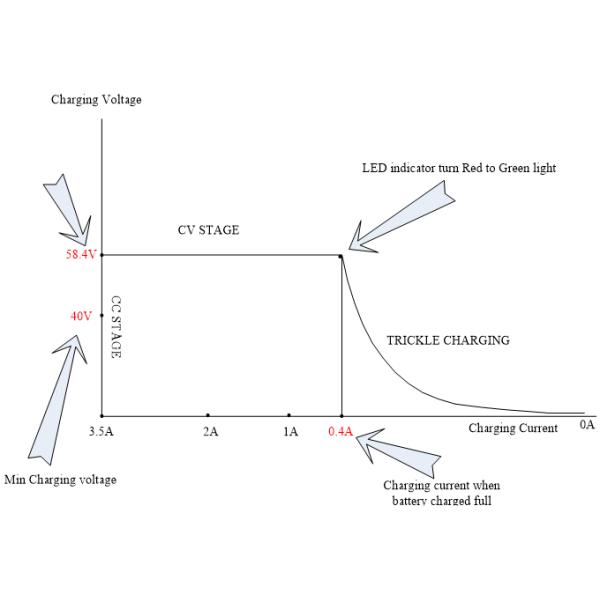

Output Curve
16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter
