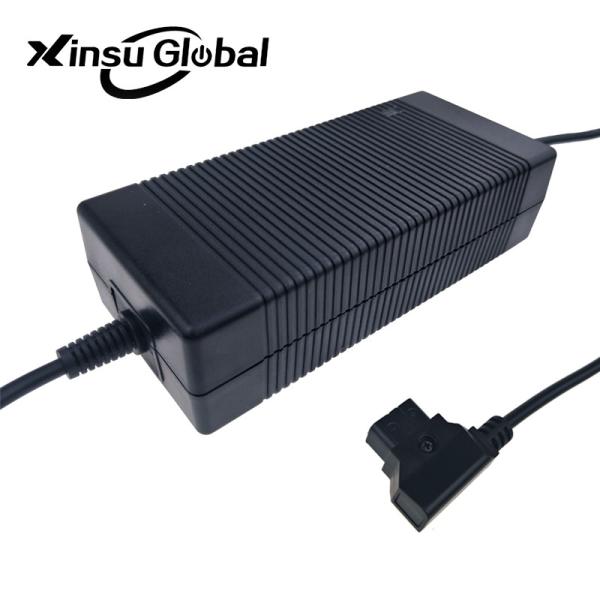

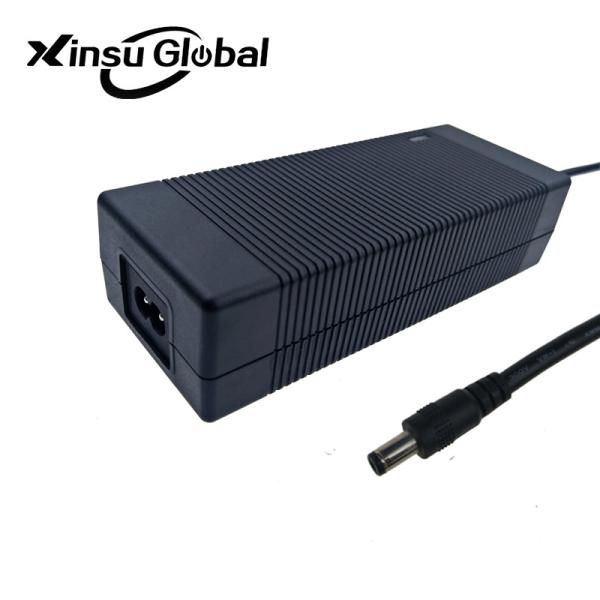

16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter

Specifications

Brand Name :

XINSUGLOBAL

Model Number :

XSG5843500

Certification :

UL, cUL, FCC, PSE, CE EMC, LVD, SAA, RCM, C-tick, KC, CCC

Place of Origin :

CHINA

MOQ :

200PCS

Price :

Payment Terms :

T/T, Paypal

Supply Ability :

60000PCS/MONTH

Delivery Time :

20DAYS

Packaging Details :

PE bag + white box, 15PCS/CTN

Name :

16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter

Applications :

16 cells LiFePO4 battery pack, 51.2V LiFePO4 battery

Lead time :

20DAYS

Samples :

available

Description

Model number	XSG5843500
AC input	Input Voltage range:	90～264Vac
	Reted input voltage:	100～240Vac
	InputFrequency Range:	47～62hz
	Input current max:	3A
	Inrush current:	50A Max/240V
	Efficiency:	87%
	No load Input power	<0.5W
	Leakage current:	<0.25mA/240V
DC output	Max charging voltage:	58.4V
	Output voltage tolerance:	5%
	Max charging current:	0～3.5A
	Ripple and noise:	250mVp-p
	Charging mode:	3- stage, CC,CV,trickle charging
	Cut off current when charged full	Optional
	LED indicator	Charging: Red, Charged full: Green
	Charging current when charged full	0.1C
Protection	Over current protection	PASS
	Over voltage protection
	Short circuit protection
	Over Temp protection
	Reverse protection
	Anti-flow protection
Environment	Operating Temp:	0℃～+45℃
	Storage Temp:	-30℃～+70℃
	Relative Humidity:	10%～90%
	Vibration and shock	Meet MIL-STD-810D
Safety	Safety standard	IEC60950,IEC62368,UL, PSE,CE,GS,LVD, SAA,RCM,C-tick,CCC,KC
	EMC/EMI	Meet FCC CLASS B,EN55022 CLASS B.
	EMS	EN61000－4－2
		EN61000－4－3
		EN61000－4－4
		EN61000－4－5
	A Harmonic source	Pass
	HI-pot: Primary to Secondary	3KVAC,5mA,60s
	Drop Test	As per UL regulation
	Burning test	100%,4-5 hours
Life	MTBF	50000 hours
Life	Warranty	3 years

16 cells 51.2V LiFePO4 battery 58.4V 3.5aA charger for electric scooter

Output Curve
