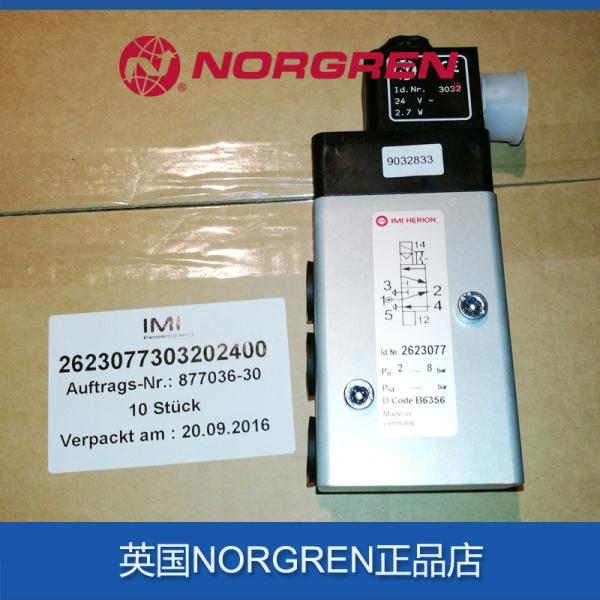

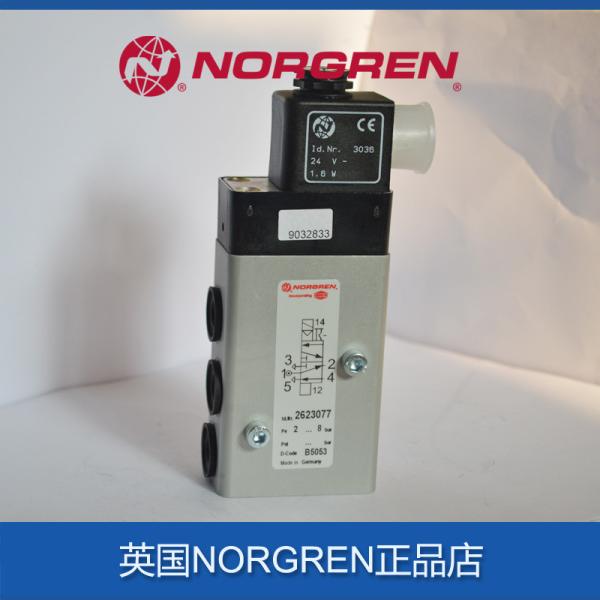

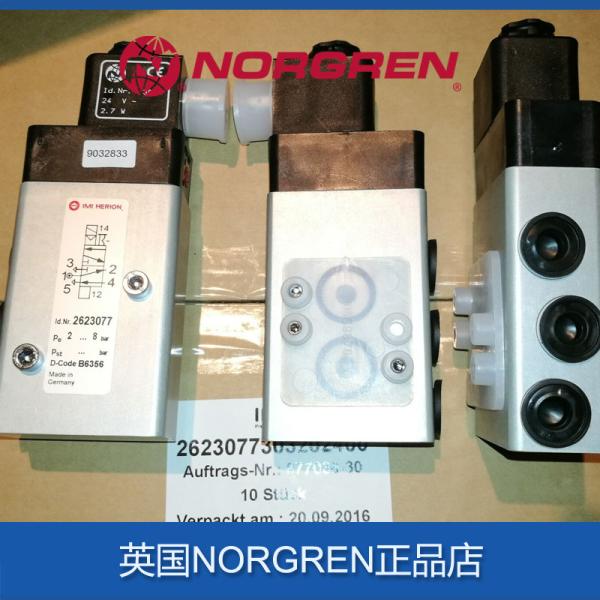

ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
Specifications
Brand Name :
NORGREN
Model Number :
26220, 26230, 80107,2623077
Place of Origin :
Germany
MOQ :
1
Price :
50-80
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500pcs/week
Packaging Details :
Original NORGREN
Brand :
NORGREN
Temperature :
: -10* °C to 50 °C
Material :
eat seal: NBR (Perbunan)
Operating pressure :
: 2 to 8 bar
Actuation: :
Solenoid operated, indirectly controlled
Description

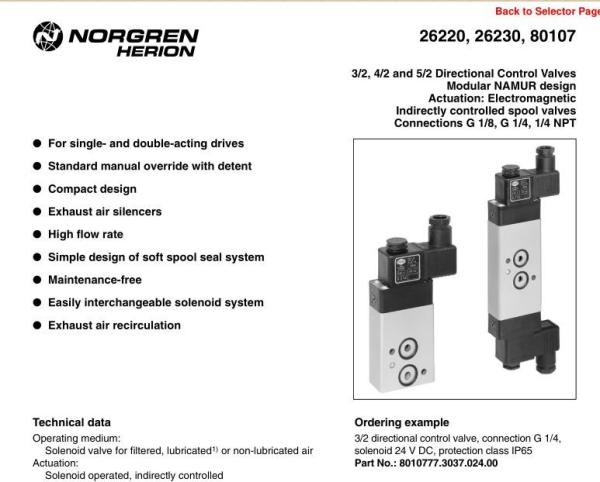

3/2, 4/2 and 5/2 Directional Control Valves Modular NAMUR design Actuation: Electromagnetic Indirectly controlled spool valves Connections G 1/8, G 1/4, 1/4 NPT.

● For single- and double-acting drives ● Standard manual override with detent ● Compact design ● Exhaust air silencers ● High flow rate ● Simple design of soft spool seal system ● Maintenance-free ● Easily interchangeable solenoid system ● Exhaust air recirculation

ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate

● For single- and double-acting drives

● Standard manual override with detent

● Compact design

● Exhaust air silencers

● High flow rate

● Simple design of soft spool seal system

● Maintenance-free

● Easily interchangeable solenoid system

● Exhaust air recirculation

Technical data Operating medium: Solenoid valve for filtered, lubricated1) or non-lubricated air.

Actuation: Solenoid operated, indirectly controlled Flow direction: Fixed Mounting position:

Optional, preferably with solenoid on top .

Nominal size: 4 and 6 .

Port size: G 1/8, G 1/4, 1/4 NPT.

Electrical connection: Connector interface to DIN 43650 form A and B .

Operating pressure: 2 to 8 bar .

Temperature: -10* °C to 50 °C *With minus temperatures, use conditioned dry air.

If installed in the open protect all connections against the penetration of moisture! Current draw: < 2 W standard .

Material: Housing: Aluminium Pilot flange: Plastic Seat seal: NBR (Perbunan

ORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rateORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rateORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rateORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rateORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rateORIGINAL NEW NORGREN Norgren solenoid valve 26220, 26230, 80107,2623077 NAMUR ,High flow rate
