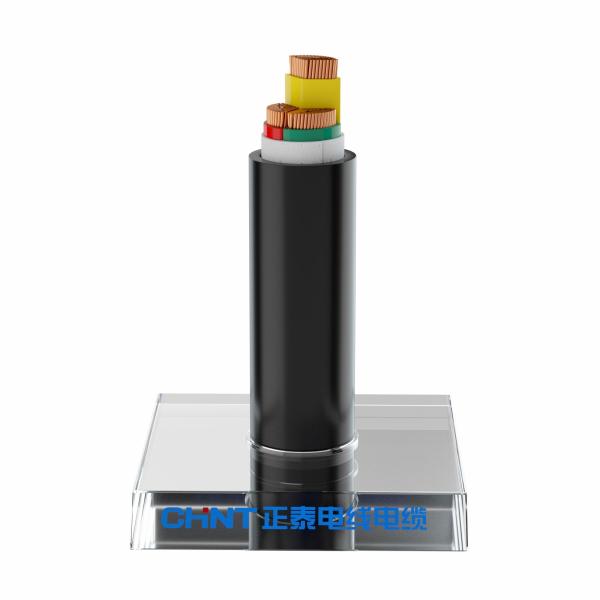

Underground Flame Retardant Electrical 3 Core XLPE Power Cable
Underground Flame Retardant Electrical 3 Core XLPE Power Cable
Specifications
Brand Name :
CHINT
Model Number :
CU/XLPE/PVC POWER CABLE
Certification :
KEMA/CE/SGS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
1000KM/Month
Packaging Details :
iron with wooden or wood or iron
Name :
XLPE Power Cable​
Application :
Underground
Standard :
GB/T12706.1 or IEC60502.1
Conductor shape :
compacted round or sector
Core :
3 Core
Conductor :
class 1or 2
Description

Underground Flame Retardant Electrical 3 Core XLPE Power Cable​

XLPE Power Cable​ Applicable Standards

—IEC 60502-1 Design and Test Guidelines
—IEC 60228 Conductor
—IEC 60332-1 Flame Retardant
—IEC 60332-3-24 Flame Retardant Cat. C

Technical data

Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Detailed Product Description

Conductor : Plain annealed copper solid or stranded (class 1 or 2) conductor complying with IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 , according to IEC 60502, black

Note:

Insulation identification as per standards or customer requirement

Technical Specifications

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×25 7/2.10 0.9 1.4 10.9 292 0.727 3.5 130 155
1×35 7/2.48 0.9 1.4 12.0 389 0.524 3.5 160 185
1×50 10/2.56 1.0 1.4 13.2 514 0.387 3.5 195 220
1×70 14/2.56 1.1 1.4 15.1 716 0.268 3.5 245 270
1×95 19/2.56 1.1 1.5 16.9 969 0.193 3.5 300 320
1×120 24/2.56 1.2 1.5 18.6 1,203 0.153 3.5 349 365
1×150 30/2.56 1.4 1.6 20.6 1,479 0.124 3.5 400 410
1×185 37/2.56 1.6 1.6 22.7 1,853 0.0991 3.5 465 465
1×240 48/2.58 1.7 1.7 25.3 2,408 0.0754 3.5 550 540
1×300 60/2.58 1.8 1.8 27.9 2,988 0.0601 3.5 635 610
1×400 60/2.93 2.0 1.9 31.5 3,860 0.047 3.5 745 695
1×500 60/3.33 2.2 2 35.2 4,840 0.0366 3.5 860 780
1×630 60/3.76 2.4 2.2 39.4 6,182 0.0283 3.5 990 880
2×1.5 1/1.38 0.7 1.8 9.5 106 12.1 3.5 20 31
2×2.5 1/1.76 0.7 1.8 10.3 133 7.56 3.5 27 41
2×4 1/2.23 0.7 1.8 11.2 172 4.61 3.5 35 53
2×6 1/2.74 0.7 1.8 12.2 221 3.08 3.5 45 66
2×10 7/1.33 0.7 1.8 14.7 328 1.83 3.5 63 90
2×16 7/1.67 0.7 1.8 16.7 460 1.15 3.5 84 117
2×25 7/2.10 0.9 1.8 20.1 683 0.727 3.5 113 151
2×35 7/2.48 0.9 1.8 22.4 900 0.524 3.5 139 181
2×50 10/2.56 1.0 1.8 19.0 1,037 0.387 3.5 161 210
2×70 14/2.56 1.1 1.8 21.8 1,446 0.268 3.5 204 257
2×95 19/2.56 1.1 2 24.7 1,967 0.193 3.5 252 310
2×120 24/2.56 1.2 2.1 27.1 2,444 0.153 3.5 291 351
2×150 30/2.56 1.4 2.2 30.3 3,008 0.124 3.5 333 393
2×185 37/2.56 1.6 2.3 33.5 3,772 0.0991 3.5 385 445
2×240 48/2.56 1.7 2.5 37.7 4,909 0.0754 3.5 457 516
2×300 60/2.56 1.8 2.7 41.4 6,090 0.0601 3.5 527 583
3×1.5 1/1.38 0.7 1.8 9.9 127 12.1 3.5 20 31
3×2.5 1/1.76 0.7 1.8 10.7 163 7.56 3.5 27 41
3×4 1/2.23 0.7 1.8 11.8 216 4.61 3.5 35 53
3×6 1/2.74 0.7 1.8 12.9 285 3.08 3.5 45 66
3×10 7/1.33 0.7 1.8 15.6 429 1.83 3.5 63 90
3×16 7/1.67 0.7 1.8 17.7 613 1.15 3.5 84 117
3×25 7/2.10 0.9 1.8 21.4 923 0.727 3.5 113 151
3×35 7/2.48 0.9 1.8 23.8 1,229 0.524 3.5 139 181
3×50 10/2.56 1.0 1.8 22.5 1,517 0.387 3.5 161 210
3×70 14/2.56 1.1 1.9 26.1 2,133 0.268 3.5 204 257
3×95 19/2.56 1.1 2 29.3 2,891 0.193 3.5 252 310
3×120 24/2.56 1.2 2.1 32.3 3,600 0.153 3.5 291 351
3×150 30/2.56 1.4 2.3 36.1 4,440 0.124 3.5 333 393
3×185 37/2.56 1.6 2.4 40.1 5,579 0.0991 3.5 385 445
3×240 48/2.56 1.7 2.6 45.5 7,288 0.0754 3.5 457 516
3×300 60/2.56 1.8 2.8 50.0 9,045 0.0601 3.5 527 583
4×1.5 1/1.38 0.7 1.8 10.7 152 12.1 3.5 20 31
4×2.5 1/1.76 0.7 1.8 11.6 199 7.56 3.5 27 41
4×4 1/2.23 0.7 1.8 12.7 267 4.61 3.5 35 53
4×6 1/2.74 0.7 1.8 13.9 356 3.08 3.5 45 66
4×10 7/1.33 0.7 1.8 17.0 542 1.83 3.5 63 90
4×16 7/1.67 0.7 1.8 19.4 782 1.15 3.5 84 117
4×25 7/2.10 0.9 1.8 23.5 1,185 0.727 3.5 113 151
4×35 7/2.48 0.9 1.8 26.3 1,586 0.524 3.5 139 181
4×50 10/2.56 1.0 1.9 25.5 1,999 0.387 3.5 161 210
4×70 14/2.56 1.1 2 29.4 2,810 0.268 3.5 204 257
4×95 19/2.56 1.1 2.1 33.5 3,823 0.193 3.5 252 310
4×120 24/2.56 1.2 2.3 37.2 4,783 0.153 3.5 291 351
4×150 30/2.56 1.4 2.4 41.3 5,879 0.124 3.5 333 393
4×185 37/2.56 1.6 2.6 46.5 7,434 0.0991 3.5 385 445
4×240 48/2.56 1.7 2.8 52.7 9,701 0.0754 3.5 457 516
4×300 60/2.56 1.8 3 57.9 12,030 0.0601 3.5 527 583
5×1.5 1/1.38 0.7 1.8 11.5 179 12.1 3.5 20 31
5×2.5 1/1.76 0.7 1.8 12.5 236 7.56 3.5 27 41
5×4 1/2.23 0.7 1.8 13.8 321 4.61 3.5 35 53
5×6 1/2.74 0.7 1.8 15.2 430 3.08 3.5 45 66
5×10 7/1.33 0.7 1.8 18.6 659 1.83 3.5 63 90
5×16 7/1.67 0.7 1.8 21.3 957 1.15 3.5 84 117
5×25 7/2.10 0.9 1.8 25.9 1,456 0.727 3.5 113 151
5×35 7/2.48 0.9 1.8 28.9 1,955 0.524 3.5 139 181
5×50 19/1.86 1.0 2 28.9 2,502 0.387 3.5 161 210
5×70 14/2.56 1.1 2.1 33.6 3,525 0.268 3.5 204 257
5×95 19/2.56 1.1 2.3 38.2 4,798 0.193 3.5 252 310
5×120 24/2.56 1.2 2.4 42.3 5,990 0.153 3.5 291 351
5×150 30/2.56 1.4 2.6 47.3 7,393 0.124 3.5 333 393
5×185 37/2.56 1.6 2.8 52.6 9,312 0.0991 3.5 385 445
5×240 48/2.56 1.7 3 59.5 12,137 0.0754 3.5 457 516
5×300 60/2.56 1.8 3.2 65.6 15,064 0.0601 3.5 527 583
3×2.5+1×1.5 1/1.76 0.7 1.8 11.3 187 7.56 3.5 27 41
3×4+1×2.5 1/2.23 0.7 1.8 12.4 250 4.61 3.5 35 53
3×6+1×4 1/2.74 0.7 1.8 13.6 334 3.08 3.5 45 66
3×10+1×6 7/1.33 0.7 1.8 16.2 494 1.83 3.5 63 90
3×16+1×10 7/1.67 0.7 1.8 18.8 721 1.15 3.5 84 117
3×25+1×16 7/2.10 0.9 1.8 22.5 1,083 0.727 3.5 113 151
3×35+1×16 7/2.48 0.9 1.8 24.6 1,382 0.524 3.5 139 181
3×50+1×25 10/2.56 1.0 1.8 24.9 1,787 0.387 3.5 161 210
3×70+1×35 14/2.56 1.1 1.9 29.2 2,515 0.268 3.5 204 257
3×95+1×50 19/2.56 1.1 2.1 33.2 3,421 0.193 3.5 252 310
3×120+1×70 24/2.56 1.2 2.2 36.8 4,339 0.153 3.5 291 351
3×150+1×70 30/2.56 1.4 2.3 40.4 5,180 0.124 3.5 333 393
3×185+1×95 37/2.56 1.6 2.5 45.5 6,621 0.0991 3.5 385 445
3×240+1×120 48/2.56 1.7 2.7 51.1 8,567 0.0754 3.5 457 516
3×300+1×150 60/2.56 1.8 2.9 56.5 10,624 0.0601 3.5 527 583
3×2.5+2×1.5 1/1.76 0.7 1.8 12.1 213 7.56 3.5 27 41
3×4+2×2.5 1/2.23 0.7 1.8 13.3 287 4.61 3.5 35 53
3×6+2×4 1/2.74 0.7 1.8 14.6 386 3.08 3.5 45 66
3×10+2×6 7/1.33 0.7 1.8 17.2 566 1.83 3.5 63 90
3×16+2×10 7/1.67 0.7 1.8 20.2 837 1.15 3.5 84 117
3×25+2×16 7/2.10 0.9 1.8 24.0 1,254 0.727 3.5 113 151
3×35+2×16 7/2.48 0.9 1.8 25.9 1,550 0.524 3.5 139 181
3×50+2×25 10/2.56 1.0 1.9 26.2 2,040 0.387 3.5 161 210
3×70+2×35 14/2.56 1.1 2 30.2 2,852 0.268 3.5 204 257
3×95+2×50 19/2.56 1.1 2.2 34.3 3,874 0.193 3.5 252 310
3×120+2×70 24/2.56 1.2 2.3 37.9 4,970 0.153 3.5 291 351
3×150+2×70 30/2.56 1.4 2.4 42.3 5,849 0.124 3.5 333 393
3×185+2×95 37/2.56 1.6 2.6 47.7 7,533 0.0991 3.5 385 445
3×240+2×120 48/2.56 1.7 2.8 53.6 9,715 0.0754 3.5 457 516
3×300+2×150 60/2.56 1.8 3 59.7 12,057 0.0601 3.5 527 583
4×2.5+1×1.5 1/1.76 0.7 1.8 12.3 225 7.56 3.5 27 41
4×4+1×2.5 1/2.23 0.7 1.8 13.6 304 4.61 3.5 35 53
4×6+1×4 1/2.74 0.7 1.8 14.9 408 3.08 3.5 45 66
4×10+1×6 7/1.33 0.7 1.8 17.9 612 1.83 3.5 63 90
4×16+1×10 7/1.67 0.7 1.8 20.7 897 1.15 3.5 84 117
4×25+1×16 7/2.10 0.9 1.8 24.9 1,355 0.727 3.5 113 151
4×35+1×16 7/2.48 0.9 1.8 27.4 1,752 0.524 3.5 139 181
4×50+1×25 10/2.56 1.0 1.9 26.6 2,241 0.387 3.5 161 210
4×70+1×35 14/2.56 1.1 2.1 30.8 3,159 0.268 3.5 204 257
4×95+1×50 19/2.56 1.1 2.2 34.7 4,278 0.193 3.5 252 310
4×120+1×70 24/2.56 1.2 2.4 38.7 5,431 0.153 3.5 291 351
4×150+1×70 30/2.56 1.4 2.5 43.5 6,571 0.124 3.5 333 393
4×185+1×95 37/2.56 1.6 2.7 48.3 8,340 0.0991 3.5 385 445
4×240+1×120 48/2.56 1.7 2.9 54.9 10,838 0.0754 3.5 457 516
4×300+1×150 60/2.56 1.8 3.1 60.6 13,443 0.0601 3.5 527 583

PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
