Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
Specifications
Brand Name :
CHINT
Model Number :
YJV 26KV 3core
Certification :
KEMA/CE/SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
1000KM/Month
Packaging Details :
iron with wooden or wood or iron
Name :
XLPE Power Cable
Rated Voltage :
26KV
core :
3core
Cross section :
35sqmm-630sqmm
Feature :
Flame Retardant
Standard :
IEC60502, IEC60228 HD620S1
Description

Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion

XLPE Power Cable Applications

XLPE Power Cable are used for electricity supply in low voltage installation system, XLPE Power Cable are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

XLPE Power Cable Details

Note:

Insulation identification as per standards or customer requirement

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,VDE and ICEA upon request

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC type ST2 to IEC 60502, black

Technical data

Rated voltage: 16 kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

XLPE Power Cable Technical Specifications

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Thickness of Copper Strip Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×50 19/1.86+0.01 8.0 0.12 2.0 33.4 1368 0.387 72 245 225
1×70 14/2.56+0.01 8.0 0.12 2.0 35.1 1625 0.268 72 305 275
1×95 19/2.56+0.02 8.0 0.12 2.1 36.9 1943 0.193 72 370 330
1×120 24/2.56+0.02 8.0 0.12 2.1 38.4 2223 0.153 72 425 375
1×150 30/2.56+0.01 8.0 0.12 2.2 40.0 2543 0.124 72 485 420
1×185 37/2.56+0.02 8.0 0.12 2.2 41.8 2964 0.0991 72 555 475
1×240 48/2.58+0.02 8.0 0.12 2.3 44.2 3592 0.0754 72 650 555
1×300 60/2.58+0.02 8.0 0.12 2.4 46.6 4245 0.0601 72 745 630
1×400 60/2.93+0.02 8.0 0.12 2.5 49.7 5199 0.047 72 870 720
1×500 60/3.33+0.02 8.0 0.12 2.6 53.1 6267 0.0366 72 1000 825
1×630 60/3.76+0.02 8.0 0.12 2.7 56.7 7685 0.0283 72 1160 940
3×50 19/1.86+0.01 8.0 0.10 3.1 69.4 4789 0.387 72 185 200
3×70 14/2.56+0.01 8.0 0.10 3.2 73.3 5664 0.268 72 230 250
3×95 19/2.56+0.02 8.0 0.10 3.3 76.9 6679 0.193 72 280 300
3×120 24/2.56+0.02 8.0 0.10 3.5 80.6 7659 0.153 72 310 330
3×150 30/2.56+0.01 8.0 0.10 3.6 83.8 8677 0.124 72 360 380
3×185 37/2.56+0.02 8.0 0.10 3.7 87.9 10076 0.0991 72 400 425
3×240 48/2.58+0.02 8.0 0.10 3.8 92.8 12073 0.0754 72 470 490
3×300 60/2.58+0.02 8.0 0.10 4.0 97.9 14188 0.0601 72 540 555
3×400 60/2.93+0.02 8.0 0.10 4.2 104.6 17261 0.047 72 610 625

Ordering Advice

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

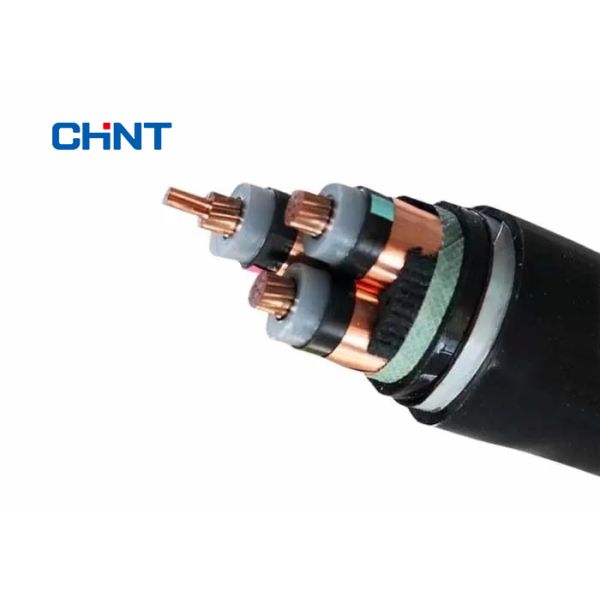

XLPE Power Cable Picture

Flame Retardant XLPE Power Cable PVC Sheathed Indoors And Outdoors Co Extrusion
