XLPE Insulation Solar PV Cable
XLPE Insulation Solar PV Cable
XLPE Insulation Solar PV Cable
XLPE Insulation Solar PV Cable
XLPE Insulation Solar PV Cable
XLPE Insulation Solar PV Cable
Specifications
Brand Name :
CHINT
Model Number :
H1Z2Z2-K
Certification :
TUV
Place of Origin :
China
MOQ :
2000m
Price :
0.3~0.7USD/m
Supply Ability :
60000km per month

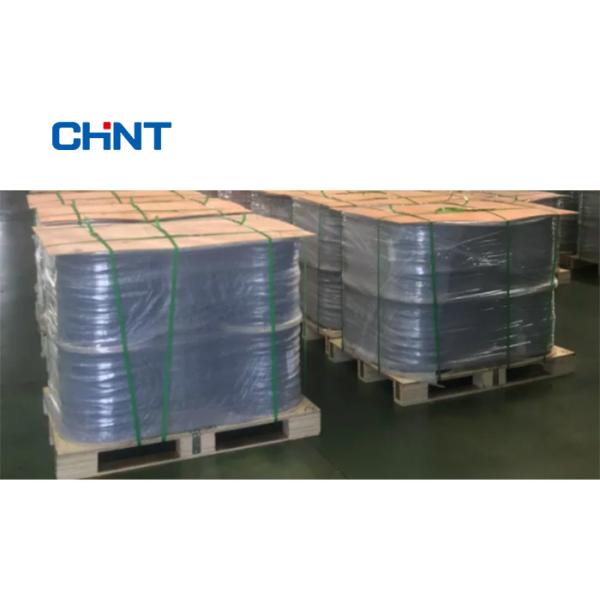

Packaging Details :
wooden or polywooden drum or rolls
condutor :
tinned anneal copper
insulation :
XLPE/XLPO
material color :
black or red
Rated voltage :
1500 VDC
Application :
Solar power system
Description

Tinned Flexible Conductor XLPE/XLPO Cable With TUV Certiifcate

Producton discription

Chint cable has gotten TUV certificate with solar cable which designed by EN50618 standard. this kind of cable with

25 years old and UV resistant.we have exported this kind cable to many countries ,eg. Australia Brazil

XLPE Insulation Solar PV Cable

Product Specification:

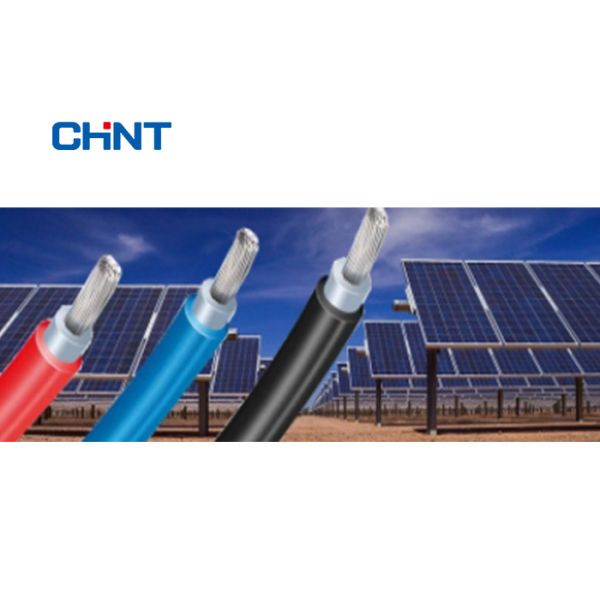

Product name:solar cable

Conductor Material:copper

Rated voltage:1500 VDC

Core:Single Core,Double Core,or Multi Core

Color:Red,Black

Jacket Material:XLPE

Temperature range:-40℃~90℃

Data sheet

Cross Section

(mm²)

Conductor Construction

(n/mm)

Conductor

OD(mm)

Cable

OD(mm)

Insulation

Min.Wall

Thickness(mm)

Sheath

Min.Wall

Thickness(mm)

Current Araaing

Capacity AT

60°C(A)
1.5 TXR30/0.25 1.58 4.90 0.67 0.73 30
2.5 TXR50/0.25 2.02 5.45 0.67 0.73 41
4 TXR56/0.30 2.60 6.10 0.67 0.73 55
6 TXR84/0.30 3.42 7.20 0.8 0.80 70

Application:

Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions.Solar power system, PV,solar eara.

Advantage:

·Dual wall insulation.Electron beam cross-linked

·Excellent resistance to U.V,oil,greases,oxygen and ozone

·Excellent resistance to abrasion

·Halogen free, flame retardant,low toxicity

·Excellent flexibility and stripping performance

·High Voltage and Current carring capacity

XLPE Insulation Solar PV Cable

XLPE Insulation Solar PV Cable
