Application

Used in transformer stations, switching blocks, in electric power plants and industrial plants.

Medium voltage power cable for static application in ground, within and outside facilities, outdoor,

in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress

and tensile strain.

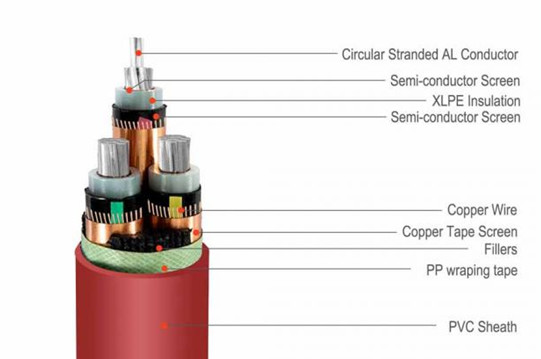

Construction

Technical data

- Power cable according to DIN VDE 0276 part 603, HD 620, IEC 60502, BS 6622
- Temperature range max. to +90 °C
- Temperature during installation from 0 °C to +70 °C
- Short circuit temperature +250 °C (up to 5 seconds)
- Nominal voltage Uo/U 3,6/6 kV, 6/10 kV, 6,35/11 kV (dle BS), 18/30 kV, 19/33 kV (dle BS)
- Operating voltages 3,6/6 kV = max. 7,2 kV 6/10 kV = max. 12 kV 18/30 kV = max. 36 kV
- Test voltage a.c. 3,6/6 kV = 11 kV up to 5 min. 6/10 kV = 21 kV up to 5 min. 18/30 kV = 63 kV

up to 5 min.
- Minimum bending radius approx. 15[1] cable diameter

PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable. After the well packed cable

drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum

are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the

container is chosed according to weight of total loaded goods or as per the client's requirement.
