Specifications
Brand Name :
CHINT
Model Number :
FR-CU/XLPE/PVC(LSOH)
Certification :
CE/SGS/ISO/KEMA
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100km per month
Packaging Details :
wooden drum or iron *wooden drum
function :
fire resistant or fire proof
fire resistant layer :
mica tape overlapped wrapped on conductor
insulation :
XLPE
sheath :
PVC or LSOH
marking :
printing or embossing
package :
wooden drum or iron-wooden drum
core color :
red yellow green blue or black or yellow/green
sheath color :
black or red
Description

Cable decription

1.1What is FR Cable

The typical structure of refractory cable is the cable with an additional refractory layer between conductor and insulation. This structure enables the cable to withstand 750 C, 90 minutes of fire resistance test.

1.2 Benefits of FR Cable

In fire accidents, fire-resistant cables can operate normally in a certain period of time.

While maintaining the integrity of power lines and the normal operation of safety equipment, fire-proof cables have won valuable time for personnel evacuation.

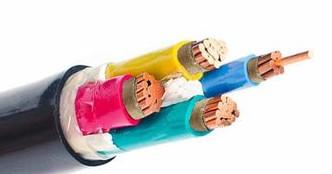

Construction

Conductor : Plain annealed copper solid or stranded (class 1 or 2) conductor complying with BS EN 60228

Refractory layer:Double-layer phlogopite belt

Insulation : 90°C cross linked XLPE insulation complying with BS7655 Type GP8

Sheath : PVC. Colour – Black. Other colours are available to special order

Standards:

International: IEC 60502, IEC 60228, IEC 60332, IEC 60754

China: GB∕T 12706.1-2008, GB∕T 19666-2005

Other standards such as BS,VDE and ICEA upon request

Applications

Laying in room ,tunnel ,cable trench ,and pipes.

Technical Specifications

Rated voltage: 0.6/1kv

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Technical data sheet

Nom. Cross-section of conductor Strands No./Dia. Of Conductor

Refractory

layer

Thickness

Insulation

Thickness

 Sheath Thickness

Approx.

O.D.

 Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight In air (A) In soil(A)
1×1.5 1/1.38 0.28 0.7 1.4 5.8 47 12.1 3.5 26 33
1×2.5 1/1.76 0.28 0.7 1.4 6.2 59 7.56 3.5 34 43
1×4 1/2.23 0.28 0.7 1.4 6.6 76 4.61 3.5 44 56
1×6 1/2.74 0.28 0.7 1.4 7.2 99 3.08 3.5 56 70
1×10 7/1.38 0.28 0.7 1.4 8.4 143 1.83 3.5 77 94
1×16 7/1.71 0.28 0.7 1.4 9.4 202 1.15 3.5 100 120
1×25 7/2.12 0.28 0.9 1.4 11.1 301 0.727 3.5 130 155
1×35 7/2.48 0.28 0.9 1.4 11.9 395 0.524 3.5 160 185
1×50 10/2.56 0.28 1 1.4 13.5 527 0.387 3.5 195 220
1×70 14/2.56 0.28 1.1 1.4 15.4 731 0.268 3.5 245 270
1×95 19/2.56 0.28 1.1 1.5 17.2 987 0.193 3.5 300 320
1×120 24/2.56 0.28 1.2 1.5 18.9 1,223 0.153 3.5 349 365
1×150 30/2.56 0.28 1.4 1.6 20.9 1,502 0.124 3.5 400 410
1×185 37/2.56 0.28 1.6 1.6 23.1 1,879 0.0991 3.5 465 465
1×240 48/2.58 0.28 1.7 1.7 25.7 2,439 0.0754 3.5 550 540
1×300 60/2.58 0.28 1.8 1.8 28.2 3,023 0.0601 3.5 635 610
1×400 60/2.93 0.28 2 1.9 31.8 3,901 0.047 3.5 745 695
1×500 60/3.33 0.28 2.2 2 35.9 4,893 0.0366 3.5 860 780
1×630 60/3.76 0.28 2.4 2.2 40.1 6,246 0.0283 3.5 990 880
2×1.5 1/1.38 0.28 0.7 1.8 9.6 119 12.1 3.5 20 31
2×2.5 1/1.76 0.28 0.7 1.8 10.4 148 7.56 3.5 27 41
2×4 1/2.23 0.28 0.7 1.8 11.3 189 4.61 3.5 35 53
2×6 1/2.74 0.28 0.7 1.8 12.4 245 3.08 3.5 45 66
2×10 7/1.38 0.28 0.7 1.8 14.8 355 1.83 3.5 63 90
2×16 7/1.71 0.28 0.7 1.8 16.8 496 1.15 3.5 84 117
2×25 7/2.12 0.28 0.9 1.8 20.2 736 0.727 3.5 113 151
2×35 7/2.48 0.28 0.9 1.8 21.7 947 0.524 3.5 139 181
2×50 10/2.56 0.28 1 1.8 25.0 1,263 0.387 3.5 161 210
2×70 14/2.56 0.28 1.1 1.8 28.8 1,741 0.268 3.5 204 257
2×95 19/2.56 0.28 1.1 2 32.4 2,334 0.193 3.5 252 310
2×120 24/2.56 0.28 1.2 2.1 36.0 2,901 0.153 3.5 291 351
2×150 30/2.56 0.28 1.4 2.2 39.8 3,554 0.124 3.5 333 393
2×185 37/2.56 0.28 1.6 2.3 44.4 4,456 0.0991 3.5 385 445
2×240 48/2.58 0.28 1.7 2.5 49.6 5,794 0.0754 3.5 457 516
2×300 60/2.58 0.28 1.8 2.7 54.6 7,156 0.0601 3.5 527 583
3×1.5 1/1.38 0.28 0.7 1.8 10.0 140 12.1 3.5 20 31
3×2.5 1/1.76 0.28 0.7 1.8 10.9 178 7.56 3.5 27 41
3×4 1/2.23 0.28 0.7 1.8 11.9 233 4.61 3.5 35 53
3×6 1/2.74 0.28 0.7 1.8 13.1 308 3.08 3.5 45 66
3×10 7/1.38 0.28 0.7 1.8 15.7 454 1.83 3.5 63 90
3×16 7/1.71 0.28 0.7 1.8 17.9 647 1.15 3.5 84 117
3×25 7/2.12 0.28 0.9 1.8 21.5 971 0.727 3.5 113 151
3×35 7/2.48 0.28 0.9 1.8 23.1 1,270 0.524 3.5 139 181
3×50 10/2.56 0.28 1 1.8 26.7 1,702 0.387 3.5 161 210
3×70 14/2.56 0.28 1.1 1.9 31.0 2,379 0.268 3.5 204 257
3×95 19/2.56 0.28 1.1 2 34.7 3,191 0.193 3.5 252 310
3×120 24/2.56 0.28 1.2 2.1 38.5 3,975 0.153 3.5 291 351
3×150 30/2.56 0.28 1.4 2.3 42.8 4,896 0.124 3.5 333 393
3×185 37/2.56 0.28 1.6 2.4 47.8 6,187 0.0991 3.5 385 445
3×240 48/2.58 0.28 1.7 2.6 53.4 8,007 0.0754 3.5 457 516
3×300 60/2.58 0.28 1.8 2.8 58.7 9,911 0.0601 3.5 527 583
4×1.5 1/1.38 0.28 0.7 1.8 10.8 166 12.1 3.5 20 31
4×2.5 1/1.76 0.28 0.7 1.8 11.8 216 7.56 3.5 27 41
4×4 1/2.23 0.28 0.7 1.8 12.9 286 4.61 3.5 35 53
4×6 1/2.74 0.28 0.7 1.8 14.3 382 3.08 3.5 45 66
4×10 7/1.38 0.28 0.7 1.8 17.1 570 1.83 3.5 63 90
4×16 7/1.71 0.28 0.7 1.8 19.6 819 1.15 3.5 84 117
4×25 7/2.12 0.28 0.9 1.8 23.7 1,238 0.727 3.5 113 151
4×35 7/2.48 0.28 0.9 1.8 25.5 1,631 0.524 3.5 139 181
4×50 10/2.56 0.28 1 1.9 29.7 2,205 0.387 3.5 161 210
4×70 14/2.56 0.28 1.1 2 34.5 3,088 0.268 3.5 204 257
4×95 19/2.56 0.28 1.1 2.1 38.6 4,151 0.193 3.5 252 310
4×120 24/2.56 0.28 1.2 2.3 43.1 5,195 0.153 3.5 291 351
4×150 30/2.56 0.28 1.4 2.4 47.6 6,411 0.124 3.5 333 393
4×185 37/2.56 0.28 1.6 2.6 53.4 8,077 0.0991 3.5 385 445
4×240 48/2.58 0.28 1.7 2.8 59.6 10,460 0.0754 3.5 457 516
4×300 60/2.58 0.28 1.8 3 65.5 12,950 0.0601 3.5 527 583
5×1.5 1/1.38 0.28 0.7 1.8 11.6 195 12.1 3.5 20 31
5×2.5 1/1.76 0.28 0.7 1.8 12.7 256 7.56 3.5 27 41
5×4 1/2.23 0.28 0.7 1.8 13.9 343 4.61 3.5 35 53
5×6 1/2.74 0.28 0.7 1.8 15.5 460 3.08 3.5 45 66
5×10 7/1.38 0.28 0.7 1.8 18.7 691 1.83 3.5 63 90
5×16 7/1.71 0.28 0.7 1.8 21.4 1,000 1.15 3.5 84 117
5×25 7/2.12 0.28 0.9 1.8 26.0 1,518 0.727 3.5 113 151
5×35 7/2.48 0.28 0.9 1.8 28.0 2,006 0.524 3.5 139 181
5×50 10/2.56 0.28 1 2 32.9 2,731 0.387 3.5 161 210
5×70 14/2.56 0.28 1.1 2.1 38.2 3,828 0.268 3.5 204 257
5×95 19/2.56 0.28 1.1 2.3 42.9 5,171 0.193 3.5 252 310
5×120 24/2.56 0.28 1.2 2.4 47.7 6,484 0.153 3.5 291 351
5×150 30/2.56 0.28 1.4 2.6 53.0 7,976 0.124 3.5 333 393
5×185 37/2.56 0.28 1.6 2.8 59.3 10,047 0.0991 3.5 385 445
5×240 48/2.58 0.28 1.7 3 66.2 13,011 0.0754 3.5 457 516
5×300 60/2.58 0.28 1.8 3.2 72.8 16,109 0.0601 3.5 527 583
3×2.5+1×1.5 1/1.76 0.28 0.7 1.8 11.5 203 7.56 3.5 27 41
3×4+1×2.5 1/2.23 0.28 0.7 1.8 12.6 269 4.61 3.5 35 53
3×6+1×4 1/2.74 0.28 0.7 1.8 13.9 358 3.08 3.5 45 66
3×10+1×6 7/1.38 0.28 0.7 1.8 16.4 522 1.83 3.5 63 90
3×16+1×10 7/1.71 0.28 0.7 1.8 19.0 756 1.15 3.5 84 117
3×25+1×16 7/2.12 0.28 0.9 1.8 22.7 1,131 0.727 3.5 113 151
3×35+1×16 7/2.48 0.28 0.9 1.8 24.0 1,423 0.524 3.5 139 181
3×50+1×25 10/2.56 0.28 1 1.8 28.0 1,948 0.387 3.5 161 210
3×70+1×35 14/2.56 0.28 1.1 1.9 32.1 2,705 0.268 3.5 204 257
3×95+1×50 19/2.56 0.28 1.1 2.1 36.4 3,662 0.193 3.5 252 310
3×120+1×70 24/2.56 0.28 1.2 2.2 40.9 4,653 0.153 3.5 291 351
3×150+1×70 30/2.56 0.28 1.4 2.3 44.3 5,527 0.124 3.5 333 393
3×185+1×95 37/2.56 0.28 1.6 2.5 49.7 7,078 0.0991 3.5 385 445
3×240+1×120 48/2.58 0.28 1.7 2.7 55.5 9,121 0.0754 3.5 457 516
3×300+1×150 60/2.58 0.28 1.8 2.9 61.2 11,284 0.0601 3.5 527 583
3×2.5+2×1.5 1/1.76 0.28 0.7 1.8 12.3 231 7.56 3.5 27 41
3×4+2×2.5 1/2.23 0.28 0.7 1.8 13.5 308 4.61 3.5 35 53
3×6+2×4 1/2.74 0.28 0.7 1.8 14.9 413 3.08 3.5 45 66
3×10+2×6 7/1.38 0.28 0.7 1.8 17.4 597 1.83 3.5 63 90
3×16+2×10 7/1.71 0.28 0.7 1.8 20.3 875 1.15 3.5 84 117
3×25+2×16 7/2.12 0.28 0.9 1.8 24.2 1,307 0.727 3.5 113 151
3×35+2×16 7/2.48 0.28 0.9 1.8 25.4 1,596 0.524 3.5 139 181
3×50+2×25 10/2.56 0.28 1 1.9 30.1 2,235 0.387 3.5 161 210
3×70+2×35 14/2.56 0.28 1.1 2 34.2 3,084 0.268 3.5 204 257
3×95+2×50 19/2.56 0.28 1.1 2.2 39.0 4,180 0.193 3.5 252 310
3×120+2×70 24/2.56 0.28 1.2 2.3 44.0 5,386 0.153 3.5 291 351
3×150+2×70 30/2.56 0.28 1.4 2.4 47.1 6,290 0.124 3.5 333 393
3×185+2×95 37/2.56 0.28 1.6 2.6 52.8 8,062 0.0991 3.5 385 445
3×240+2×120 48/2.58 0.28 1.7 2.8 58.9 10,350 0.0754 3.5 457 516
3×300+2×150 60/2.58 0.28 1.8 3 65.0 12,798 0.0601 3.5 527 583
4×2.5+1×1.5 1/1.76 0.28 0.7 1.8 12.5 243 7.56 3.5 27 41
4×4+1×2.5 1/2.23 0.28 0.7 1.8 13.7 325 4.61 3.5 35 53
4×6+1×4 1/2.74 0.28 0.7 1.8 15.2 437 3.08 3.5 45 66
4×10+1×6 7/1.38 0.28 0.7 1.8 18.1 644 1.83 3.5 63 90
4×16+1×10 7/1.71 0.28 0.7 1.8 20.9 937 1.15 3.5 84 117
4×25+1×16 7/2.12 0.28 0.9 1.8 25.1 1,412 0.727 3.5 113 151
4×35+1×16 7/2.48 0.28 0.9 1.8 26.7 1,800 0.524 3.5 139 181
4×50+1×25 10/2.56 0.28 1 1.9 31.4 2,474 0.387 3.5 161 210
4×70+1×35 14/2.56 0.28 1.1 2.1 36.3 3,462 0.268 3.5 204 257
4×95+1×50 19/2.56 0.28 1.1 2.2 40.9 4,663 0.193 3.5 252 310
4×120+1×70 24/2.56 0.28 1.2 2.4 45.9 5,961 0.153 3.5 291 351
4×150+1×70 30/2.56 0.28 1.4 2.5 50.0 7,127 0.124 3.5 333 393
4×185+1×95 37/2.56 0.28 1.6 2.7 56.1 9,047 0.0991 3.5 385 445
4×240+1×120 48/2.58 0.28 1.7 2.9 62.6 11,671 0.0754 3.5 457 516
4×300+1×150 60/2.58 0.28 1.8 3.1 68.9 14,442 0.0601 3.5 527 583
