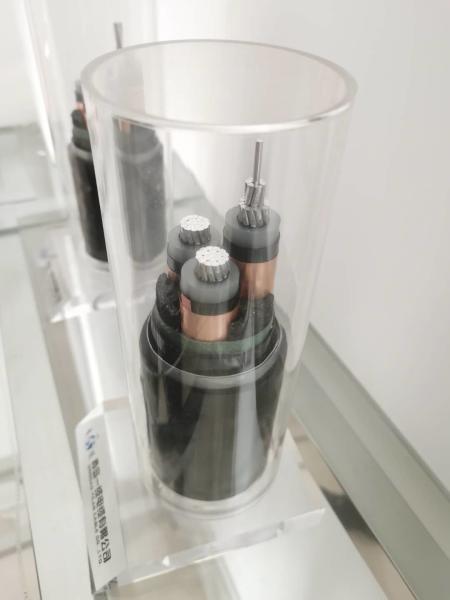

Steel Tape Armoured Low Voltage 1KV XLPE Underground Cable
Steel Tape Armoured Low Voltage 1KV XLPE Underground Cable
Specifications
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Name :
Copper Conductor Cable
Conductor Material: :
Copper
standard :
IEC 60502-1
Outer Sheath: :
PVC
Color :
Customized
Type :
XLPE Underground Cable
Description

Low Voltage 0.6/1KV XLPE Insulated Power Cable​

XLPE insulated power cable

The cross-linked polyethylene insulated power cable is a copper core AC 1kv-35kv power cable, which is mainly used for power transmission between equipment and between transmission and distribution stations. It adopts the national grid and has the characteristics of complete specifications and diverse structures. Among them, WDZ is a low-smoke, halogen-free material with anti-aging, tear-resistant, low-smoke, halogen-free and flame retardant properties, and can maintain its excellent electrical and mechanical properties in complex environments. More reliable performance

Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

Construction

Conductor: Copper or Aluminum
Conductor Shape: Circular Stranded or Compacted Circular Stranded
Appearance Shape: Circular
Insulation: XLPE
Armour Type: STA(Steel Tape Armoured), SWA(Steel Wire Armoured), AWA(Aluminum Wire Armoured)
Sheath Material: PVC or Polyethylene
