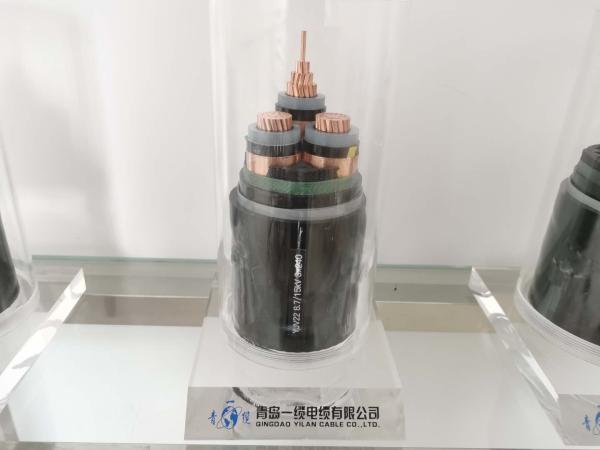

BS 7889 UV Resistance 3×35 Copper XLPE Insulated Cable
BS 7889 UV Resistance 3×35 Copper XLPE Insulated Cable
Specifications
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Name :
Copper Conductor Cable
Conductor Material: :
Copper
standard :
IEC 60502-1
Outer Sheath: :
PVC
Color :
Customized
Type :
XLPE Underground Cable
Description

3×35 XLPE insulated cable.


XLPE insulated power cable

XLPE insulated cables (also called XLPE insulated wires) have ordinary annealed twisted-pair round and round round copper conductors sold in rounds, with XLPE insulation and PVC sheath, we provide a full range of low voltage from one core to five cores 0.6/1kv cable. XLPE insulated cables/wires are widely used in network power systems, power distribution and transmission. We can manufacture XLPE insulated power cables according to IEC 60502, BS 7889 and AS/NZS 5000.

Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

Application


XLPE insulated cables can be used in almost all installations: ground, cable tray, indoor, power station, factory, exchange station. Because of their better thermal properties, they are especially recommended for the following occasions:
-High ambient temperature
-The cable is exposed to sunlight
-The cable is placed in the pipe of the concrete block
-Cables are grouped
-High emergency load is important
-Need high short circuit current
-High shielding layer must transmit high leakage current


Special functions on request:

•Oil resistance
• UV resistance
• Flame retardant cat. A, B, C
•Non-flame retardant
•termite
• Rodent
• Low smoke zero halogen
