PO Sheathed Control LSZH Power Cable , Fire Retardant Low Smoke Cable
PO Sheathed Control LSZH Power Cable , Fire Retardant Low Smoke Cable
PO Sheathed Control LSZH Power Cable , Fire Retardant Low Smoke Cable
PO Sheathed Control LSZH Power Cable , Fire Retardant Low Smoke Cable
PO Sheathed Control LSZH Power Cable , Fire Retardant Low Smoke Cable
PO Sheathed Control LSZH Power Cable , Fire Retardant Low Smoke Cable
Specifications
Brand Name :
HOLD-ONE
Certification :
CE/KEMA/ISO/PCCC
Place of Origin :
China
MOQ :
1000m
Price :
USD0.03-50
Supply Ability :
10KM per Week
Delivery Time :
As per schedule
Packaging Details :
100m/roll or customized
Color :
Red ,Black,Yellow,Brown,Blue or customized
Size :
1.5mm2 ,2.5mm2,4mm2
Rated Voltage :
450/750V
Insulation :
LSZH PO
Sample :
Available
Performance :
Environmental Protection
Standard :
IEC or ASTM
Description

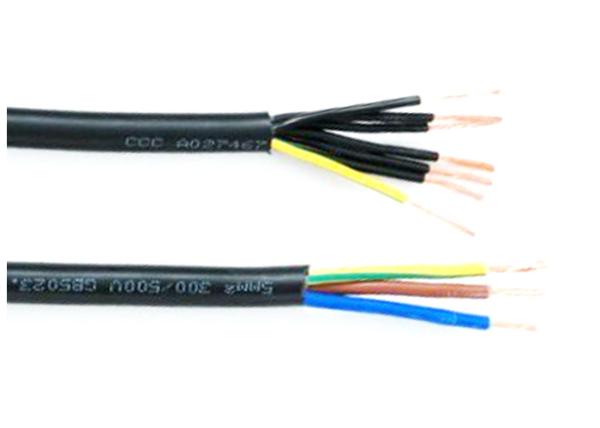

PO Sheathed Control Low Smoke Zero Halogen Cable With Copper Conductor

Product description:

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Cable Structure

Conductor : Class 1,2,5 Flexible Copper Conductor
Insulation: PVC

Sheath: LSZH PO

PVC Insulated Electrical Wire( 450/750V)

Technique property:

The wires have the property of insulation and flame resistance, good quality and durability.

The long term working temperature of RVV-105 can not be exceed 105℃, others not be exceed 75℃, the laying temperature can not be lower than 0℃


2. Technical data

Temperature range :
during installationi : +5 °C up to +70 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 - 12 mm
6D for D > 12 mm

Using Features:

The highest working temperature of conductor is 70oC

The temperature fot laying cable should be not less than 0oC

The bending radius of the cable:unarmoured cable,should be not less than 8times of diameter;armoured or copper tape shield cable,should not be less than 12times of diameter

Packaging & Shipping

Standard Packaging suitable for long-distance shipment
Normal cable factory length one coil with 100 meter
Cable Weight Approx. 15kg/km ~500kg/km

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!

About us
Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
