Copperweld Steel Conductor 6AWG(1/4.12mm) HS 40% Conductivity
Copperweld Steel Conductor 6AWG(1/4.12mm) HS 40% Conductivity
Specifications
Brand Name :
NA
Model Number :
Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity
Certification :
ISO
Place of Origin :
Henan,China
MOQ :
5000
Price :
0.1-70USD/meter
Payment Terms :
T/T, L/C
Supply Ability :
2000ton/month
Delivery Time :
10-15days
Packaging Details :
Wooden drum, Steel wooden drum, Coil, Box...
Port :
Qingdao, Tianjin, Shanghai
Application :
electrical, electronic, grounding, telecommunications, and other applications
Surface Treatment :
Annealed
Sample :
Free
MOQ :
5 000m
conductivities :
21, 30, 40, and 70 %
Packing :
Wooden Drum, Steel Wooden Drum
Material :
Copper Clad Steel
Description

Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity ​ Product Description:

High Strength(HS) copper clad steel wire provides the same conductivity and corrosion resistance as copper while maintaining the high strength ofsteel. Frequently used for overhead ground wire and messenger wire, HS copper clad Steel Wire can resist mechanical damage caused during installation plus electrical damage during a fault condition. The core carbon steel is bonded with a uniform layer of oxygen-free copper cladding to ensure that the copper will not flake, crack or peel when the wire is twisted, installed or buried.

Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity ​ STANDARDS :

ASTM B193 - Standard Test Method for Resistivity of Electrical Conductor Materials

ASTM B227 - Standard Specification for Hard-Drawn Copperclad Steel Wire

ASTM B228 - Standard Specification for Concentric-Lay-Stranded Copperclad Steel Conductors

ASTM B258 - Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes of Solid Round

ASTM B910 - Standard Specification for Annealed Copperclad Steel Wire

Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity ​Technical Parameters:

CONDUCTOR
SIZE		 STRANDS OVERALL
DIAMETER		 AREA MIN. BREAKING
LOAD		 WEIGHT NOM. DC
RESISTANCE
AWG IN. MM CMIL (MM^2) LBF KGF KG/KM Ω/KM
#6 AWG 1 0.162 4.12 26,250 13.3 2360 1071 109 3.2382

APPLICATIONS:

Copper clad steel wire and strand combines the electrical characteristics of copper with the mechanical properties of steel.Often used for buried ground grid systems ,overhead ground wire and messenger wire.it can resist mechanical damage during installation,as well as electrical damage during a fault condition. Copper clad steel has virtually no scrap value ,greatly reducing the potential of theft.

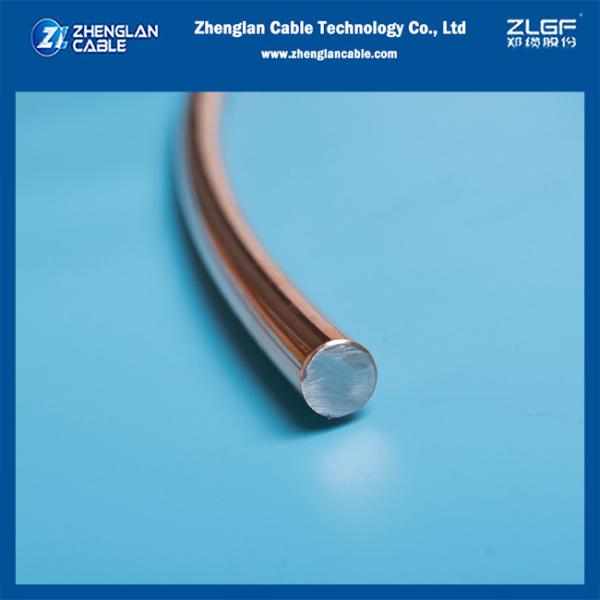

Copperweld steel conductor 6AWG(1/4.12mm) HS 40% conductivity ​ Image:

Copperweld Steel Conductor 6AWG(1/4.12mm) HS 40% ConductivityCopperweld Steel Conductor 6AWG(1/4.12mm) HS 40% Conductivity

Support and Services:

Copper Clad Steel technical support and services include:

  • Providing product information and technical support.
  • Assistance with product selection.
  • Guidance with product installation and maintenance.
  • Providing product training.
  • Safety inspections and testing.
  • Repair and replacement services.
  • Warranty services.

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
