AAAC Bare Conductor Strand 465.4MCM 234.4mm2 ASTM B399/399M
AAAC Bare Conductor Strand 465.4MCM 234.4mm2 ASTM B399/399M
AAAC Bare Conductor Strand 465.4MCM 234.4mm2 ASTM B399/399M
AAAC Bare Conductor Strand 465.4MCM 234.4mm2 ASTM B399/399M
Specifications
Brand Name :
Zhenglan Cable
Model Number :
AAAC conductor strand 465.4MCM 234.4mm2(19/3.98mm) ASTM B399/399M
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
5000m
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100KM/Month
Delivery Time :
15-30 days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Material :
Aluminum Alloy
Size :
465.4MCM
Quality :
100% test
Standard: :
Construction as per DIN 48201,BS 215 ,IEC 60189,ASTM-B399,CSA C49
Grease :
No
Description

AAAC conductor strand 465.4MCM 234.4mm2(19/3.98mm) ASTM B399/399M

Application

AAAC conductor Bare aluminum alloy conductor are made of Aluminum Alloy 6201 Wires. normally used in overhead power transmission lines. conductivity of 52.5% IACS are commonly used.

All Aluminum Alloy Conductors (AAAC) Features:
• High strength-to-weight ratio

• Better Sag Characteristics

• Improved Electrical Properties

• Excellent resistance to corrosion

AAAC conductor strand 465.4MCM 234.4mm2(19/3.98mm) ASTM B399/399M​ Technical parameters

CODE CALCULATED AREA STRAND O.D. RATED STRENGTH RESISTANCE
DIA. AT 20℃
Cairo 465.4MCM 236.4mm2 19-3.98 19.9 69.25 0.1417

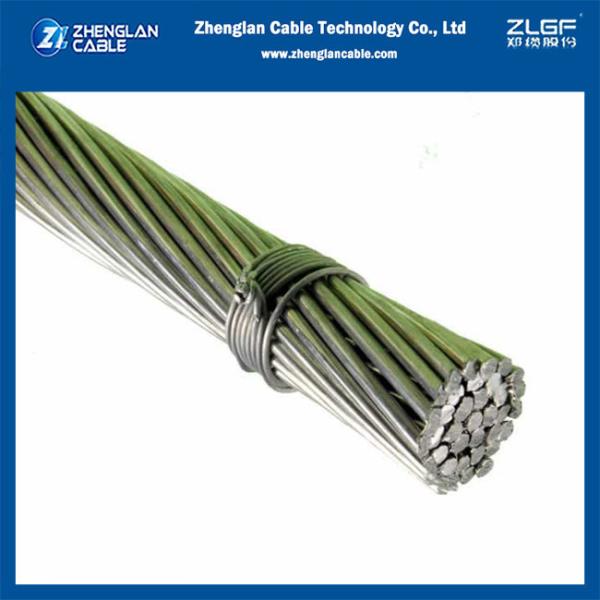

AAAC conductor strand 465.4MCM 234.4mm2(19/3.98mm) ASTM B399/399M​ product Images

AAAC Bare Conductor Strand 465.4MCM 234.4mm2 ASTM B399/399M

AAAC Bare Conductor Strand 465.4MCM 234.4mm2 ASTM B399/399M

Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;

FAQ

  • Is your company a factory or a trade company? --- Factory, more than 20 years in China
  • How long can I expect to get the sample?---After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
  • What are your payment terms?---We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
  • What’s the delivery time?---Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
  • What is your MOQ?---Generally it is 5000m.
