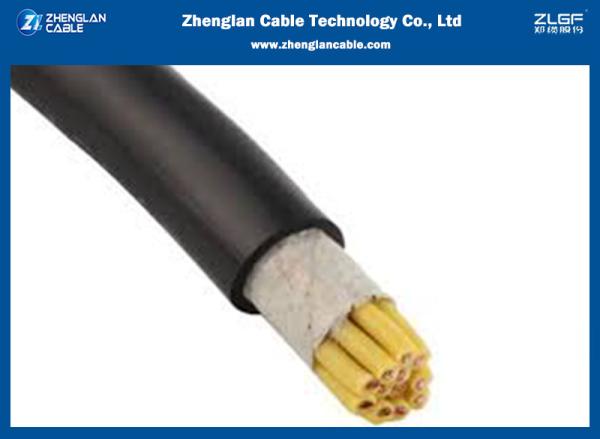

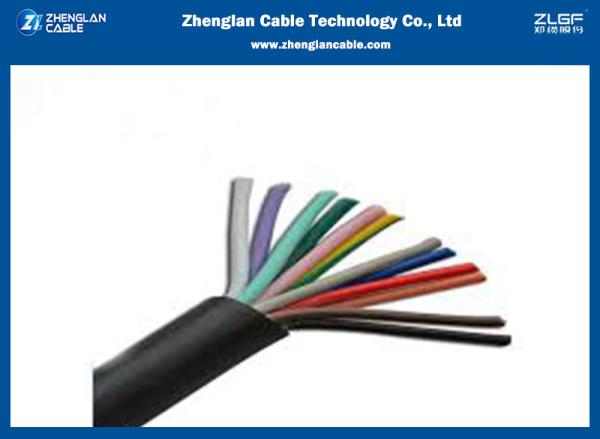

450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded
450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded
450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded
450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded
Specifications
Brand Name :
Zhenglan cable
Model Number :
H07V-K, H05V-K 6*2.5 sqmm
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
1000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
82,000 KM/Year
Delivery Time :
5~15 days
Packaging Details :
Rolls or Customerised
Name :
Control Cables
Sheath :
PVC
Application :
used for installations&connections electrical apparatus, static or dynamic
Colour :
Standard or Customerised
Core :
Multiple
Conductor :
Copper
Insulation :
PVC
Voltage :
450/750V; 300/500V
Port :
Shanghai or Qingdao
Origin :
China
Description

Cu/PVC/PVC Unshielded Shielded 450/750V 300/500V 6*2.5 sqmm Electrical Control Cable

Technical Information:

Standards:227IEC52/53, equivalent to VDE0281 BS6004

Conductor: bare stranded copper-class 5 IEC228

Insulation/sheath: PVC

Voltage rating: 300/500V

Temperature range: 0°C to 70°C

Main colors: HAR color code

Minimum bending radius:7.5X overall dia

Application:used for installations&connections electrical apparatus, static or dynamic

Remark: the cable can be of Low smoke free halogen, flame retardant and other enhanced features

Cross section (mm²) Conductor construction (No/mm) Insulation thickness (mm) Sheath thickness (mm) Min insulation resistance @700C (ohm/Km) Max.D.C resistance of at 20℃ MΩ/Km Overall diameter max (mm) Weight approx. (Kg/Km)
2x0.75 24/0.2 0.6 0.8 7.2 26.0 0.011 53
2x1.0 32/0.2 0.6 0.8 7.5 19.5 0.01 61
2x1.5 48/0.2 0.7 0.8 8.6 13.3 0.001 81
2x2.5 49/0.25 0.8 1.0 10.6 7.98 0.009 125
2x4 56/0.3 0.8 1.1 12.1 4.95 0.007 173
3x0.75 24/0.2 0.6 0.8 7.6 26.0 0.011 63
3x1.0 32/0.2 0.6 0.8 8.0 19.5 0.01 73
3x1.5 48/0.2 0.7 0.9 9.4 13.3 0.01 100
3x2.5 49/0.25 0.8 1.1 11.4 7.98 0.01 157
3x4 56/0.3 0.8 1.2 13.1 4.95 0.009 216
4x0.75 24/0.2 0.6 0.8 8.3 26.0 0.011 76
4x1.0 32/0.2 0.6 0.9 9.0 19.5 0.01 91
4x1.5 48/0.2 0.7 1.0 10.5 13.3 0.01 127
4x2.5 49/0.25 0.8 1.1 12.5 7.98 0.009 191
4x4 56/0.3 0.8 1.2 14.32 4.95 0.007 265
5x0.75 24/0.2 0.6 0.9 9.3 26.0 0.011 96
5x1.0 32/0.2 0.6 0.9 9.8 19.5 0.01 110
5x1.5 48/0.2 0.7 1.1 11.6 13.3 0.01 160
5x2.5 49/0.25 0.8 1.2 13.9 7.98 0.009 238
5x4 56/0.3 0.8 1.4 16.1 4.95 0.007 340

Cross section (mm2) Conductor construction (No/mm) Insulation thickness (mm) Sheath thickness (mm) Overall diameter min (mm) Overall diameter max (mm) Max.D.C resistance of at 20℃ MΩ/Km Weight approx. (Kg/Km)
2x1.0 1/1.13 0.6 0.9 4.0x6.2 47x7.4 18.1 53
2x1.5 7/0.5 0.7 0.9 4.4x7.0 5.4x8.4 12.1 71
2x2.5 7/0.67 0.8 1.0 5.2x8.4 6.2x9.8 7.41 100
2x4 7/0.85 0.8 1.0 5.6x9.6 7.2x11.5 4.61 150
2x6 7/1.04 0.8 1.1 6.4x10.5 8.0x13.0 3.08 200
2x10 7/1.35 1.0 1.2 7.8x13.0 9.6x16.0 1.83 290
2x16 7/1.70 1.0 1.3 9.0x15.5 11.0x18.5 1.15 460
2x1.0+E 1/1.13+1.0 0.6 0.9 4.0x7.2 4.7x8.6 18.1 68
2x1.5+E 7/0.5+1.0 0.7 0.9 4.4x8.2 5.4x9.6 12.1/18.1 87
2x2.5+E 7/0.67+1.5 0.8 1.0 5.2x9.8 6.2x11.5 7.41/12.1 120
2x4 +E 7/0.85+1.5 0.8 1.0 5.6x10.5 7.2x13.0 4.61/12.1 170
2x6 +E 7/1.04+2.5 0.8 1.1 6.4x12.5 8.0x15.0 3.08/7.41 240
2x10 +E 7/1.35+4 1.0 1.2 7.8x15.5 9.6x19.0 1.83/4.61 390
2x16 +E 7/1.70+6 1.0 1.3 9.6x18.0 11.0x22.5 1.15/3.08 560


450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded
450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded

450/750V 300/500V 6×2.5 Sqmm Electrical Control Cable Cu/PVC/PVC Unshielded Shielded

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to CE, ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the highest efficient shipping time guaranteed;
  • Professional pre-sales and after-sales services provided.
