IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
Specifications
Brand Name :
Zhenglan cable
Model Number :
LV Armoured Cable
Certification :
3C; ISO 9001:2015, ISO 14001:2005,
Place of Origin :
Henan, China
MOQ :
300 meters
Price :
negotiate
Payment Terms :
L/C, T/T,
Delivery Time :
12 days
Packaging Details :
Wooden drum, wood and steel drum,as customer's request
Material :
Copper
Application :
power station
Insulation :
XLPE
Out Sheath Color :
Black or Customized
Core :
4
characted :
Armoured
Jacket :
pvc
Voltage :
600/1000V
Description

IEC60521 standard LV 1-5 Cores XLPE SWA armoured LSZH power cable

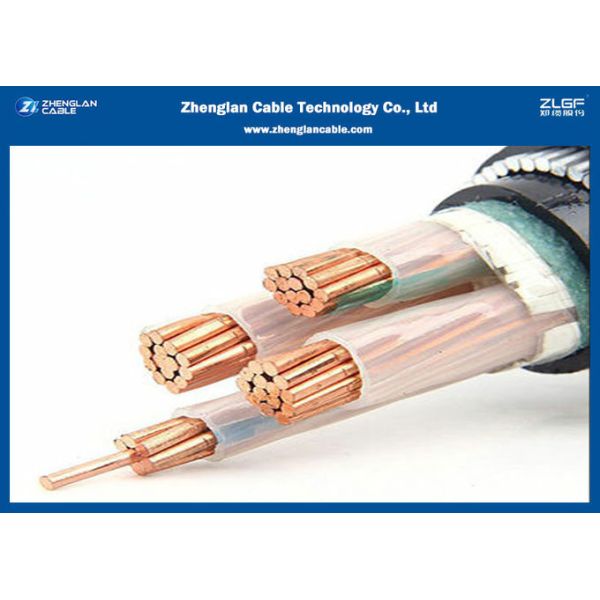

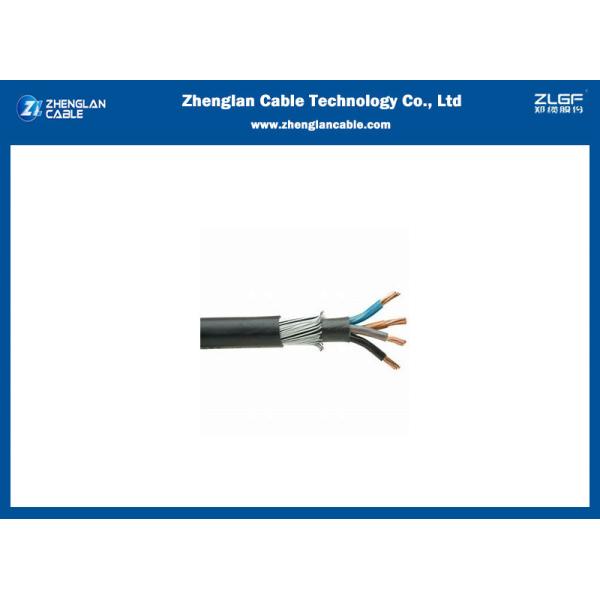

Structure
Conductor: Copper
Insulation: XLPE
Inner sheath:PVC/LSZH
Armour: Steel Tape Armour or Steel Wire Armour
Outer sheath: PVC/LSZH
IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable
Operation characteristic
1.Rated voltage:0.6/1kV.
2.Long-term permission working temperature of cable conductor is 90℃.
3.The minimum allowable bending radius of cable is 8 times of outer diameter of thecable.

Application

This Copper conductor steel wire armoured 4 core armoured cable 120mm is used in underground power transmission lines of rated voltage 600/1000V and below. The swa armour allows the cable to bear large vertical pressures.

IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable

Cable Parameters:

Four cores(Galvanized steel wire armoured)

Nominal
Area		 Approx Conductor Diameter Nominal Insulation thickness Nominal bedding thickness Nominal Steel Wire dia. Nominal Sheath thickness Approx. Overall Diameter Approx.
Weight
mm² mm mm mm mm mm mm Kg/Km
4x1.5 1.6 0.7 1 0.9 1.8 15 415
4x2.5 2 0.7 1 0.9 1.8 17.5 490
4x4 2.6 0.7 1 0.9 1.8 19 600
4x6 3.1 0.7 1 0.9 1.8 20 730
4x10 4 0.7 1 1.25 1.8 23 970
4x16 5 0.7 1 1.6 1.8 26 1520
4x25 6.3 0.9 1 1.6 1.8 29 2010
4x35 7.4 0.9 1 1.6 1.9 31 2560
4x50 8.8 1 1 1.6 2.1 36 3350
4x70 10.6 1.1 1.2 2 2.2 40 4680
4x95 12.4 1.1 1.2 2 2.4 44 5710
4x120 14 1.2 1.4 2.5 2.5 50 7500
4x150 15.5 1.4 1.4 2.5 2.6 55 9010
4x185 17.4 1.6 1.4 2.5 2.8 61 10820
4x240 20.3 1.7 1.6 2.5 3.1 69 13630
4x300 22.7 1.8 1.6 2.5 3.2 75 16820
4x400 25.4 2 1.8 3.15 3.4 83 22230

IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable

IEC60521 Standard LV XLPE SWA Armoured LSZH Power CableIEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
