Specifications
Brand Name :
Zhenglan Cable
Model Number :
0.6/1KV Armoured Aluminium Electric LV Power Cable （AL/PVC/XLPE/STA/NYBY/N2XBY)
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
200 meters
Payment Terms :
L/C, T/T,
Delivery Time :
15-30 days
Packaging Details :
fully wooden drum, steel wooden drum, fully steel drum or customized
Price :
0.1-100USD/m
Supply Ability :
40KM/day
Conductor Material :
Copper/Aluminum
Jacket :
PVC
Insulation Material :
XLPE
Type :
Low Voltage
Application :
underground power line, building electric line
Number of cores :
1-5
Rated voltage :
0.6/1KV
Description

0.6/1KV Low Voltage Aluminium 300mm2 XLPE PVC Power Cable for Construction/Multi Cores Cables/Electric power cable

1.Quick Details
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Type: Low Voltage
Application: Construction
Conductor Material: Copper/Aluminum
Jacket: PVC
Sizes: 1.5~1000mm2
Insulation color: Red, yellow, green all according to clients demand
Number of cores: 1-5cores
Rated voltage: 0.6/1KV
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

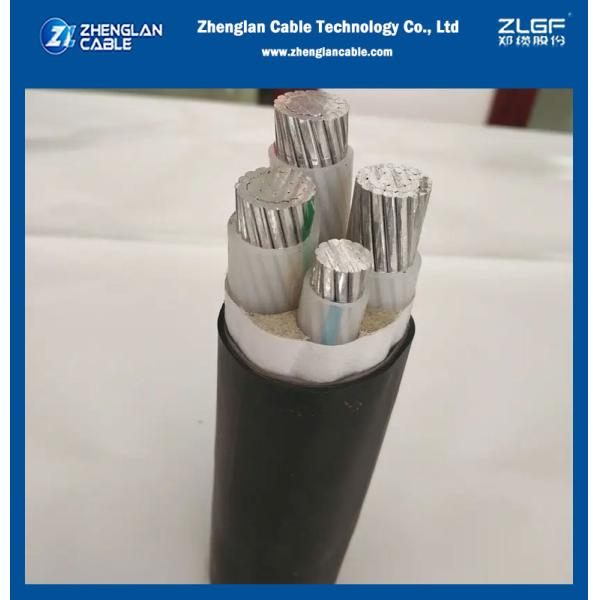

2. 0.6/1KV Armoured Aluminium Electric LV Power Cable (AL/PVC/XLPE/STA/NYBY/N2XBY) Cable structure

- Stranded bare copper conductor according to IEC 60228

- Core insulation of XLPE (cross-linked polyethylene)

- Color coded cores according to HD 308.S2

- PVC inner sheath

- Outer black sheath, PVC self-extinguishing and flame retardant,

test method IEC 60332-1 and BS 4066 PT1

3.Technical data

- Power and control cable according to BS 5467, IEC 60502

- Temperature at conductor max. +90 °C

- Temperature during installation from 0 °C to +70 °C

- Nominal voltage U o /U 0,6/1 kV

- Test voltage a.c. 3.5 kV

- Minimum bending radius 12x cable diameter

4.Application

These power and control armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards or subscriber networks, where mechanical damages to the cable may occur.

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
    Model Description
    YJV(YJLV) Copper(Aluminum) core XLPE insulated PVC sheathed power cable
    YJV22(YJLV22) Copper(Aluminum) core XLPE insulated steel tape armoured and PVC sheathed power cable
    YJV32(YJLV32) Copper(Aluminum) core XLPE insulated steel wire armoured and PVC sheathed power cable
    ZR-YJV(ZR-YJLV) Copper(Aluminum) core XLPE insulated flame retardant PVC sheathed power cable
    ZR-YJV22(ZR-YJLV22) Copper(Aluminum) core XLPE insulated steel tape armoured and flame retardant PVC sheathed power cable
    ZR-YJV32(ZR-YJLV32)

    Copper(Aluminum) core XLPE insulated steel wire armoured and flame retardant PVC sheathed power cable

0.6/1KV Armoured Aluminium Electric LV Power Cable (AL/PVC/XLPE/STA/NYBY/N2XBY) technical data

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)
mm² mm mm mm mm Kg/Km
1x1.5 1.6 0.7 1.4 6.0 50
1x2.5 2.0 0.7 1.4 6.5 70
1x4 2.25 0.7 1.4 7.0 80
1x6 2.76 0.7 1.4 7.5 110
1x10 4.0 0.7 1.4 8.5 150
1x16 5.0 0.7 1.4 9.5 215
1x25 6.3 0.9 1.4 11.5 315
1x35 7.4 0.9 1.4 12.0 415
1x50 8.8 1.0 1.4 13.0 555
1x70 10.6 1.1 1.4 15.0 760
1x95 12.4 1.1 1.5 17.0 1025
1x120 14.0 1.2 1.5 18.5 1270
1x150 15 .5 1.4 1.6 21.5 1575
1x185 17.4 1.6 1.6 23.0 1955
1x240 20.3 1.7 1.7 26.0 2470
1x300 22.7 1.8 1.8 28.0 3155
1x400 25.4 2.0 1.9 32.0 4049
1x500 28.8 2.2 2.0 36.0 5100
1x630 30.4 2.4 2.2 40.0 6410

0.6/1KV Armoured Aluminium Electric LV Power Cable (AL/PVC/XLPE/STA/NYBY/N2XBY)
