Aerial Bundled Cable 2x70mm2 AAC/XLPE NTP 370-254
Aerial Bundled Cable 2x70mm2 AAC/XLPE NTP 370-254
Specifications
Brand Name :
Zhenglan Cable
Model Number :
Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254
Certification :
CE ISO CCC
Place of Origin :
Henan,China
MOQ :
1000m
Price :
1-15USD/meter
Payment Terms :
T/T, L/C, Western Union...
Supply Ability :
50000m/day
Delivery Time :
≥10days
Packaging Details :
Export wooden drum & iron wooden drum or as customer require
Rated Voltage :
0.6-1KV
Phase cable :
AAC/XLPE
Conductor temperature :
Max. +90°C
standard :
NTP-370-254
Description

Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254​ Cable application:

Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254​ Cable are designed for overhead secundary distribution networks with voltages up to 1000V.

Maximum operating temperature: 90℃；

Overload maximum core temperature:130 °C

Short-circuit max. conductor temperature: 250 °C

Electrical voltage test
The cables shall be subjected to an alternating voltage of 4 kV, with a frequency between 48 Hz and 62 Hz, for 5 minutes and shall not be perforated. Alternatively, a direct voltage of 9.6 kV may be applied.

Construction:
1. Phase cable Conductor: Aluminium 1350, class 2; Insulation: Cross linked polyethylene XLPE.
2. Public lighting: don't have
3. Insulated neutral messenger: don't have


Colour: Black,

Core identification: one cable print as 111 or nothing; one cable with "COMPANY NAME CAAI 0,6/1 kV - (Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) - Sequential length"

Reference standards
NTP-IEC 60228: Conductors of insulated cables.
NTP 370.254: Cables for overhead distribution networks self-supporting XLPE insulated of rated voltages up to and including 0.6/1 kV.

Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254​ Technical data

Nb. of phase cores Phase Cond. Cross Section (mm2) Phase cable Insulation thick.(mm) Public lighting cable(mm2) Public Insulation thick.(mm) Neutral Cond.section (mm2) Insulat. Thick. neutral cable. (mm) Outer diameter (mm) Approximate weight (kg/km)
2 70 1.52 / / / / 27.2 478

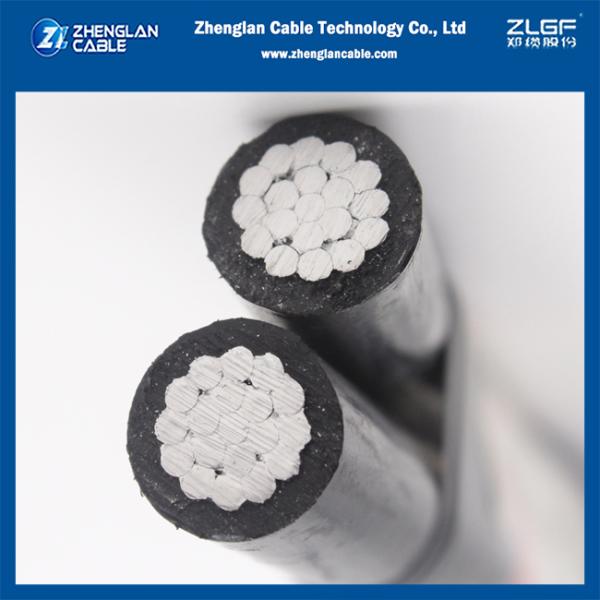

Aerial bundled cable 2x70mm2 AAC/XLPE NTP 370-254​ Reference images

Aerial Bundled Cable 2x70mm2 AAC/XLPE NTP 370-254

Aerial Bundled Cable 2x70mm2 AAC/XLPE NTP 370-254
