0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1
0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1
0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1
0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1
0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1
0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1
Specifications
Brand Name :
Zhenglan cable
Model Number :
0.6/1kv cu/pvc/pvc 7x2.5sqmm copper wire braid shielded control cable as per IEC60502-1
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
1000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
82,000 KM/Year
Delivery Time :
5~20 days
Packaging Details :
Rolls or Customerised
Name :
Control Cables
Conductor :
Copper
Insulation :
pvc
Sheath :
PVC
Application :
:used for installations&connections electrical apparatus, static or dynamic
Core :
Multiple
Voltage :
0.6/1KV
Origin :
China
Description

Application

This control cable with braided shield can be used in electronic circuits that require RF shielding. This control cable has excellent shielding and anti-interference effects, reduces noise, and has good flexibility.

Control cable are supplied to a variety of industries and applications, including robotics, manufacturing, construction, power and distribution, etc. They are common in both commercial and industrial markets.

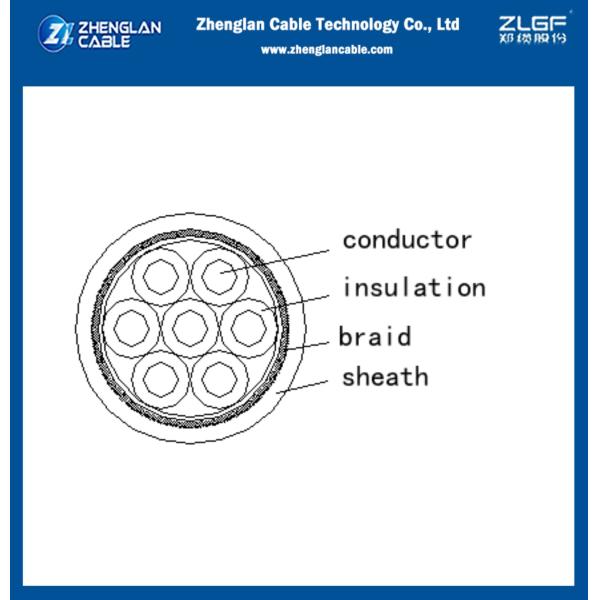

Construction

Rated Voltage: 0.6/1kv;

Conductor: Copper/Tinned Copper (solid core class1, stranded core class2 or flexible core class5);

Insulation: Polyvinyl chloride (PVC) or Crosslinked Poyethylene (XLPE);

Sheild Type: Copper wire braided shielded;

Core: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61;

Outer Sheath: Polyvinyl chloride (PVC)

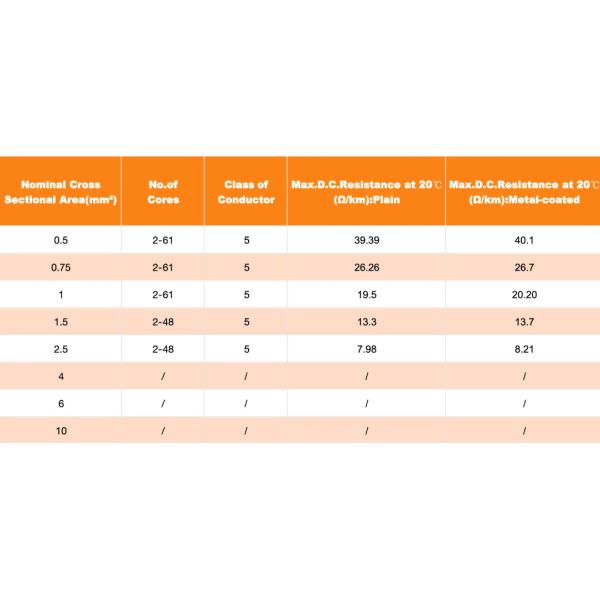

0.6/1kv cu/pvc/pvc 7x2.5sqmm copper wire braid shielded control cable as per IEC60502-1​ reference parameters

0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1

0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-10.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-10.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1

0.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-10.6/1KV CU/PVC/PVC 7x2.5 Sqmm Control Cable With Copper Wire Braided Shield IEC60502-1

​

Why choose Zhenglan Cable Technology Co., Ltd

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to CE, ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the highest efficient shipping time guaranteed;
  • Professional pre-sales and after-sales services provided.
