MV IEC 60502-2 Standard 6.35/11kV - ABC Cable

MV IEC 60502-2 ABC Cable Application :

The main application is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. This cable feature such advantages as low manufacturing cost and ease of installation.

MV IEC 60502-2 ABC Cable Construction :

• Phase Conductor: Class 2 Circular compacted stranded Aluminium
• Conductor Screen: Extruded semi-conductive layer
• Insulation Material: XLPE
• Support Conductor: Galvanized steel wires
• Insulation Screen: Extruded semi-conductive layer
• Voltage Type: Medium Voltage
• Metallic Screen: Copper wire screen or copper tape screen
• Separator: Semi-conductive swellable tape
• Outer Sheath: HDPE (High Density polyethylene)

MV IEC 60502-2 ABC Cable Specifications

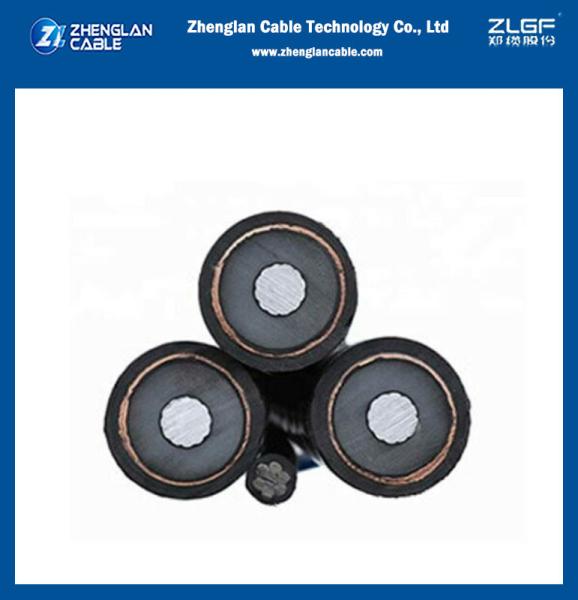

MV IEC 60502-2 ABC Cable images

About us:

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ:

Q: What is the model number of this solar cable?

A: The model number of this solar cable is PV1-F TUV EN 50618 H1Z2Z2-K.

Q: Where is this solar cable manufactured?

A: This solar cable is manufactured in China.

Q: Is this solar cable TUV certified?

A: Yes, this solar cable is TUV certified according to EN 50618.

Q: What is the temperature rating of this solar cable?

A: This solar cable has a temperature rating of -40°C to +90°C.
