ACSR Dog Conductor 100mm2 Al-6/4.72mm St-7/1.57mm BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204

ACSR Dog Conductor 100mm2 Application

The Aluminium Conductor Steel Reinforced (ACSR) is a conductor, combining the light weight high current capacity of aluminium with high strength of a galvanized steel core wire. The Aluminium members are standard around thegalvanized steel core, the core may be solid or stranded and the Aluminium may be arranged in one or more layers depending on the size and strength of conductor required.

STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

FEATURES

With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. It is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.

CONSTRUCTION

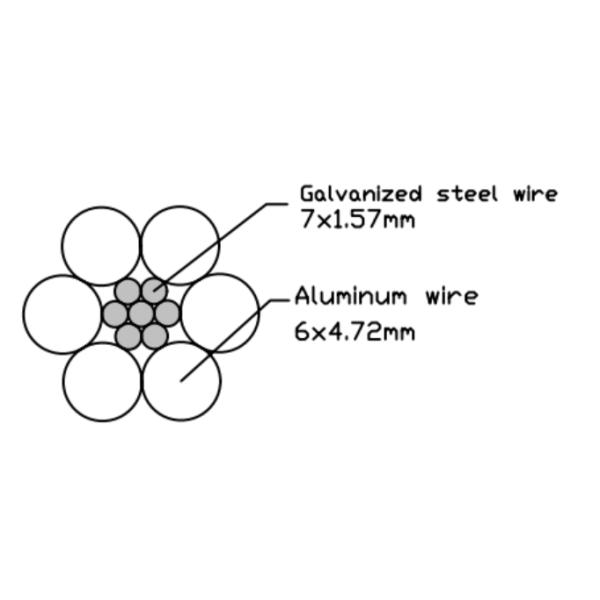

A “DOG” conductor is a ACSR (aluminum conductor steel reinforced) cable with nominal aluminum cross-sectional area of 100 mm². It has 6 aluminum strands of 4.72 mm diameter and 7 steel strands of 1.57 mm diameter.ACSR dog conductor has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

Technical data sheet

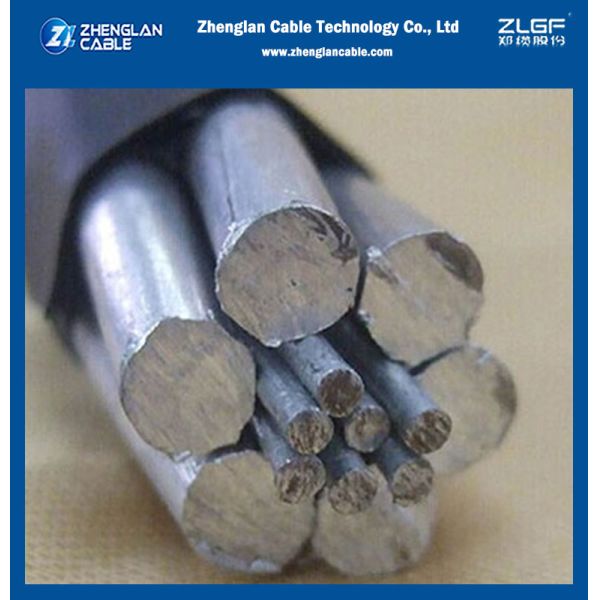

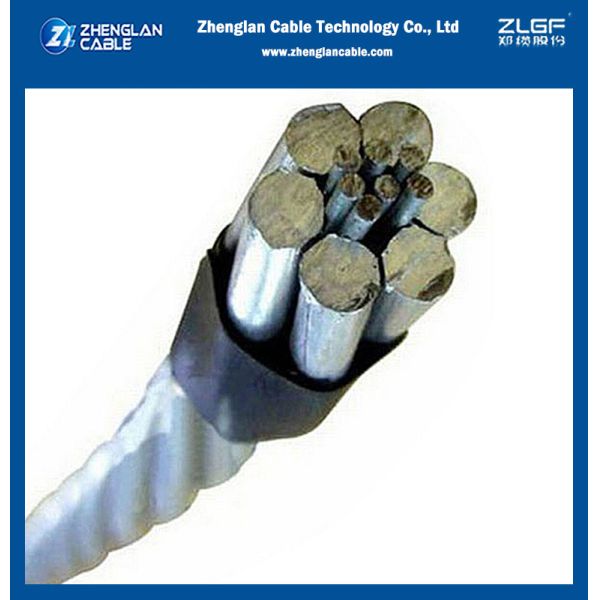

Product picture
