2*16mm2 Overhead AAC Conductor XLPE Insulation Aluminum Wire Twisted ABC Cable
2*16mm2 Overhead AAC Conductor XLPE Insulation Aluminum Wire Twisted ABC Cable
2*16mm2 Overhead AAC Conductor XLPE Insulation Aluminum Wire Twisted ABC Cable
2*16mm2 Overhead AAC Conductor XLPE Insulation Aluminum Wire Twisted ABC Cable
Specifications
Brand Name :
Zhenglan Cable
Model Number :
LV ABC cable AAC covered with XLPE insulation AAAC supported Aerial bundled cable IEC60502-1
Certification :
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Wuzhi, Henan, CN
MOQ :
200-5000m depends on the specificaion
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 M/day
Delivery Time :
10 days
Packaging Details :
Wooden drum, iron wooden drum or as required
Conductor Material :
Copper
Insulation :
XLPE
Standard :
IEC 60502 BS 7870 NFC 33-209
Jacket :
PVC
Voltage :
0.6/1KV
Port :
Qingdao
Numer of cores :
3+1
Description

2*16mm2 overhead AAC conductor XLPE insulation aluminum wire twisted ABC cable

Standard :NFC 33-209


Construction :
1.Conductor: Stranded Aluminium wire conductor
2.Insulation:XLPE (cross-linked polyethylene)or PE (weather resistant)
3.Insulation Color: Black

Characteristic :

1.Temperature Rating:-20ºC up to +90ºC
2.Voltage Rating:600/1000V
3.Min inner bending radius:
Up to 25mm:4x overall diameter
Above 25mm:6x over diameter
4.Behaviour in fire: Flame retardant cable acc.to IEC60332-1

Application:

Aerial Bundled Cable(overhead cables)is applied for elelctric power distribution in low voltage metropolitan,suburban and rural networks,for public lighting and house connections.Laid on pillars and house fronts.


Technical Parameters:

No.of cores x Nominal section area Nominal Construction of conductor Nominal
Insulation
thickness		 Nominal
Overall diameter		 Nominal
Cable weight		 Max.Resistance of conductor
at 20ºC
No.X mm² No.X mm mm mm kg/km <=(Ω/km)
Aerial Bundled Cables (Overhead Cables) 0.6/1kV
16 7/1.70 1.2 7.2 66 1.910
25 7/2.14 1.2 8.4 94 1.200
35 7/2.52 1.4 9.8 130 0.868
50 19/1.78 1.4 11.1 175 0.641
70 19/2.14 1.4 12.8 235 0.443
95 19/2.52 1.6 14.8 317 0.320
120 37/2.03 1.6 16.2 390 0.253
150 37/2.25 1.8 18.2 486 0.206
2X16 2X7/1.70 1.2 7.2 132 1.910
2X25 2X7/2.14 1.2 8.4 188 1.200
2X35 2X7/2.52 1.4 9.8 260 0.868
2X50 2X19/1.78 1.4 11.1 350 0.641
2X70 2X19/2.14 1.4 12.8 470 0.443
2X95 2X19/2.52 1.6 14.8 634 0.320
2X120 2X37/2.03 1.6 16.2 780 0.253
2X150 2X37/2.25 1.8 18.2 972 0.206
4X16 4X7/1.70 1.2 7.2 264 1.910
4X25 4X7/2.14 1.2 8.4 376 1.200
4X35 4X7/2.52 1.4 9.8 520 0.868
4X50 4X19/1.78 1.4 11.1 700 0.641
4X70 4X19/2.14 1.4 12.8 940 0.443
4X95 4X19/2.52 1.6 14.8 1268 0.320
4X120 4X37/2.03 1.6 16.2 1560 0.253
4X150 4X37/2.25 1.8 18.2 1944 0.206

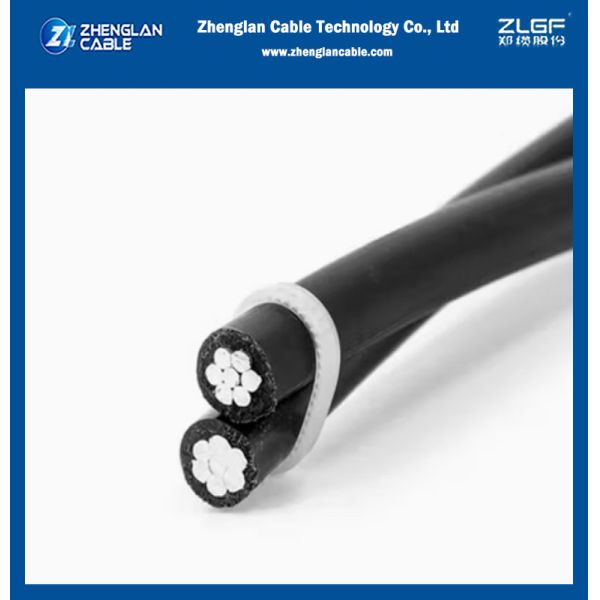

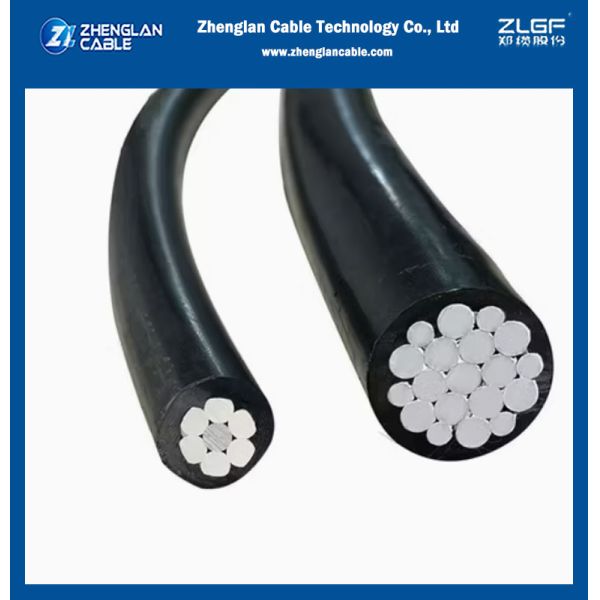

Product picture

2*16mm2 Overhead AAC Conductor XLPE Insulation Aluminum Wire Twisted ABC Cable

2*16mm2 Overhead AAC Conductor XLPE Insulation Aluminum Wire Twisted ABC Cable

2*16mm2 Overhead AAC Conductor XLPE Insulation Aluminum Wire Twisted ABC Cable

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
