0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex
0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex
0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex
0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex
Specifications
Brand Name :
Zhenglan Cable
Model Number :
ABC-NFC
Certification :
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Wuzhi, Henan, CN
MOQ :
200-5000m depends on the specificaion
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 M/day
Delivery Time :
10 days
Packaging Details :
Wooden drum, iron wooden drum or as required
Conductor Material :
Aluminum
Application :
Overhead line use
Standard :
NFC Standard
structure :
AL/XLPE
Voltage :
0.6/1KV
Port :
Qingdao
Description

0.6/1kv Aluminum/Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 (AAAC) AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex

APPLICATION

The cables are designed for aerial power lines and room-entrance wires with AC rated voltage from 0.6/1kV to 6/10kV.

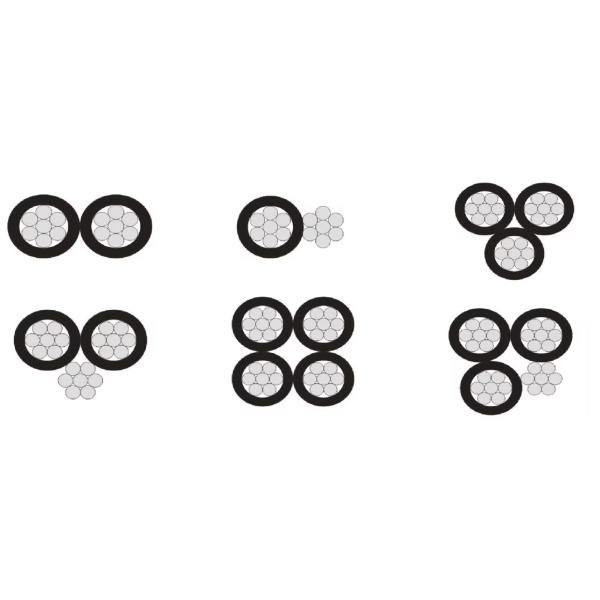

CONSTRUCTION

Phase Conductor: Aluminum Conductor.

Phase Insulation: XLPE, PE or PVC, generally use XLPE.

Neutral Conductor: AAC, AAAC or ACSR, generally use AAAC.

Lighting Cable(In NFC-33 209 Standard): Aluminum Conductor XLPE/PE/PVC insulated.

0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex
0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex
0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex
0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex
Product Specifications
Goods Description Specification (mm2) Conductor (No./mm) Insulation Thickness/mm Cable Overall Diameter/mm 20ºC Conductor DC Resistance (Ω/km) Cable Weight (kg/km)
ABC Cable, Aluminium Conductor, XLPE/PE Insulation 1×10 7/1.33 1.0 5.8 3.08 41.42
1×16 7/1.68 1.2 7.2 1.91 65.24
1×25 7/2.2 1.2 8.4 1.20 93.85
1×35 7/2.56 1.4 9.8 0.868 129.14
1×50 7/3.05 1.4 11.1 0.641 170.05
1×70 19/2.2 1.4 12.8 0.443 233.53
1×95 19/2.56 1.6 14.8 0.320 316.64
1×120 19/2.85 1.6 16.2 0.253 388.60
1×150 37/2.34 1.8 18.1 0.206 485.66
1×185 37/2.56 2.0 20.2 0.164 600.46
1×240 37/2.95 2.2 22.8 0.125 783.32
1×10+10 7/1.35 1.0 11.9 3.08 84.42
1×16+16 7/1.7 1.2 14.7 1.91 132.69
1×25+25 7/2.2 1.2 17.2 1.20 190.36
1×35+35 7/2.56 1.4 20.2 0.868 263.58
1×50+50 7/3.05 1.4 23.0 0.641 352.80
1×70+70 19/2.2 1.4 26.3 0.443 478.29
1×95+95 19/2.56 1.6 30.5 0.320 647.49
1×120+120 19/2.85 1.6 33.6 0.253 797.32
1×150+150 37/2.34 1.8 37.6 0.206 995.71
1×185+185 37/2.56 2.0 41.8 0.164 1229.46
1×240+240 37/2.95 2.2 47.3 0.125 1593.87
1×10+10(Bare) 7/1.35 1.0 9.9 3.08 69.19
1×16+16(Bare) 7/1.7 1.2 12.3 1.91 109.78
1×25+25(Bare) 7/2.2 1.2 14.8 1.20 162.89
1×35+35(Bare) 7/2.56 1.4 17.4 0.868 225.75
1×50+50(Bare) 7/3.05 1.4 20.2 0.641 308.63
1×70+70(Bare) 19/2.2 1.4 23.5 0.443 427.16
1×95+95(Bare) 19/2.56 1.6 27.3 0.320 579.55
1×120+120(Bare) 19/2.85 1.6 30.4 0.253 721.07
1×150+150(Bare) 37/2.34 1.8 34.0 0.206 899.90
1×185+185(Bare) 37/2.56 2.0 37.8 0.164 1111.24
1×240+240(Bare) 37/2.95 2.2 42.9 0.125 1446.24
2×10+10 7/1.35 1.0 12.7 3.08 126.25
2×16+16 7/1.7 1.2 15.7 1.91 198.58
2×25+25 7/2.2 1.2 18.4 1.20 285.15
2×35+35 7/2.56 1.4 21.5 0.868 394.01
2×50+50 7/3.05 1.4 24.5 0.641 524.55
2×70+70 19/2.2 1.4 28.1 0.443 714.16
2×95+95 19/2.56 1.6 32.5 0.320 967.29
2×120+120 19/2.85 1.6 35.8 0.253 1189.81
2×150+150 37/2.34 1.8 40.0 0.206 1486.23
2×185+185 37/2.56 2.0 44.5 0.164 1835.92
2×240+240 37/2.95 2.2 50.3 0.125 2385.02
2×10+10(Bare) 7/1.35 1.0 11.6 3.08 111.02
2×16+16(Bare) 7/1.7 1.2 14.4 1.91 175.67
2×25+25(Bare) 7/2.2 1.2 17.0 1.20 257.68
2×35+35(Bare) 7/2.56 1.4 19.8 0.868 356.18
2×50+50(Bare) 7/3.05 1.4 22.7 0.641 480.38
2×70+70(Bare) 19/2.2 1.4 26.3 0.443 663.03
2×95+95(Bare) 19/2.56 1.6 30.4 0.320 899.35
2×120+120(Bare) 19/2.85 1.6 33.6 0.253 1113.56
2×150+150(Bare) 37/2.34 1.8 37.4 0.206 1390.41
2×185+185(Bare) 37/2.56 2.0 41.6 0.164 1717.70
2×240+240(Bare) 37/2.95 2.2 47.1 0.125 2237.39
3×10+10 7/1.35 1.0 14.2 3.08 168.09
3×16+16 7/1.7 1.2 17.6 1.91 264.47
3×25+25 7/2.2 1.2 20.5 1.20 379.94
3×35+35 7/2.56 1.4 24.0 0.868 524.45
3×50+50 7/3.05 1.4 27.3 0.641 696.29
3×70+70 19/2.2 1.4 31.3 0.443 950.03
3×95+95 19/2.56 1.6 36.3 0.320 1287.10
3×120+120 19/2.85 1.6 39.8 0.253 1582.30
3×150+150 37/2.34 1.8 44.5 0.206 1976.74
3×185+185 37/2.56 2.0 49.6 0.164 2442.38
3×240+240 37/2.95 2.2 56.0 0.125 3176.17
3×10+10(Bare) 7/1.35 1.0 12.9 3.08 152.85
3×16+16(Bare) 7/1.7 1.2 16.1 1.91 241.56
3×25+25(Bare) 7/2.2 1.2 19.1 1.20 352.47
3×35+35(Bare) 7/2.56 1.4 22.3 0.868 486.62
3×50+50(Bare) 7/3.05 1.4 25.6 0.641 652.13
3×70+70(Bare) 19/2.2 1.4 29.6 0.443 898.90
3×95+95(Bare) 19/2.56 1.6 34.3 0.320 1219.16
3×120+120(Bare) 19/2.85 1.6 37.9 0.253 1506.05
3×150+150(Bare) 37/2.34 1.8 42.3 0.206 1880.93
3×185+185(Bare) 37/2.56 2.0 47.2 0.164 2324.16
3×240+240(Bare) 37/2.95 2.2 53.4 0.125 3028.54

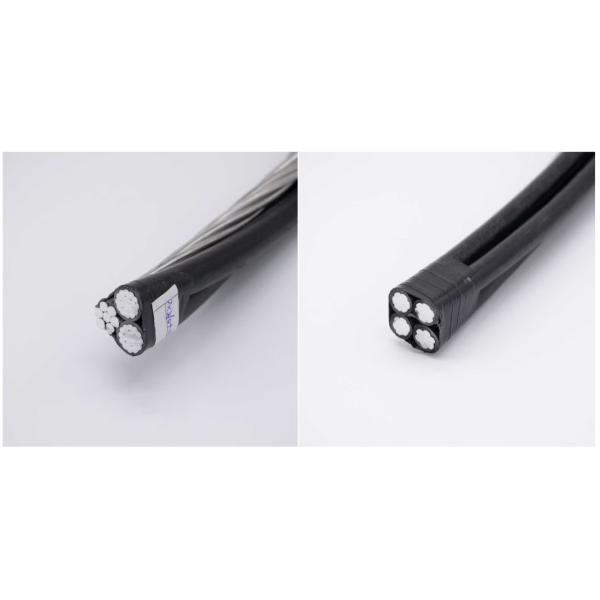

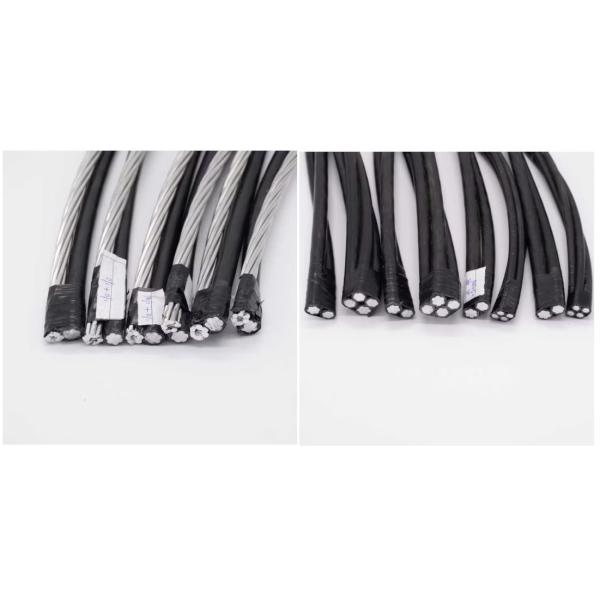

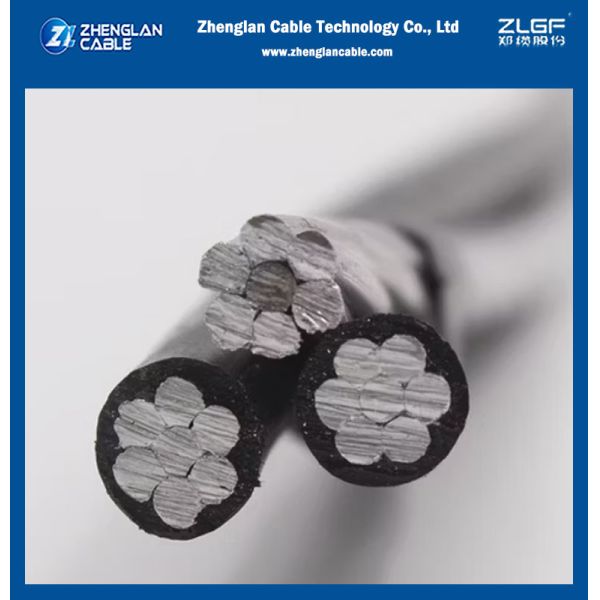

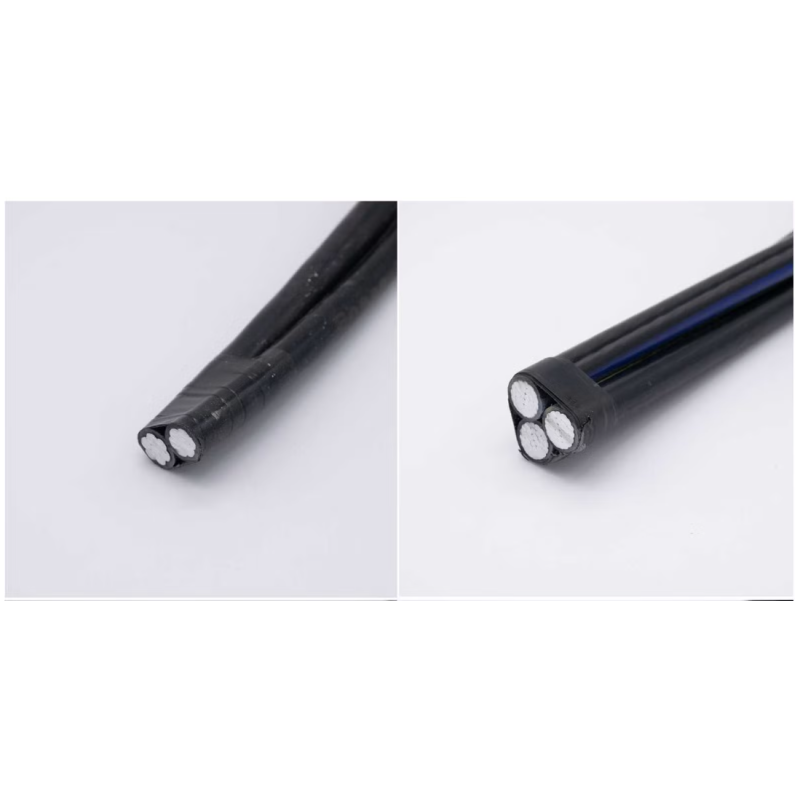

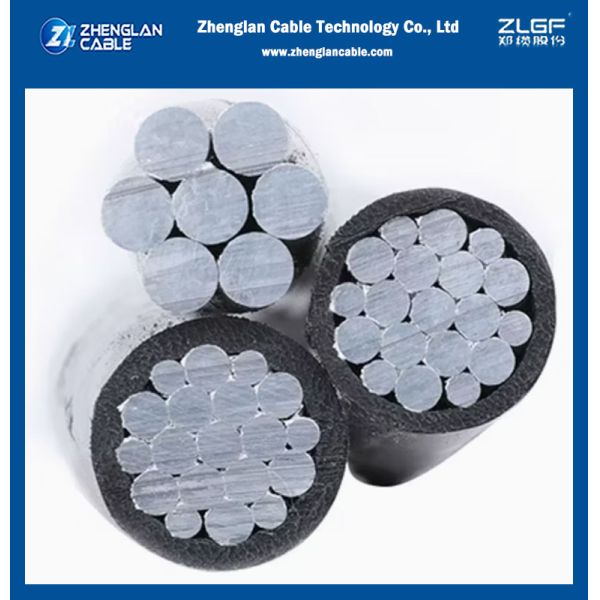

ABC cable Aerial bunched cable Images

0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex

0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex

0.6/1kv Aluminum / Aluminum Alloy Conductor XLPE Insulated 2*1/0+1/0 AAAC AWG ABC Cable Overhead Bundled Electric Wire Service Drop Triplex

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
