ACAR Conductor 950MCM(AAC18/4.07, AAAC19/4.07) Overhead Aluminum Conductor Aluminum Alloy Reinforced.
ACAR Conductor 950MCM(AAC18/4.07, AAAC19/4.07) Overhead Aluminum Conductor Aluminum Alloy Reinforced.
Specifications
Brand Name :
Zhenglan Cable
Model Number :
ACAR conductor 950MCM(AAC18/4.07, AAAC19/4.07) overhead aluminum conductor aluminum alloy reinforced.
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
2000 meters
Price :
depends on cable size
Payment Terms :
L/C, T/T,
Supply Ability :
100KM/Month
Delivery Time :
15-30 days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Material :
aluminium alloy, aluminum
Size :
120mm2
Quality :
100% IEC Standards test
Standard :
IEC61089
Description
ACAR conductor 950MCM(AAC18/4.07, AAAC19/4.07) overhead aluminum conductor aluminum alloy reinforced.

ACAR is made of Aluminium 1350 - H19 wires with Aluminium Alloy 6201 as reinforcement core, having the same role of steel in ACSR, but with much higher ampacity. Its combination result in a good and interesting balance of mechanical strength and electrical performance.

ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics. As comparison with ACSR of same weight, ACAR can offers higher ampacity and mechanical strength.

Reference standards: ASTM B524/524M, ASTM B399/399M, ASTM B230/230M

ACAR conductor 950MCM(AAC18/4.07, AAAC19/4.07) overhead aluminum conductor aluminum alloy reinforced technical data

kcmil Area
2
mm		 Wire Size
mm		 No.of wires Overall Dia.
mm		 Weight kg/km Rated Strength
kN		 DC Resistance
at 20℃ Ω/km
1350 6201 Total 1350 6201 Total
950 481.1 4.069 18 19 37 28.48 645.8 677.9 1323.7 105.84 0.0644

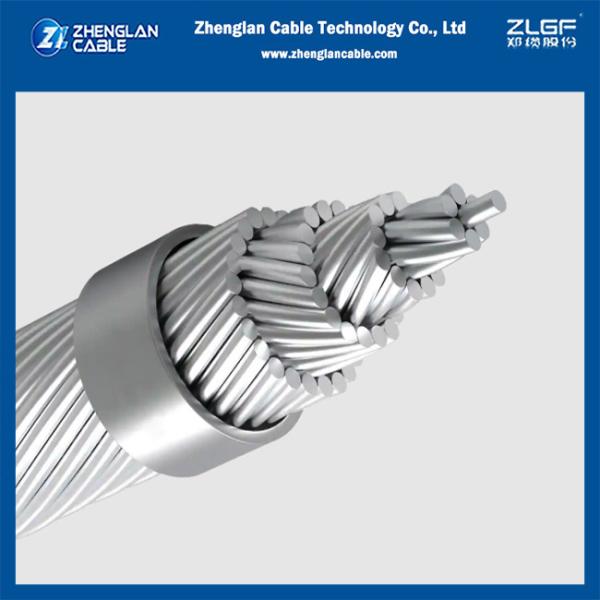

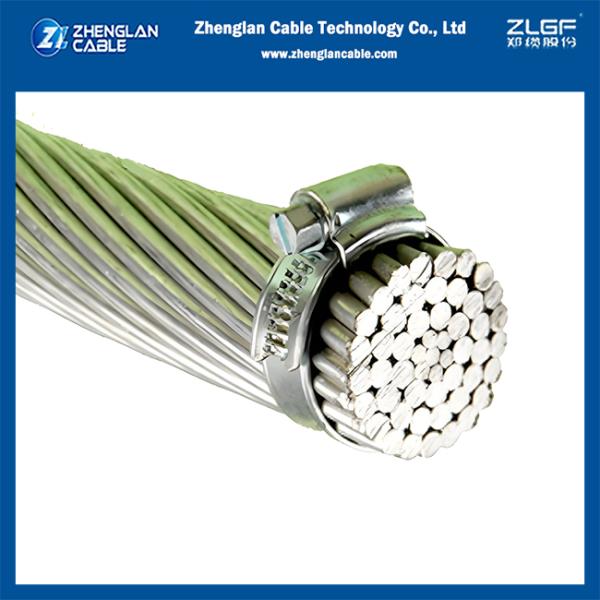

Reference images

ACAR Conductor 950MCM(AAC18/4.07, AAAC19/4.07) Overhead Aluminum Conductor Aluminum Alloy Reinforced.
