0.6/1kv SWA armored cable Cu/pvc/pvc/swa/pvc 3x6mm2 IEC60502-1/IEC60228

0.6/1kv SWA armored cable Cu/pvc/pvc/swa/pvc 3x6mm2 IEC60502-1/IEC60228​​ Application
These cables are commonly used in fixed industrial power applications, including local mains. Where required, it can be buried directly in the ground. It should be noted that the steel wire armour, whilst offering mechanical protection, makes it rigid with a large bending radius of x15 overall cable diameter and so this should be considered when choosing the suitability of the cable for your specific installation environment. Additionally, the PVC insulation means a maximum conductor operating temperature of +70℃ and a minimum temperature of -5℃.

0.6/1kv SWA armored cable Cu/pvc/pvc/swa/pvc 3x6mm2 IEC60502-1/IEC60228 Manufacture Standards
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

0.6/1kv SWA armored cable Cu/pvc/pvc/swa/pvc 3x6mm2 IEC60502-1/IEC60228​ Construction
1. Conductor: Copper , Class 1: solid conductor for cable below 10mm2, or Class 2: stranded conductor
2. Insulation: PVC
3. Filler: Non-hygroscopic material
4. Bedding/inner sheath:PVC

5. Armor: galvanized steel wire armor
6. Outer sheath: Polyvinyl chloride PVC

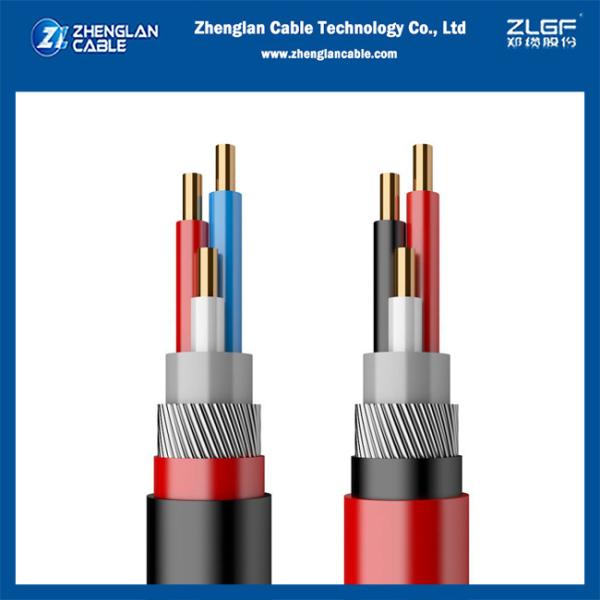

0.6/1kv SWA armored cable Cu/pvc/pvc/swa/pvc 3x6mm2 IEC60502-1/IEC60228​ Product picture


0.6/1kv SWA armored cable Cu/pvc/pvc/swa/pvc 3x6mm2 IEC60502-1/IEC60228​​ PARAMETER :

0.6/1kv SWA armored cable Cu/pvc/pvc/swa/pvc 3x6mm2 IEC60502-1/IEC60228​​ Package

FOQ

1. What is the MOQ?

MOQ are affected by many factors such as conductor type, nominal cross sectional area, with or withour armor and the armor type you need. Common conductor type are: ≥10mm2, default class 2 stranded type; ＜10mm2, default class 1 solid type.

2. Are you manufacturer?

Yes, we are manufacturer and our factory is located in Wuzhi county, Jiaozuo, Henan province and our oversea department is located in Zhengzhou, Henan province.

3. Are you ISO certified?

Yes, we are.
