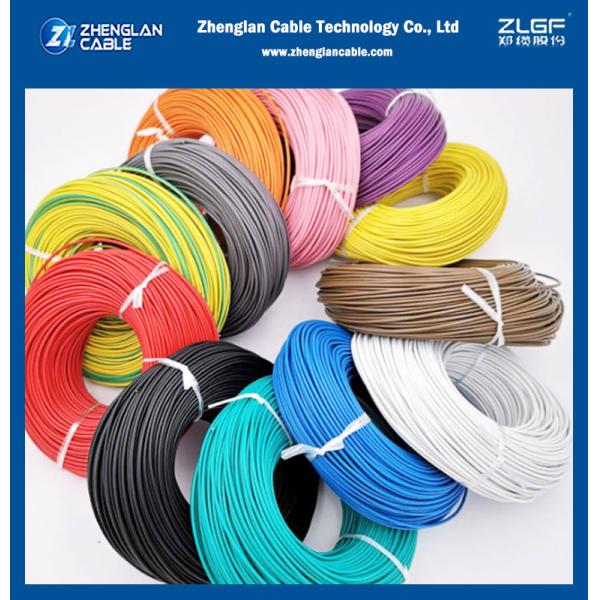

1.5mm 2.5mm 4mm 6mm 10mm Single Core Copper PVC Insulated House Wire And Cable Electrical Cable
1.5mm 2.5mm 4mm 6mm 10mm Single Core Copper PVC Insulated House Wire And Cable Electrical Cable
1.5mm 2.5mm 4mm 6mm 10mm Single Core Copper PVC Insulated House Wire And Cable Electrical Cable
1.5mm 2.5mm 4mm 6mm 10mm Single Core Copper PVC Insulated House Wire And Cable Electrical Cable
Specifications
Brand Name :
Zhenglan cable
Model Number :
PVC Insulated House Wire and Cable Electrical Cable
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
100 meters
Payment Terms :
L/C, T/T,
Delivery Time :
15-30 days
Packaging Details :
100 feet in coil or other as customized
Conductor Material :
99.99% oxygen-free Copper
Shelf Life :
30 years
Conductor Type :
Solid / Stranded
Sheathed :
PVC type ST5
Type :
Insulated
Rate voltage :
300/500V
Description

1.5mm 2.5mm 4mm 6mm 10mm Single Core Copper PVC Insulated House Wire and Cable Electrical Cable

  • Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
  • Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
  • Application:
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.copper cable electric cable wire
Voltage Level
(V)		 Nominal section
(mm²)		 Toplimit of overall diameter
(mm)		 Maximum DC resistance
(20℃)		 Minimum insulation resistance
(70℃)		 Recommended value of carrying capacity
(A)		 Reference weight
(KG,KM)
300/300 2x0.5 5.9 3.9 0.012 10 37
2x0.75 6.3 26.0 0.01 13 47
3x0.5 6.3 39.0 0.012 8 44
3x0.75 6.7 26.0 0.01 10 58
2x0.75 7.2 26.0 0.011 13 58
300/500 2x1.0 7.5 19.5 0.01 16 66
2x1.5 8.6 13.30 0.01 20 89
2x2.5 10.6 7.98 0.009 27 137
2x4 12.4 4.95 0.007 38 205
2x6 14.5 3.30 0.006 50 280
3x0.75 7.6 26.00 0.011 9 70
3x1.0 8.0 19.50 0.01 11 80
3x1.5 9.4 13.300 0.01 12 112
3x2.5 11.4 7.980 0.009 21 172
3x4 13.5 4.950 0.007 27 255
3x6 14.0 3.30 0.006 34 340
4x0.75 8.3 26.0 0.011 10 84
4x1.0 9.0 19.50 0.01 12 101
4x1.5 10.5 13.30 0.01 13 141
4x2.5 12.5 7.98 0.009 21 210
4x4 14.6 4.95 0.007 27 310
4x6 16.0 3.30 0.006 35 425
5x0.75 9.3 26.00 0.011 10 103
5x1.0 9.8 19.50 0.01 12 119
5x1.5 11.6 13.30 0.01 13 172
5x2.5 13.9 7.98 0.009 22 257
5x4 16.5 4.95 0.007 27 386
5x6 17.3 3.30 0.006 35 518
