12V IP68 Outdoor Permanent LED Lights for Christmas Holiday Funfair

Specifications

Place of Origin :

Guangdong, China

Brand Name :

XQD

MOQ :

20 pieces

Price :

$0.40 - $0.64/pieces

Model Number :

XR30/40/50

Certification :

CE, RoHS, FCC

Packaging Details :

XQD PACKING/customized

Delivery Time :

10 work days

Supply Ability :

50000PCS/Day

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Color Temperature(CCT) :

6000K (Daylight Alert)

Input Voltage(V) :

DC 12V

Warranty(Year) :

5-Year

Type :

LED Modules

Support Dimmer :

Yes

Lighting solutions service :

Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

Luminous Efficacy(lm/w) :

Lifespan (hours) :

50000

Working Time (hours) :

50000

Chip Material :

Epistar

Emitting Color :

Tri-Color(Red-Blue-Green)

Luminous Intensity :

10000

Luminous Flux(lm) :

63.3

Optical Attenuation(%) :

Power :

0.72-1.92W

Power Dissipation :

DC12V

Viewing Angle(°) :

120

Color Rendering Index(Ra) :

Color Temperature :

RGB with IC

Operating Temperature(℃) :

-25 - 45

Storage Temperature(℃) :

-30 - 60

Usage :

Indoor &Outdoor

IP Rating :

IP68

IC chip :

TM1914/RT16703

LED Chip :

SMD5050

name :

XR Series point light

Description

80lm/w Luminous Efficacy XQDLED Point Light 512 IP68 for Full Color Waterproof Lamp

Product feature:

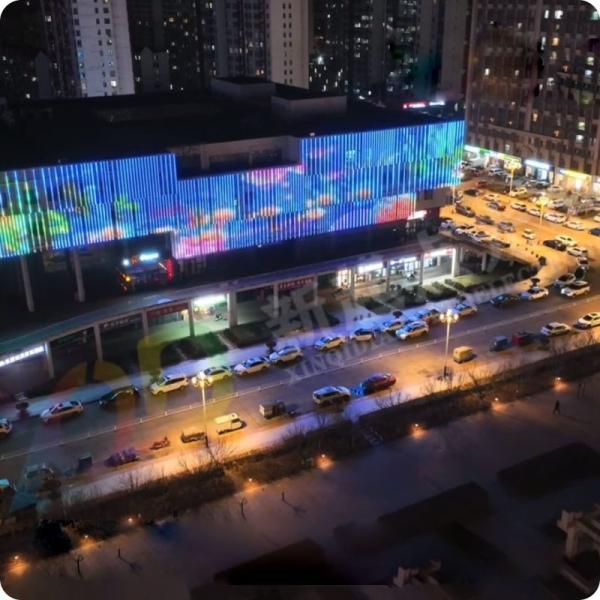

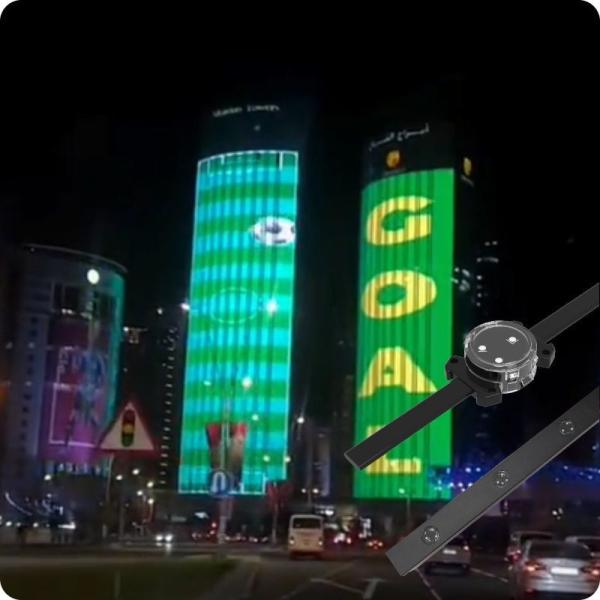

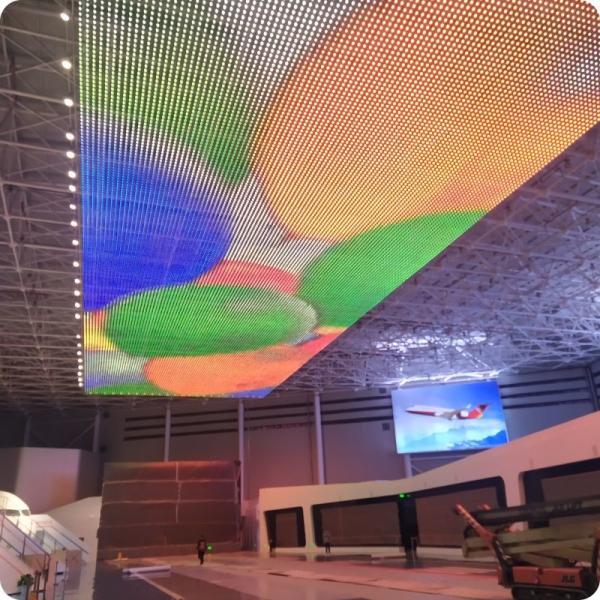

Outdoor advertising display:
LED point light source can be used to make large outdoor advertising display, such as LED display, building display and so on.
They are able to display dynamic images and videos to bring a stunning visual experience to the audience.
Outline of buildings, viaducts and Bridges:
LED point light sources can be used to outline the outline of the building, especially at night, such lighting can highlight the structural beauty of the building.
This kind of application is often seen in urban beautification projects.

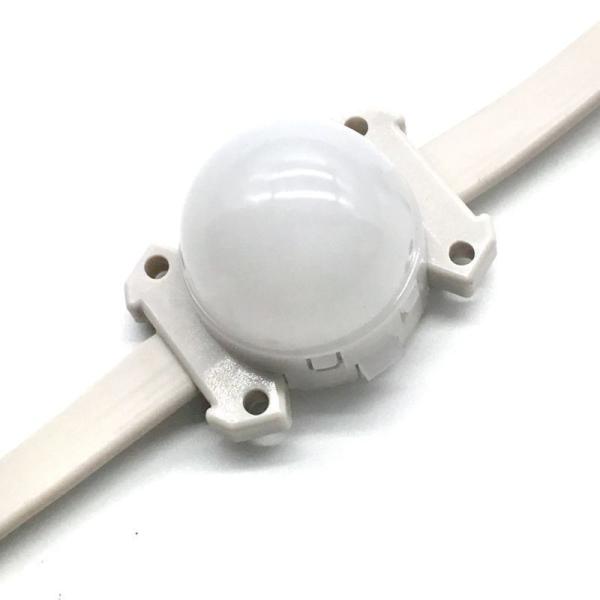

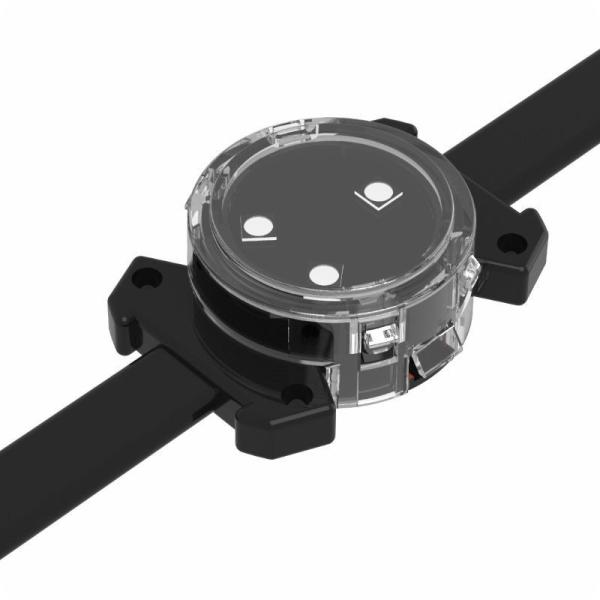

XR30 point light source technical parameters

Basic product parameters		Product protection parameter
Product model	XR30-RGB-1.2W	Waterproof grade	IP67
Product size	Φ30mm*14.5(23.5Ball cover)mm	Shell flame retardant	V-0
Application environment	Indoor and outdoor	UV resistance grade	4
Product weight	About21g	Salt spray test	Salt spray resistance
Shell material	PC	Impact resistance	IK10
Maximum number of connections	100PCS/string	Electrical safety class	Ⅲ class
Center distance	Minimum 7CM	Safety certification	CE FCC ROHS
Average product life	50,000 hours	Operating temperature	-40℃-55℃
Optional accessories	Aluminum groove, steel wire buckle	Case color	Black/Grey
Wire core	2x0.75mm²+3x0.3mm²
Wire material	PVC
PCB material	FR-4 Fiberglass board
Product optical parameters		Electrical parameters of the product
LED color	RGB	Operating voltage	DC24V
Luminous Angle	120°	Rated power	1.2W
Color resolution	3*16bit	Supporting system
Lamp bead	SMD3535*4LED	Control system	DMX512
Pixel point luminous flux	25.1LM	Power supply system	DC24V Constant voltage
luminance	7.4-7.8cd

Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
