Specifications
Place of Origin :
Guangdong, China
Model Number :
XQD-T20Dual lights-WGP
Brand Name :
XQD
Price :
$120.00/square meters 1-499 square meters
MOQ :
10Square
Delivery Time :
10 work days
Certification :
CE, RoHS, FCC
Packaging Details :
XQD PACKING/customized
Supply Ability :
50000PCS/Day
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Application :
Indoor, Outdoor
Type :
LED
Color :
full color
Panel Size :
32 inch, 32 inch
Supplier Type :
Original manufacturer, ODM, Agency, Retailer, OEM, Other
Media Available :
datasheet, Photo, EDA/CAD Models
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, airport, subway, elevator, Restaurant & Hotel Supplies
Pixel Pitch :
10mm, 10mm
Specification :
Stretch bar, Digital Poster, Touch Screen, Video Wall, Kiosk
Brightness :
3000, 3000
pixel density :
31.25, 31.25
Lifespan (hours) :
50000, 50000
IP Rating :
ip68, ip68
HS Code :
8539510000
Resolution :
55
Product name :
Led Video Display Panel
Description

2024 T20P50 LED Grid Screen Original of Flexible Transparent Irregular RGB Curtain Wall Outdoor LED grid screen

Product advantages
Xi 'an Creative Moon Screen: This work is located in the city wall of Xi 'an South Gate, It is a creative large circle screen with a diameter of 10 meters, carrying the magnificent performances, such as "Dream of Chang 'an" and "Ode to Chang 'an", leading the audience through time and space, dreaming back to the Tang Dynasty. This screen uses LED grid screen technology to delicately present historical scenes and characters, providing visitors with a unique visual experience.
These cases show the application and diversity of grid art works in modern art creation, which not only beautify urban Spaces, but also enhance the interaction and experience with the audience.
XQD The design, manufacture and application of LED grid screen have their own characteristics and advantages. Not only do they offer high quality products, they are also able to tailor lighting solutions to meet the needs of different occasions. If you need more information about a specific company or are looking for a grid lighting solution for your project, you can provide more details
Product Presentation
Product Name
XQD-T20Dual lights-WGP
product size
Φ20mm*12.8mm
Shell Material
PC
Application environment
Inside and outside
Product single weight
About 5.5g
Maximum number of connections
120PCS/chain
Center spacing
Minimum 25mm
Average life
50000 H
Waterproof class
IP65
LED color
RGB
Luminescence Angle
120°
Lamp bead
SMD5050*1LED
Pixel point luminous flux
7.9LM
radiance
2.2-2.5cd
Power rating
0.2W
Working Voltage
DC12V
Working temperature
-40℃-55℃
control system
SPI
power supply system
DC12V constant voltage

Product Description
P50 LED Grid Screen Original Flexible Transparent Irregular RGB Curtain Wall
P50 LED Grid Screen Original Flexible Transparent Irregular RGB Curtain Wall
P50 LED Grid Screen Original Flexible Transparent Irregular RGB Curtain Wall

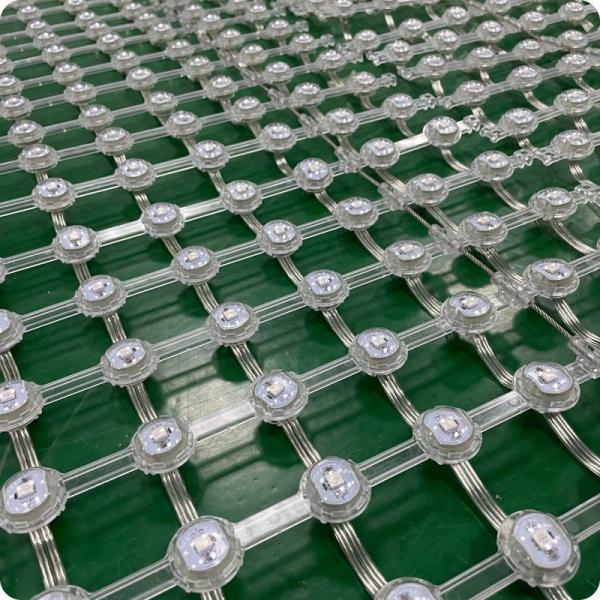

T20 LED Mesh Screen
