Specifications
Brand Name :
XQD
Model Number :
XR40 LED mesh screen
Certification :
CE, RoHS, FCC
Place of Origin :
Shenzhen
MOQ :
10Square
Price :
$86.00 - $102.00/square meters
Delivery Time :
10 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/Day
Packaging Details :
XQD PACKING/customized
Brightness :
Customized on demand
Lifetime :
100,000 hours
Gray Scale :
16 bit
Transparency :
70%
Module Size :
Customized on demand
Pixel Pitch :
customized
Viewing Angle :
140°/140°
Power Consumption :
Max. 800W/sqm
Operating Temperature :
-40°C ~ 55°C
Control System :
NovaStar/512/dmx
Refresh Rate :
1920Hz
Ip Rating :
IP68
Description

XR40 LED Mesh Screen Outdoor Transparent High Brightness Waterproof Soft Grid Screen

Product features:

Often used in advertising background screen, contour decoration, building facade new media display lighting.
The installation method is simple, does not affect the original building structure, the product permeability is high, the screen body is thin, we have a number of products for you to choose, interested welcome to contact!


3. Dustproof and UV resistant material face mask, small in size, exquisite in appearance, suitable for indoor and outdoor use;


4. Suitable for large and medium-sized advertising signs, as well as large area displays on building facades.

XR40 point light source technical parameters

Basic product parameters Product protection parameter
Product model XR40 Waterproof grade IP67
Product size Φ40mm*15mm Shell flame retardant V-0
Application environment Indoor and outdoor UV resistance grade 4
Product weight About31g Salt spray test Salt spray resistance
Shell material PC Impact resistance IK10
Maximum number of connections 60PCS/string Electrical safety class Ⅲ class
Center distance Minimum 8CM Safety certification CE FCC ROHS
Average product life 50,000 hours Operating temperature -40℃-55℃
Optional accessories Aluminum groove, steel wire buckle Case color Black/Grey
Wire core 2x0.75mm²+3x0.3mm²
Wire material PVC
PCB material FR-4 Fiberglass board
Product optical parameters Electrical parameters of the product
LED color RGBW(W:6500K) Operating voltage DC12V
Luminous Angle 120° Rated power 0.96W
Color resolution 3*8bit Supporting system
Lamp bead SMD5050*3LED Control system SPI
Pixel point luminous flux 50.2Lm Power supply system DC12V Constant voltage
luminance 13.8-14.3cd

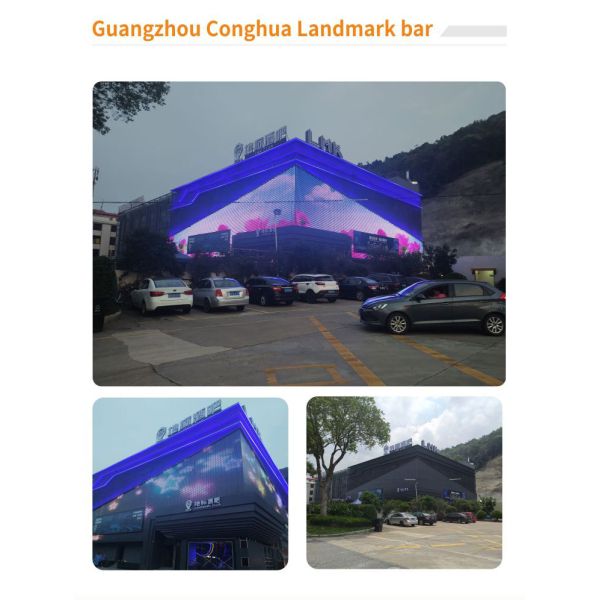

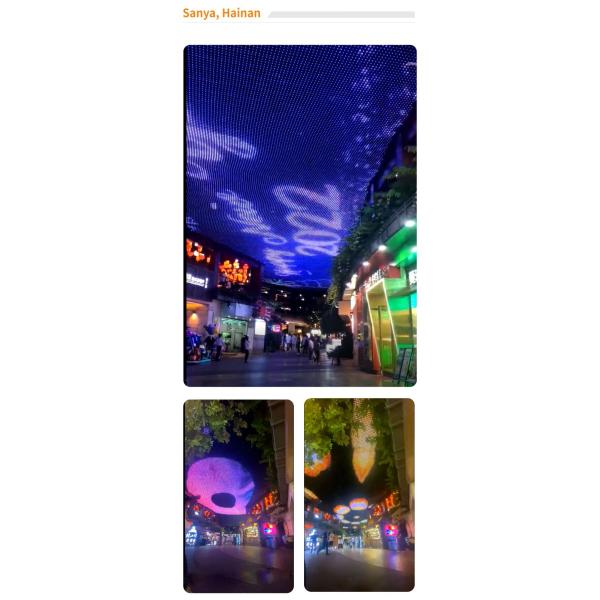

Applications:
Diverse specifications, support customized services: 2020 grid screen provides a variety of spacing specifications from P40-P125 to meet the needs of different building sizes
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls,
hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets,
kitchen, display, backlight and so on.
