Intelligent Depth Sensor 2T Dimensional Weight Scanner
Intelligent Depth Sensor 2T Dimensional Weight Scanner
Specifications
Brand Name :
FDT
Model Number :
GS300Max
Certification :
CE,ROHS,FCC,ISO
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 units per month
Delivery Time :
7-10 days
Packaging Details :
wooden carton
Name :
Dimensional Weight Scanner
measuring principle :
3D visual measurement
Measuring volume sensor :
6 pcs Depth Sensor
measuring range :
300*300*300～1500*1500*2000mm，accuracy<20mm;
Average accuracy :
20mm
Measuring speed :
4 second/piece
data output :
Excel/Http/TCP/serial port
Weighing range :
2T
Weighing accuracy :
0.5Kg-1Kg
Weighing output interface :
RS232
Description

Intelligent Depth Sensor 2T Dimensional Weight Scanner

Dimensional Weight Scanner functions and features

Customized function:According to the demand, we can provide customized functions, such as image HD, image naming, object shape classification, condition restriction, etc

Product features:Data can be exported at any time, accurate to any time; suitable for small and medium-sized goods measurement, regular / irregular, table can be placed at will.

Dimensional Weight Scanner application

Measuring volume

Taking picture

Data / picture storage and upload

Provide data interface and docking system

√

√

√

√

Dimensional Weight Scanner Technical Parameters

Model name

GS100 Dimensional Weight Scanner

measuring principle

3D visual measurement

measuring range

50*50*50～1000*1000*1000mm,accuracy<8mm;

Average accuracy

5mm

Measuring speed

0.5 second/piece

Operating system

Android

External support

Provide data interface to interface with the system

Storage function

Support the storage of each cargo photo

Main body

PDA

Product composition

PDA+volume measuring lens

Charging voltage

Standard PDA charger

Product structure

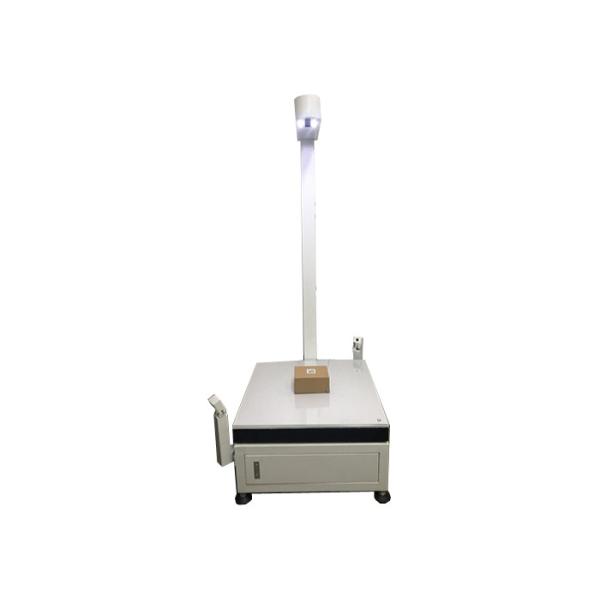

Intelligent Depth Sensor 2T Dimensional Weight Scanner

This structure is a testing machine structure, customized according to customer needs

Standard measurement effect drawing

Intelligent Depth Sensor 2T Dimensional Weight Scanner

After sales service

Lead time

20 working days for production commissioning, excluding transportation time

Warranty

Provide one year free warranty and replacement parts, the scope of warranty is limited to the quality problems or natural loss of equipment or accessories under normal use; provide paid after-sales service beyond the warranty period
