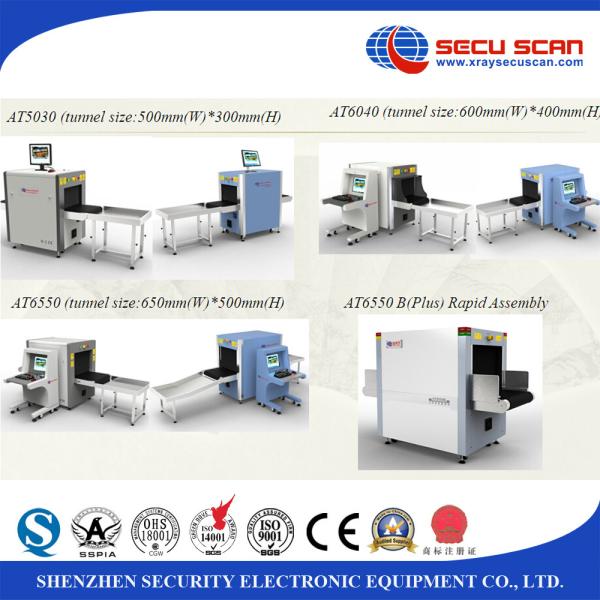

34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine
Specifications
Place of Origin :
China
Brand Name :
SECUSCAN
Certification :
CE, ISO
Model Number :
AT6550
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden Packing
Delivery Time :
One week when there is stock, One month when no stock.
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300 sets/month
x-ray security inspection system :
AT5030/AT6040/AT6550/AT8065/AT10080/AT100100
Under vehicle inspection system :
AT3000/AT3300
Explosive trace detector :
HD300/HD600
Liquid Bottle Scanner :
AT1000/AT1500
Walk thorugh Metal Detector :
MD300/AT2008/AT2009
Walk Through Metal Detector :
AT-IIIA,AT-IIIC,AT-IIID,AT300A,AT300B,AT300C
Description

34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine

Detailed Product Description

34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine

34mm Steel Penetration X Ray Baggage And Parcel Inspection Scanner Machine

Specifications:

Tunnel Size:

650(W)*500(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

150kgs

Dose per Inspection:

<2.9 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

30-38mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Upward

Generate angle:

80 degree

Anode Voltage:

140-160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic), 12bit Deep

Monitor:

High Resolution Color, LCD Accord, 17 inch

Image Processing:

Edge enhancement, image strengthening, image lightening,

reducing darkening, image returning, image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions, 2, 4, 8, 16, 64 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.1 KW (max), 0.35KW(working)

Noise:

<58db

Applications:

Airports,

Transport terminals,

Buildings,

Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,

Prisons,
Hotels,
Schools ,

Convention centers,
Security checkpoints,

Special events location

Tag : X-ray baggage scanning , X-ray baggage inspection system, baggage and parcel inspection, x-ray screening equipment
