Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Customs use X ray security scanner for pallet goods / cargo inspection
Specifications
Brand Name :
SECUSCAN
Model Number :
AT150180
Certification :
CE, ISO, USFDA, Radiation Safety
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 sets/month
Delivery Time :
One week when there is stock, One month when no stock.
Packaging Details :
Wooden Packing
Use :
for airport, forwarder pallet goods inspection
Warranty :
One year free spare parts, life time technic support
OEM/ODM :
Accepted
Installation :
very easy, only a few wires
Tunnel size :
1500(W)*1800(H)mm
Conveyor speed :
0.22m/s
Penetration :
32-34mm steel
Software Interface :
Support Multi language
Training :
Free of cost at the factory
Weight :
3500kgs
Price :
Negotiable
Description

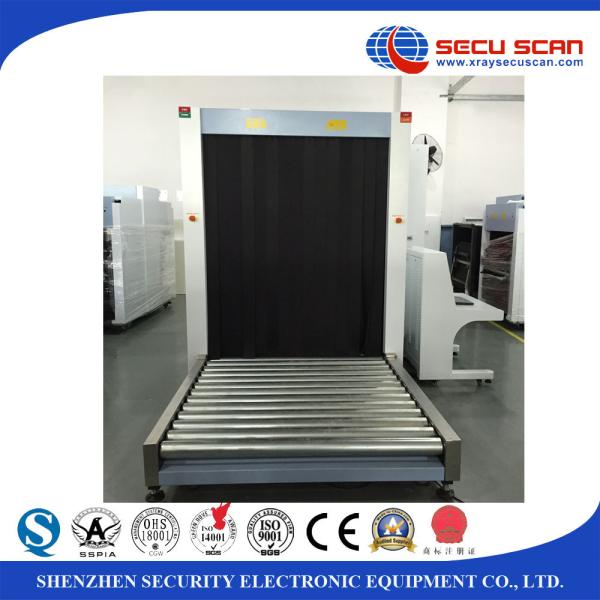

Customs use X ray security scanner for pallet goods, cargo inspection

Model: AT150180

AT150180 has been specifically designed to meet the needs and application of warehouses, carriers,forwarders and couriers for airport pallet cargo. AT150180 is a low energy x ray inspection system with tunnel dimensions of 1500mm width and 1800mm height. It is especially suitable for the inspection of air cargo transported on standard European, US, Asian pallets.

Specification:

X Ray Image:

X-ray Sensor L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder

X Ray Generator:

Beam direction From top to down
Beam angle 80 degree
Anode voltage 160kv
Anode power 0.5mA
Cooling / Duty Cycle Oil Cooling /100%

General specification:

Tunnel Size 1500(W)*1800(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 2000kg
Dose per Inspection <2Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 32-34mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <1.5 μ Gy/h (at a distance of 5cm From external housing)

Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical

Packing and Shipment:

Packing details carton packing
Carton Size:
Total Gross Weight:3500kg
Payment terms T/T, Western Union, Cash,L/C
Shipping methods By air (5-7days, most expensive)
By express (3-7days, more expensive)

By sea (15-28days, cheapest)

Installation Data:

  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.0 KW (max), 0.7KW(working)
  5. Noise: <58dB.

Our service:

  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.

Advantages:

  • We have 2 factory,total up to 40000 square meters, 400 employess and 3 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems

Applications:

End user Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals AT6040; AT6550; AT10080; AT100100
Factories (to find needle in clothing, shoes, bags), AT5030; AT6040; AT6550
Courthouses, Embassies, Buildings AT5030; AT6040; AT6550
Military installations AT5030;AT6040; AT6550; AT8065; AT100100
Prisons, Hotels, Schools, Convention centers AT5030; AT6040; AT6550; AT10080
Security checkpoints,Special events location AT5030; AT6040; AT6550; AT8065; AT10080

Quotation will send you by your inquiry ASAP
