Specifications
Brand Name :
SECUSCAN
Model Number :
AT6040
Certification :
US.FDA, CE, ISO9001, India-AERB
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P, D/A
Delivery Time :
7 days
Packaging Details :
wooden box
Tunnel size :
6150 * 418 mm
Belt load :
170kg
Belt speed :
0.22 m/s
Image :
color
Computer system :
Windows XP or 7
Software :
Multi-language
Remote :
remote workstation
Display :
17'' monitor
Technical training :
free
body frame :
stainless steel
Description

Low Noise Television X Ray Baggage Scanner System For Police , Customs Office

General Specification of x-ray inspeciton amchine:

* Tunnel Size: 6150(W)*418(H)mm

* Conveyor Speed: 0.22m/s

* Conveyor Max Load: 170kg

* Dose per Inspection: <2.9 μGy/h

* Resolution: <0.101mm Metal Wire

* Spatial resolution: Level: dia1.0mm, Vertical: dia1.3mm

* Penetrate resolution: Dia 0.511mm

* Penetration: 32mm Steel

* Film Safety: Guarantee ISO1600 Film

* X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

X-ray Generator of x-ray baggage detector

* Generate direct: Upward

* Generate angle: 80 degree

* Anode Voltage: 140Kv

* Anode power: 0.3mA

* Cooling / Duty Cycle: Oil Cooling /100%

Image System of x-ray baggage detector

* X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep

* Monitor: High Resolution Color, LCD Accord, 19 inch, operation desk(optional)

* Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

* Image Grey Level: 4096

* Image Max Resolution: 1024 * 1280pixel

* Image Processing: 24bit for processing real time

* Image storage: Storage 60000 pictures in real time

* Zones & Zoom: 1-32 Image regions,Whole screen continuous observation

* Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

* Assist to detect drug and explosive powder

* TIP & operator training program

* Remote workstation

Installation Data of x-ray baggage detector

Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

Operation Power: 187~240VAC, 50/60Hz

Power Consumption: 1KW(working)

Noise: <55db

Company Information
Sunny from Security Electronic Equipment Co.,Ltd(SEE) .
The manufacturer of threats detecting device in China.With professional R&D engineer team are specialized in:
  • Under vehicle inspection system(new)-mirror & camera
  • Explosive and Drug trace detection(new)
  • Dangerous liquid scanner(new)
  • X-ray screening system for baggage
  • Walk through metal detectors
  • Hand held metal detector

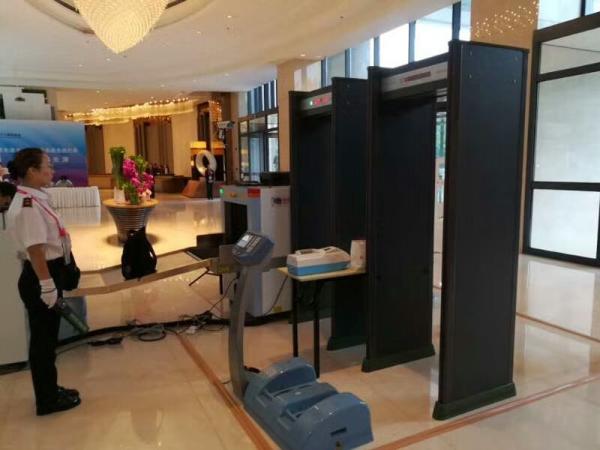

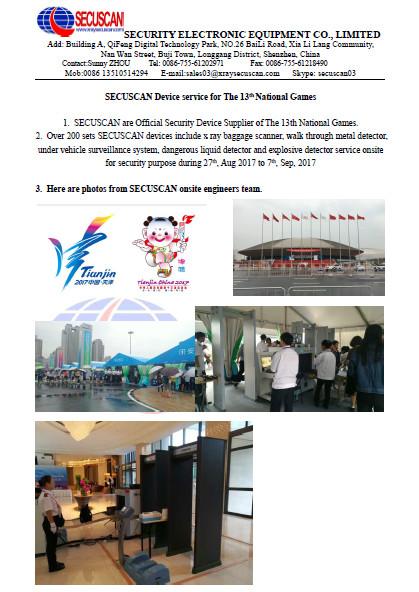

We have successful cases in airports,customs and government, important events for protection.
The reliable military supplier of security screening system.
