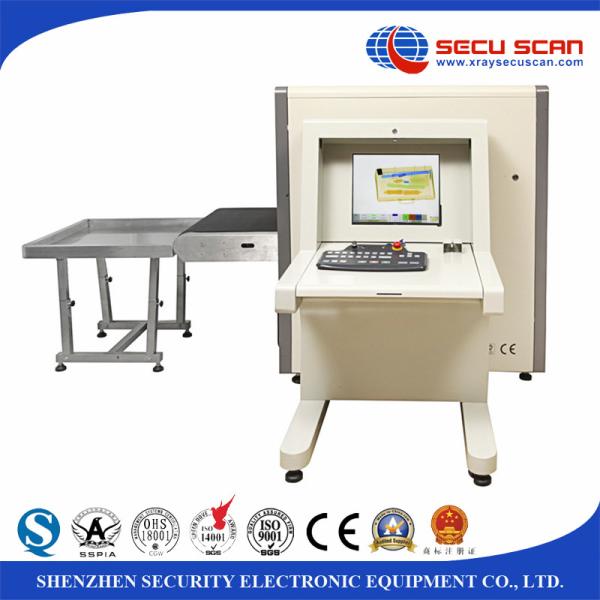

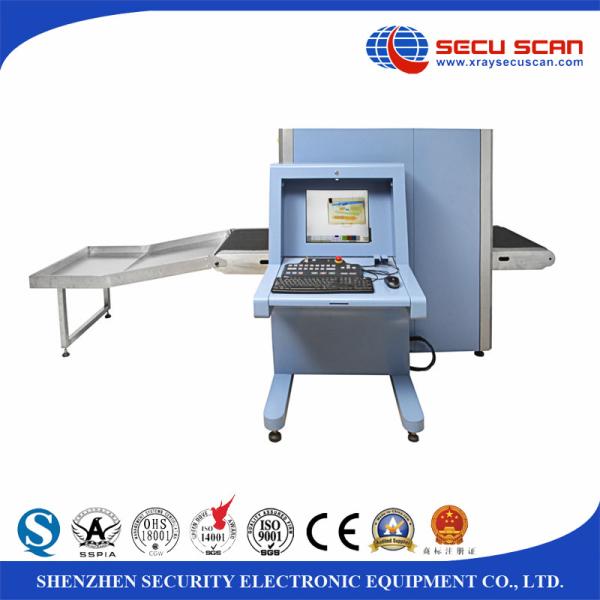

150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
150kgs Conveyor X Ray Baggage Scanner / airport security scanners
Specifications
Place of Origin :
China
Brand Name :
SECUSCAN
Certification :
ISO,CE
Model Number :
AT6550
Port :
Shenzhen
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden Packing
Delivery Time :
7 days when we have stock,15 days when we have no stock
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/month
Tunnel Size: :
650mm(W)*500mm(H)
Conveyor speed :
0.22m/s
Conveyor Max Loading :
150KG
Conveyor Hight :
628mm
Penetration :
32mm steel in standard, 38mm steel in high performance
Application :
Security Inspection System
Description

150kgs Conveyor X Ray Baggage Scanner / airport security scanners

General Specification

Tunnel Size: 650(W)*500(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg
Wire Resolution: 32AWG to 40AWG
Spatial resolution: horizontal:1.3 or 1.0mm,
vertical: 1.3 or 1.0mm,
Penetration: 30 to 40mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <1 μSv/h (at a distance of 5cm
from external housing)
Pass rate: 720 bags per hour

X-ray Generator

Beam direction: Diagonal
Generate angle: 80 degree
Anode Voltage: 140Kv or (100Kv to 160Kv adjustable)
Anode power: 0.4 to 0.5mA
Cooling / Duty Cycle: Oil Cooling /100%

Installation Data

Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.7KW(working)
Noise: <58db

Image System

X-ray Sensor: L-Shaped Photodiode Array
(multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
(19 inch optional)
Image Processing: Edge enhancement, image
strengthening, image
lightening,, reducing darkening, image returning,
image retrieval.
Image Grey Level: 4096
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zoom: max 16 Times Enlarge, Whole screen continuous observation

Advantage:

1 Top Scanning ability
2 Stable and reliable: each machine had strict high and low temperature test, high humidity test, anti-shock test,MTBF 10000 hours
3 Automatic sensor roller (Optional)
4 Upgrade quality solution (Optional)

5 Assist of detecting organic and inorganic items such as
weapons, explosives and narcotics using different colour show

150kgs Conveyor X Ray Baggage Scanner / airport security scanners150kgs Conveyor X Ray Baggage Scanner / airport security scanners
