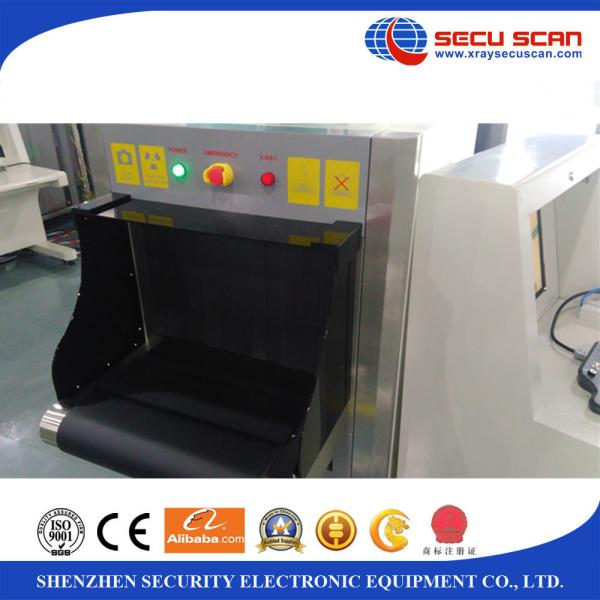

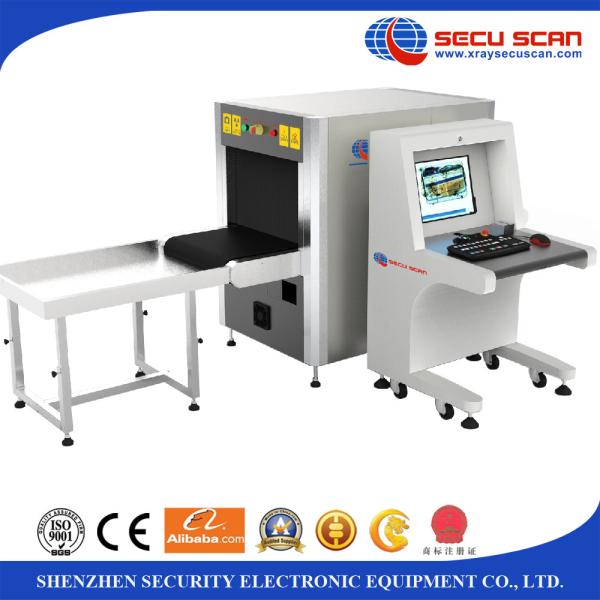

Security X Ray Baggage Scanner 6040 X-ray baggage and parcel Inspection Manufacture

Top Scanning ability

Stable and reliable: each machine had strict high and low temperature test, high humidity test, anti-shock test, MTBF 10000 hours
Automatic sensor roller (Optional)
Upgrade quality solution (Optional)

X-ray Generator

Beam direction: Diagonal
Generate angle: 80 degree
Anode Voltage: 140Kv or (100Kv to 160Kv adjustable)
Anode power: 0.4 to 0.5mA
Cooling / Duty Cycle: Oil Cooling /100%

Image System

X-ray Sensor: L-Shaped Photodiode Array(multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch (19 inch optional)
Image Processing: Edge enhancement, image strengthening, image lightening,reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Processing: 24bit for processing real time
Image storage: Storage 100000 pictures in real time
Zoom: 1-64Times Enlarge, Whole screen continuous observation
Assist of detecting organic and inorganic items such as weapons,explosives and narcotics using different colour show

General Specification

Installation Data

Operation temperature/Humidity:0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.7KW(working)
Noise: <58db

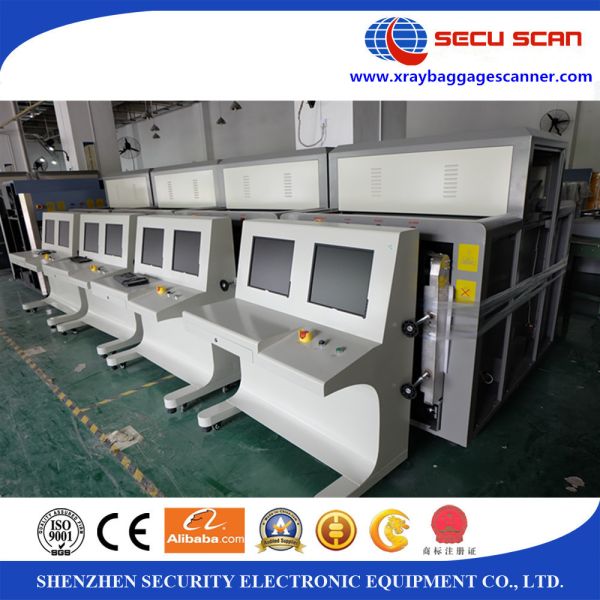

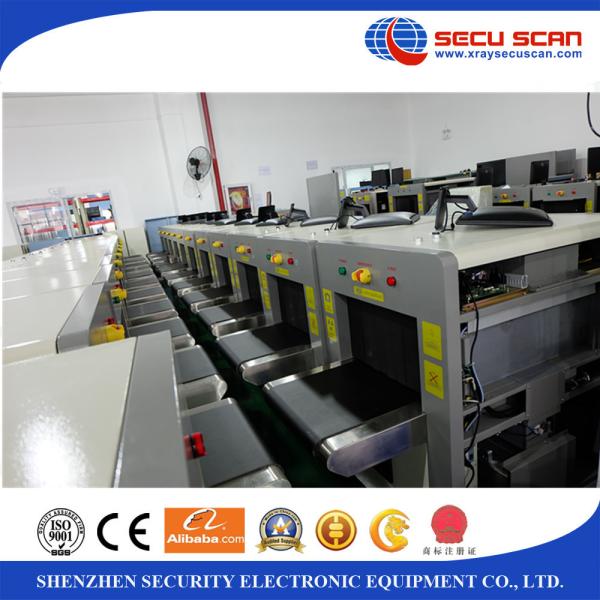

Our work shop

SEE(Security Electronic Equipment Co., Limited), is a high-tech company integrating R&D, manufacturing, engineering,training and services. We run SECU SCAN as the top brand. As a reliable supplier, we continue produce good quality products, give professional technical support.

SEE gradually establishes a very comprehensive product range covering X-ray machines with different tunnel size, Walk through Metal Detector, Hand-held Metal Detector, Dangerous Liquid Scanner, Explosive Trace Detector, Under Vehicle System and etc.

SEE security systems have been used in different countries and regions in airports, seaports, customs, railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.

With ISO9001 management system, SEE always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements.

With global marketing strategy, SEE provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' expectations.
Life is precious SEE puts its efforts on public security solution

Our service

All products purchased in our company are guaranteed to keep in good repair for one year.

If quality problems happen in guarantee period, our company will maintain for free.

Additionally, our company provides technical support and fittings for life.

After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.

If you are caught in some problems when using our products, welcome to contact us at any time.

Shipping and Packaging
