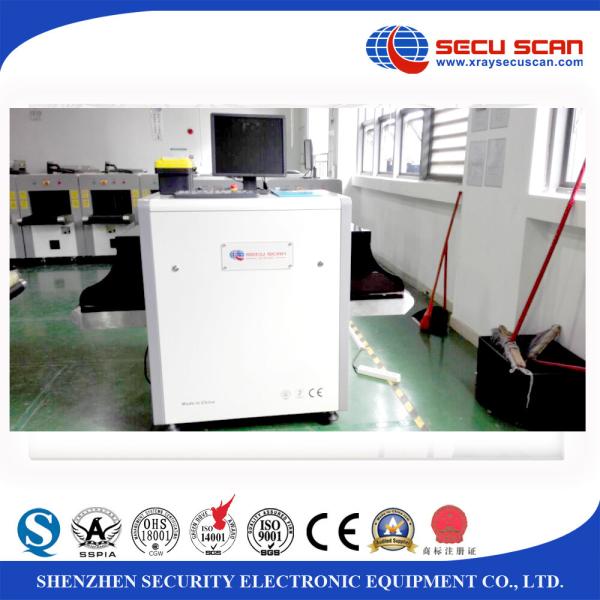

Hotel And Bank X - Ray Security Inspection System Assist To Check Threats At5030C

Technic specifications:

• Tunnel Size: 503mm*303mm Capable of screening object size of 490mm(W)*290(H)mm without corner cut off
• Dimensions: 1662mm(L)*726mm(W)*1205mm(H)
• Flow of conveyor belt: Bidirectional(Forward and Reverse)
• Conveyor Speed: 0.22m/s
• Conveyor Height: 740mm from Floor
• Conveyor Capacity: 150 kgs
• Construction: Custom Steel Frame/Panels

Technical

• Sensitivity: 38 AWG guaranteed, 40AWG typical
• Spatial Resolution: 1.0 mm Horizontal, 1.0mm Vertical
• Penetration: 30mm guaranteed, 32mm typical
• Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level

X-Ray Generator

• Voltage: 140KV
• Tube Current: 0.4mA
• Cooling: Sealed Di-Electric Oil Bath with Forced Air
• Duty Cycle: 100%, No Warm-up Procedure Required
• Beam Direction: Diagonally Upward
• Detector: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Computer

• Processor: Intel Celeron 2.6GHz 1333 MHz
• Memory: 2 GB RAM at 800 MHz
• Storage: 500 GB
• Video Card: 256 MB Video Card, Dual Digital Display
• Platform: Windows XP
• Backup: Uninterrupted Power Supply (20min)

Video

• Display Type: Single 17’’ LCD Color Monitor
• Display Resolution: 1280 X 1024; 24 bit/pixel Color

Environmental

• Operating Temperature: 0℃-45℃/20%-95%(non-condensing)
• Storage Temperature: -20℃-60℃/20%-95%(non-condensing)
• Humidity: Up to 95% Non-Condensing

Electrical

• Power Requirements: 220VAC :183-253 VAC, 50 Hz. 10 Amp Max

Health and Safety

• Compliant with CE, Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems.
• Typical Radiation leakage is less than 0.1 mR/hr(Leakage less than 0.5 mR/hr permitted by the Federal Standard)
