x ray security scanner / screening device with Idle rollers for museum
x ray security scanner / screening device with Idle rollers for museum
x ray security scanner / screening device with Idle rollers for museum
x ray security scanner / screening device with Idle rollers for museum
Specifications
Brand Name :
SECUSCAN
Model Number :
AT6550
Certification :
CE, ISO, US.FDA
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300 sets/month
Delivery Time :
One week when there is stock, One month when no stock.
Packaging Details :
Wooden Packing
Image :
color
Tunnel size :
650*500mm
Alarm :
audio alarm for explosives
Software :
the third friendly software
UPS :
to supply power
Steel penetration :
34mm
Language :
multi-language support
Training :
professional
Installation :
local engineer support
Price :
Negotiable
Description

x ray security scanner / screening device with Idle rollers for museum

The Secuscan AT6550 is a compact checkpoint unit for critical infrastructure applications to prevent smuggling of dangerous objects in briefcases, handbag, rucksacks, carrier bags, etc.

Competitive Advantage:

* Integrated, cost Effective, Turn-Key Security

* Fit for small Baggage and Parcel Security Inspection.

* Increased detection capability

* Friendly interface for ease-of-use

* Reliable performance and uncompromising value

Specifications:

Tunnel Size:

650(W)*500(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

170kgs

Dose per Inspection:

<2.9 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

34mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Upward

Generate angle:

60 degree

Anode Voltage:

140Kv

Anode power:

0.4 to 0.5mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic), 12bit Deep

Monitor:

High Resolution Color, LCD Accord, 17 inch

Image Processing:

B/W, color Edge enhancement, image strengthening, image lightening,

reducing darkening, image returning, image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 100,000 pictures in real time

Zones & Zoom:

1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen

continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

187~240VAC(±10%),50/60Hz

Power Consumption:

0.3KW(working)

Noise:

<65db

Applications:

Airports,

Transport terminals,

Buildings,

Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,

Prisons,
Hotels,
Schools ,

Convention centers,
Security checkpoints,

Special events location

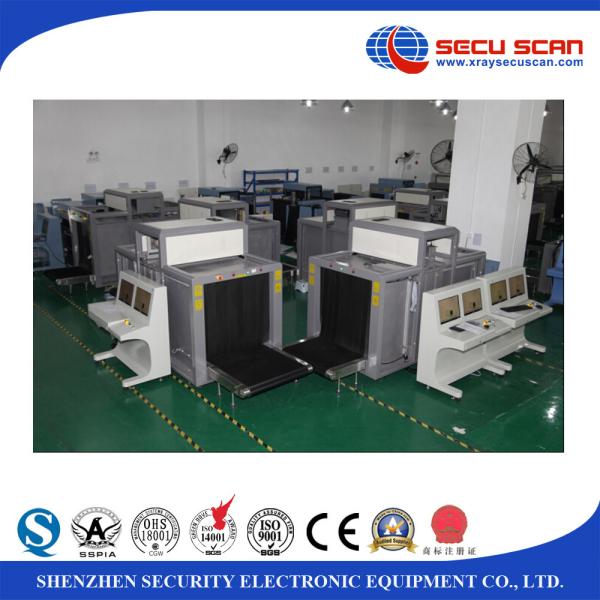

Secuscan factory and enginner team :

x ray security scanner / screening device with Idle rollers for museumx ray security scanner / screening device with Idle rollers for museum
