Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
Specifications
Brand Name :
SECUPLUS
Model Number :
SPX10080
Certification :
CE FCC ISO FOHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300 sets per month
Delivery Time :
One week for stock. One month for producing
Packaging Details :
wooden packing
Tunnel Size :
1000(W)*800(H)mm
OEM :
accept
Conveyor Speed :
0.22m/s
Conveyor Max Load :
200kg
Anode Voltage :
100~160Kv
Penetration :
27mm to 40mm Steel
spot :
yes
training :
yes
Description

Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration

General Specification


● Tunnel Size: 1000(W)*800(H)mm
● Conveyor Speed: 0.22m/s
● Conveyor Max Load: 200kg
● Dose per Inspection<1.7μGy/h
● Resolution:32AWG to 40AWG
● Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm
● Penetrate resolution: 24WG to 34AWG
● Penetration: 27mm to 40mm Steel
● Film Safety: Guarantee ISO1600 Film
● X-ray Leakage <0.1 μGy/h (at a distance
of 5cm From external housing)


X-ray Generator


● Generate direct: Downward
● Generate anger: 80 degree
● Anode Voltage: 100~160Kv
●Anode power: 0.4 to 1.2mA
● Cooling / Duty Cycle: Oil Cooling /100%


Image System


● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
● Monitor: High Resolution Color, LCD Accord, 17 or 19inch
● Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image
returning, image retrieval.
● Image Grey Level: 4096 Image Max Resolution: 1024 * 1280 pixel
● Image Processing: 24bit for processing real time
● Image storage: Storage 60000 pictures in real time
● Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
● Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
● High-energy/low energy : switch from high energy to low energy
● Assist to detect drug and explosive powder


Installation Data


● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 1.0KW(working)
● Noise: <58db

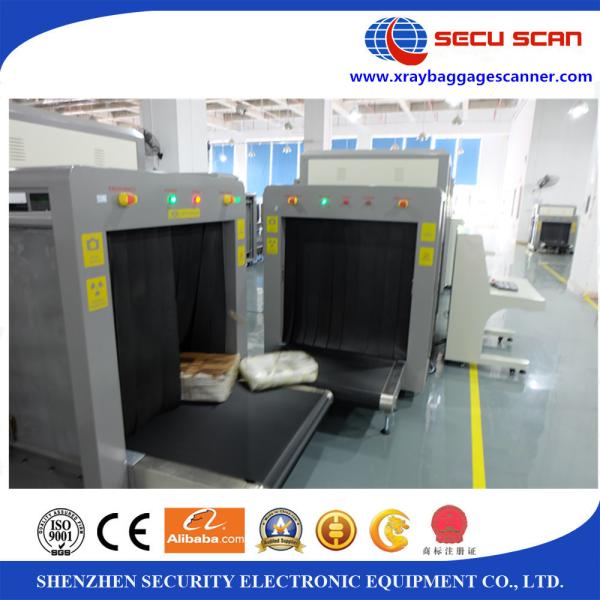

Our work shop

Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration

Airport X Ray Baggage Scanner SECUPLUS Xray Baggage Scanner high penetration
