High level security x ray scanning machines alarm for APEC meeting

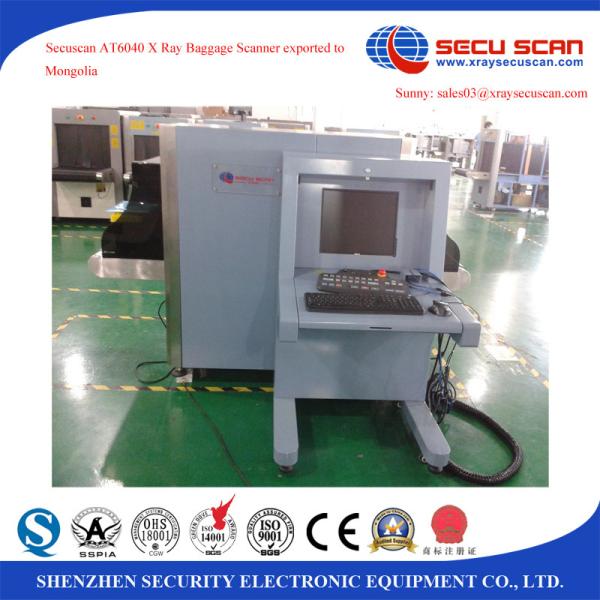

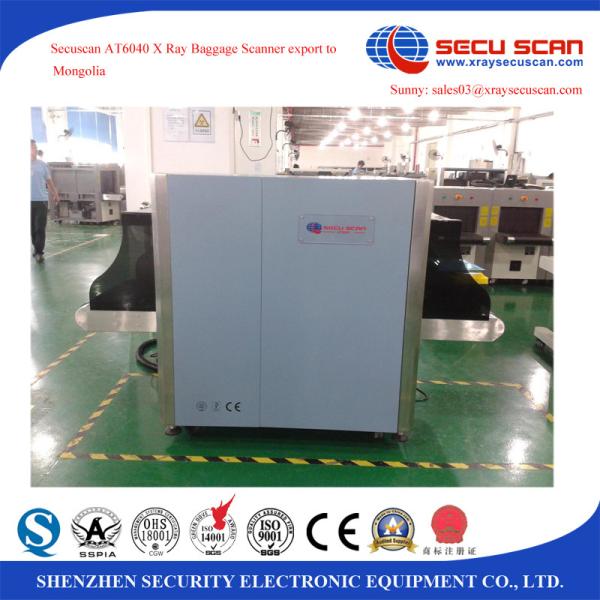

Model: AT6040

General Specification :

Dimension: 2007.5(L)* 868(W)*1314(H) mm

Tunnel Size: 615(W)*418(H)mm

Conveyor Speed: 0.2m/s

Conveyor height : 680.5mm

Conveyor Max Load:170kg

Wire Resolution: 38AWG standard, 40AWG typical

Steel Penetration: 30mm standard, 32mm typical

Film Safety : guarantee ISO 1600 film

X-ray Leakage: <1.0μ Sv / hr(at a distance of 5cm From external housing)

Image System :

X-ray Sensor: L-Shaped Photodiode Array ,16bit deep .

X ray detector board : United kingdom import (SENS TECH)

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Black / white, Color, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening.

Memory gray level : 65536

Image Max Resolution: 1024 * 1280 pixel

Image Processing: 24bit for processing real time

Image storage: Storage 100,000 pictures in real time

Zoom: 32 Times Enlarge, Whole screen continuous observation

Standard parts: menu, electricity testing, date/time display, auto-counting of objects detected, operator license number, maintenance record, system start up/ x ray generator, radial beam timing, operating mode display

Multi-energetic distinguish retrieval Objects: Selective detection of Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green.

Assist to detect drug and explosive powder, according to the material composition characteristics of explosives and drugs, this device can detect.

TIP function: Dangerous goods image is provided by the insert function (TIP), which can be convenient for training and assessing the operator’s image and recognition ability.

To connect Ethernet network

X-ray Generator :

Beam direction: Diagonally Upward

Generate anger: 80 degree

Anode Voltage: 140Kv

Anode power: 0.3mA

Cooling : Sealed Di-electric oil bath with forced air

Duty Cycle: 100% no warm-up procedure required

Computer Character :

Computer processor: Intl Core i2

Memory: 2GB RAM

Storage: 500GB HDD upgradable

Video card: 1GB, dual digital display

Platform: Windows XP.

Other Characters :

Keyboard Protection: IP43

Machine Protection: IP20

70 cm extended output table

Dual direction scanning

Extension stainless steel Rollers: Optional

UPS(Uninterrupted Power Supply): Optional

Support card reader operator access

LCD monitor: 19 inch (optional)

Audio and visual alarm (optional)

Certificates: US. FDA, ISO9001:2008, CE

Operating Environment:

Operation temperature/Humidity: 0℃-40℃/10%-95%(non-condensing)

Storage Temperature/Humidity: -20℃-60℃/10%-95%(non-condensing)

Operation Power: 187～240VAC, 50/60Hz

Power Consumption: 0.8 KW

Noise: <58db

Multi-function touch screen keyboard :

High quality color scanning image
