| Power supply | AC 110V/220V±10% 50/60Hz |
| Total power | Max 10400W |
| Heater power | Upper heater 1200W,bottom heater 1200W,IR heater 8000W MAX |
| Locating way | Optical camera+ V-shape card slot + adjustable PCB support jigs + laser position for fast location |
| Temperature controlling | (high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃ |
| Electrical material | Servo motor + PLC control + smart temp.controller + high sensitive touch screen IPC |
| PCB size | Max 1200×700mm Min 10×10 mm(customizable) |
| Applicable PCB thickness | 0.3-8mm |
| Chip amplification multiple | 1-200X |
| Chip size | Max 120*120mm, Min 0.6*0.6mm |
| Min. chip space | 0.15mm |
| Max. mount loading | 300G |
| Mounting accuracy | ±0.01mm |
| Alignment system | Optical lens + HD industrial camera |
| Temperature Interface | 13pcs |
| Tin spot monitoring | Side camera used for monitoring solder ball melting in soldering process |
| Degree of Automation | Upper heater and CCD camera can be removed front and back,left and right both,prevent the dead angle |
| Overall dimension | L1350×W1300×H1920mm |
| Weight | 650KG |
● 10sections up(down) temperature+10sections constant temperature,can store more than 5000group temperature curve,can analysis the temperature curve on the touch screen; different sizes Titanium alloy nozzles,easy change,can 360°rotate.

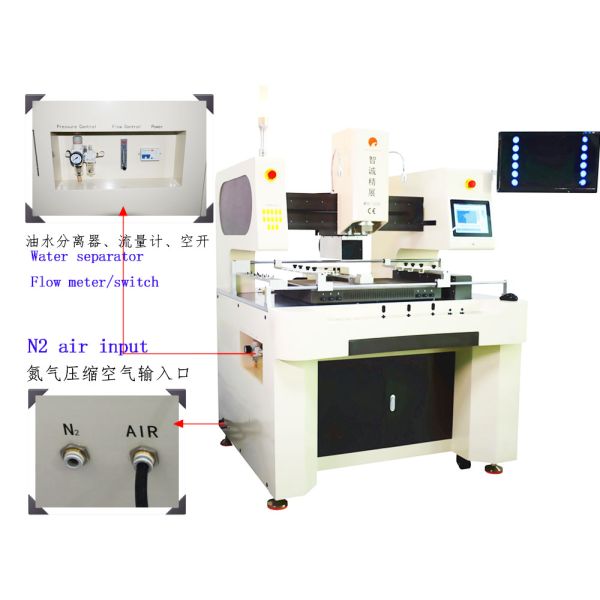

●. 13 pcs temperature sensor, can monitor and analysis more place on the PCB. Equipped with nitrogen inlet, use nitrogen to protect the soldering,more the rework more safety and reliable.
