Specifications
Place of Origin :
Guangdong, China
Brand Name :
WDS LED TV motherboard repair machine
Certification :
CE ISO
Packaging Details :
standard export wooden package for WDS-750 LED TV motherboard repair machine
Price :
$12,096.00/Pieces
Machine Type :
welding equipment
Applicable Industries :
Home Use, Retail, electronic repair centre
Warranty :
1 year free
Voltage :
110V/220V
Current :
Dependable
Rated Capacity :
6800W
Rated Duty Cycle :
100%
Dimensions :
L670*W780*H850mm
Usage :
repair motherboard
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Weight :
90kg
Product name :
WDS-750 LED TV motherboard repair machine
Total power :
6800W Max
Optical alignment lens :
Motor drive can move front back right left
Position way :
Optical lens+ Vshape holder+laser positioning
Alignment :
CCD alignment system with LCD
Repair size :
Max 500*450mm,Min,10*10mm
BGA size :
0.8mm-8cm
Temperature control :
Within ±1 degree
Operation :
Stable and precise
Training :
Free training
Description

Professional BGA rework station manufacturer here

↓↓↓

↓↓

↓

Infrared bga rework station WDS-750 full auto LED TV motherboard repair machine

WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine

WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine

Features of WDS-750 LED TV motherboard repair machine:

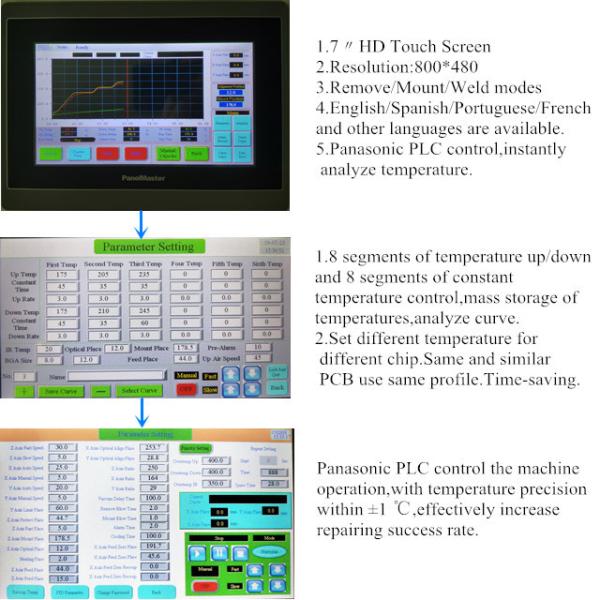

1.Touch screen interface,heating time,heating temp,temp rise speed,cooling time,alarm advance,vacuum time are set up inside the touch screen,easy to use;full auto bga rework station

2.Panasonic PLC, independent control temperature control module,shows 3 temp curves all the time,4 independent sensors,check the temp accurately for the chip points,ensure the weld yield;

3.3 independent heating zones,each heating zone can set up the heating temp,heating time,temp rise rate;Six period of heating temperature, simulate the reflow heating mode,set up as Preheating, keeping, heating, welding, welding, cooling;

4.Auto feed chip,auto pick up chip,auto blowing chip,can identify the central position automatically when optical alignment;

5.Multifunction mode choice, four modes as weld,remove,mount,manual,automatic and semi-auto function,meet the various needs of the users;

6.Uses the high precision K-type thermocouple closed-loop control which is imported from USA,with the unique heating method,ensure the weld temp precision control within ±1 ℃;

7.Uses imported optical alignment system,500 pixel HD camera,HDMMI HD signal output,15 inch HD LCD,high accurate micrometer X/Y/Z axis adjustment,ensure the location precision within 0.01-0.02mm;

8.The upper heating head and placement head are designed 2 in 1,different size of heating nozzles are provided,easy to remove and install,can be customized,meet the more requirement for users;

10.Equipped the extra camera to obverse the solder ball melting,to ensure the temp curve and weld effect(this function is optional).

Parameters of WDS-750 LED TV motherboard repair machine:

Power 6800w
Up heater power 1200w
Down heater power 1200w
IR heater power 4200W(2400W control)
Power supply (Single Phase) AC 220V±10 50Hz
Position way Optical lens+ Vshape holder+laser positioning
Temperature control High precision K shape sensor(Closed Loop),up and down independent temperature heating zone,Precision can reach±1℃
Material High sensitive touch screen+temperature control module+PLC+step drive
PCB Size Max:500×450mm,Min: 10×10mm
Thermo-couple Ports 4pcs
Chips magnification times 2-30
PCB thickness 0.5-8mm
BGA size 0.8mm-8cm
Min.chips pitch 0.15mm
Mounting BGA weight 1000g
Mounting precision ±0.01mm
Size L670×W780×H850mm
Optical alignment lens Motor drive can move front back right left
Weight 90kg
WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine
WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine
WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine
WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine
WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine
WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine
WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine
WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine
Our Services

1.Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company.

2.Your inquiry will be replied in 24 hours ,7 days/week

3.Technology Support :life-time maintenance; If you have time ,welcome to our company ,we will arrange engineers to show you the operation;

4. 24 hours technical support by email or calling.

5.Demo operation video of the machine are available.

6.Give great discount to AGENCY to ensure agents profit.

Packaging & Shipping

1,Standard Export Wooden cases;
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT, UPS ,DHL,fedEx , or by air or by sea;
4,Loading port: Shenzhen or Hongkong.WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine

Company Information

WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine

Hot selling WDS-620

WDS-750 Infrared BGA Rework Station LED TV Computer Motherboard Repair Machine

FAQ

*Payment terms
-T/T :30% deposit, Balance before shipment
-Western Union
-Paypal
-Aliexpress
-Escrow
*BGA application
-Laptop notebook motherboard bga rework and repair;
-Game consoles applications such as xbox Ps3 Wii bga rework and repair;
-Large circuit board maintenance, and mobile phone motherboard such small small-sized chip.
*Training & Warranty
Life-time free training of operation and maintenance.
Warranty:lifetime free service ,one year warranty. the 1st year is free,ONLY spare parts charged after the 1st year. Reply within 24hours,7 days/week.
Training and warranty can be from the overseas local office or Shenzhen Wisdomshow office directly.
