Technical parameters of WDS-750 cpu chips removal

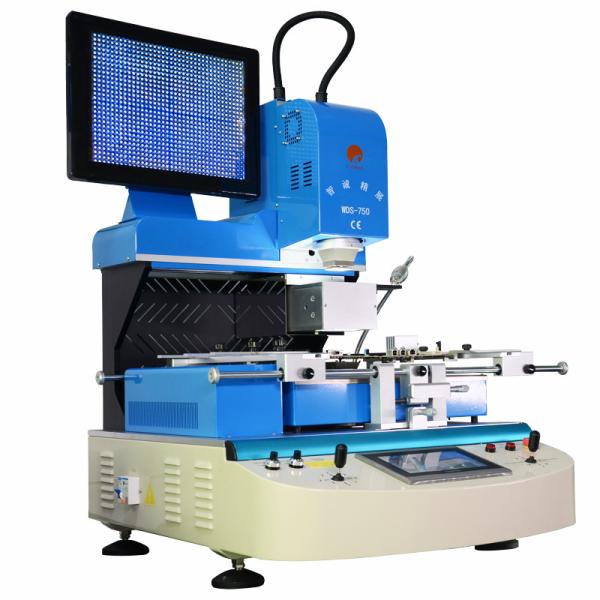

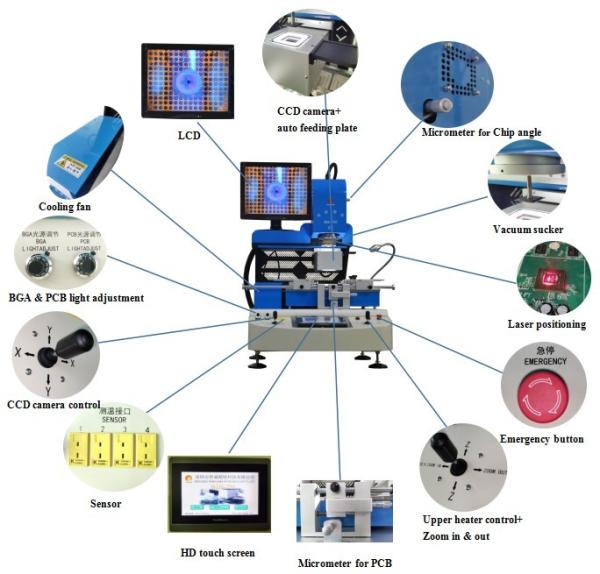

Detailed Picture of WDS-750 BGA rework station

Main Features

>>>>Touch screen with human interface,heating time,heating temperature,reflow temperature rate,advanced alarming,vacuum time all can set inside the touch screen,simple operation,easy learn.

>>>>PLC import from Japan,temperature control module use China famous brand,display three temperature curves,4pcs independent temperature sensor,which can measure the different place temperature of the chips,make sure the rework rate.Economical bga rework station WDS-750 with optical alignment system for iphone 5s 6 icloud removal

>>>>Three independent heating temperature zone,each heating temperature zone can independently set the heating temperature ,heating time,rate;six heating temperature sections,Simulate the reflow oven heating mode[preheating,constant,warming,soldering,reflow soldering,cooling.

>>>>Auto feed chips,pick up chips,blowing chips;auto recognition chips place during alignment Multifunction model weld,remove,mount,manual,realize semi auto and auto function ,meet customer’s requirement

>>>>High precision K-type Closed Loop import from USA together with our company special heating way,the soldering rang of temperature within±1 degree.Economical bga rework station WDS-750 with optical alignment system for iphone 5s 6 icloud removal

>>>>Imported optical alignment system with 15’’high definition monitor;high precision micrometer adjust X/Y/R axis;make sure the alignment precision within 0.01-0.02mm.

>>>>Top heater and mounting heater design 2 in 1 which can make the mounting more precision;there are many sizes of BGA nozzles which can meet different chips sizes,BGA nozzles can easy change,we accept customize.

>>>>High automatic and precision,Completely avoid human operation error; it is good for reworking lead free craft and double BGA,QFN,QFP,capacitance-type resistor components which can achieve good result.

>>>>Additional monitoring camera which can observe the solder ball melting and easy to check the temperature curve and the soldering result(optional function )

Other types of BGA rework station

1. Manual BGA rework station. It mainly applies to Mobile and Laptop. The maxmum bga chip can reach 60*60mm.

2. Auto optical alignment system bga rework station. It mainly applies to PS3, PS4, Xbox, Mobile Laptop and most kind of motherboards

3. High Professional mobile phone chip replacement bga rework station. It is dedicated to repair mobile phone and mini iPad only with optical alignment system

4. Big size Automatic optical alignment system bga rework station. It mainly applies to TV,Laptop, Mobile and other big size motherboards.

Accessories of WDS BGA rework station

Workshop

We are devoted to producing a perfect machine!

Packaging and shipping

1,Standard export strong wooden package for bga rework station
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT, UPS ,DHL,FEDEX (IE), or by air or by sea
4,Loading Port: ShenZhen or Hongkong

Machine Operation

Specific Repair steps:

1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) Replace a new BGA chip - we called Soldering

Moreover:

Free training will be provided!
1.We will provide you English instruction book and Demo Video to see how to use.
2.About the temperature setting ,please refer to the setting of the temperature parameters manualhere and to see how to set temperature.
3.if you still have any question, please contact us by E-mail/phone call/Alibaba online service.

Our Service and Advantages

1.Your inquiry will be replied in 12 hours.
2.Original Manufacture to customers, with competitive price.
3.We provide one year warranty, free training and whole life technology support.
4.We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.

5.Well-trained and Professional after-sales service team to support you.
6.Manual and Demo video CD will package with machine, It will show you how to use machine step by step.
7.Payment terms ,like T/T, Westerunion, PayPal is choosed by customers.

Pre-Sales Service:
* All productiong lines have adequate quality control and QA/QC inspectors work independently from the production line.All products passed CE & ISO certification.
After-Sales Service
* Offer free spare parts and service within 12 months of warranty,and all the other relative cost should be on the buyer's account.
* Provide Demo operation video for training.If you have time,welcome to our company,will arrange engineers to show you the operation,you can also test the machine by yourself.

FAQ

1.It is the first time i use this machine, is it easy to operate?
A: There is an English manual and guide video that show you how to use the bga machine, and the machine provides two languages(Chinese and English), you can choose English. If you still have any questions, please contact us by E-mail/Skype/phone/video call/Alibaba online service.

why choose us?

1.We are the Manufacturer= own factory+ machine design+Sheet metal produced by ourself+spray the powder+ strong assemble the machine team + packaging+free training.
2.More than 11 years experiences in PCB BGA chips rework station, Over 20 R&D engineers.
3. Has been the biggest factory in the BGA rework field in China.
4.HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor.
