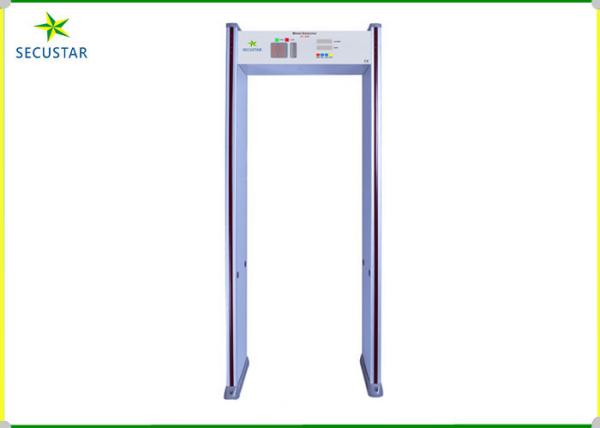

Security Door Frame Metal Detector Door PS-IIIC with Body Temperature Test and alarm :

Walk-through body temperature detector (automatic scan medical body thermometer) detects body temperature & hand-foot-mouth disease ( HFMD ) body temperature & H1N1 swine flu body temperature & H3N2 flu body temperature & H7N9 bird flu body temperature & Ebola virus disease (EVD) human fever body temperature and flu body fever temperatures.
Walk-through body temperature detector has a high sensitive detection temperature, detects a wide range & fast speed, does not interfere with the measured target, and its use is safe. Only when a human passes through it in the body detection range, the detector shows an immediate human body surface temperature, the operator can obtain accurate data. If they are suspicious fever patients, it will immediately report to the police apparatus, it is a timely and effective manner to prevent the flow of flu cross-infection.

Product Main Characteristic:

• ►06 or18 zones setting freely, multi-zones detection alarm separately with body temperature test function
• ►LED digital display with function press keys, 5 bit count, above 37.3 degree sound and light alarm .
• ►Sensitivity adjustable, overall 0-256 level, each zone also 0-256 level sensitivity adjustable.
• ►It is able to detect ferrous and non-ferrous articles
• ►Led alarm bars built in front of door panels that is for accurate detection and alarm display
• ►Automatically count passengers and alarm times

Product detail description :

Non-contact testing, safe and reliable, floor design, after the probe scans 0.3 ~ 0.5 seconds, it displays test results & the test results are digital show. The red & green light-emitting diodes display the work state to be clear and intuitive, measurement system to automatically open. 2. Many vertical scanning probes are in order to adapt to different height people for accurate measurement. An automatic voice broadcast system broadcasts monitoring results.
After starting the detector, a green light flashes. When it encounters a high temperature, the green light goes out, is turned off, and in the meanwhile the red light flashes and it gives an alarm sound.

( Optional): After starting the detector, a green light does not brighten, when someone passes through it, the green light flashes in a normal temperature, but in a high temperature the red light flashes and it gives an alarm sound.

Technical data:
1. Door Size: 2100 mm (H) x 980 mm (W) x 880 mm (depth). 2. Repeated measurement and time interval: 0.5 seconds. 3. Relative humidity: 80%. Voltage: 110V, 220V (± 10%), 50Hz/60Hz. Temperature resolution: 0.1º C. Door frame made by alloy, its appearance is high-grade. Alarm temperature: 37.5 º C, ( this temperature can be free to be set, for example: 37 º C, 37.1 º C, 37.2 º C, 37.3 º C, 37.4º C and so on ). The factory setup is 37.5 º C, the body temperature exceeds it for the alarm. Fever alarm. Install more than 13 medical detection body temperature sensors in this system, medical body temperature sensors manufactured in Germany.

Technical Specification:

Manufactuer support:

1. Product design, technology development, parts processing and sales integration services
2. One of the world's top four brands, leading technology, quality first, service first-class
3. Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
4. Agency cooperation,ODM,OEM
5. Sales of a complete set of technical solutions
6. Technical guidance and training for customers
7. 24months quality warranty ,24hours online technology support
