Usage

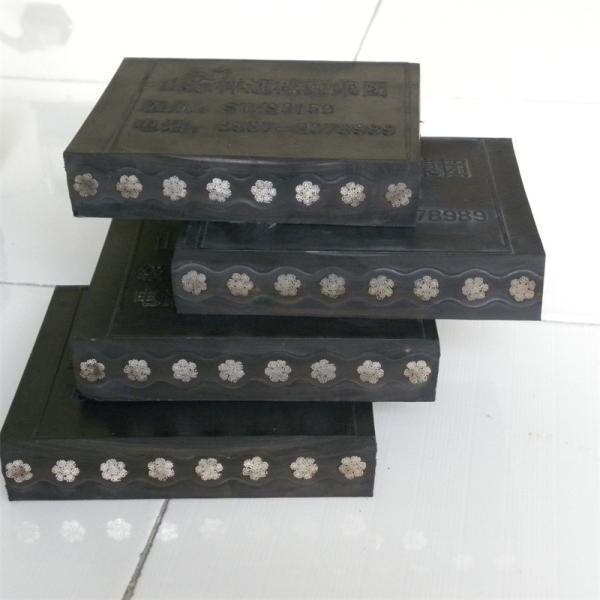

Patterned steel cord conveyor belt is composed of belt body and pattern part, due to the different materials transported and the size of the conveyor Angle, the shape and height of the pattern are also different. This steel cord conveyor belt is suitable for powder, granular and small piece material conveying with 15-40 degree inclination, and can also transport packaging bag materials.
Characteristics
Type: “人”type, “八”type, “V” type
Bandwidth: 800mm-1000mm
Figure height: 6 (mm)
Pattern spacing: 220 (mm)
Note: The type and height of the pattern is different, and can be designed according to the actual needs of the customer.
Standard Specifications
Model | Tensile Strength(N/mm) | Cord Pitch (mm) | Cord Diameter (mm) | Min Cover thickness (mm) | Width (mm) |
ST630 | 630 | 10 | 3 | 4 |
800-2400 |
ST800 | 800 | 10 | 3.5 | 4 | |
ST1000 | 1000 | 12 | 4 | 4 | |
ST1250 | 1250 | 12 | 4.5 | 4 | |
ST1600 | 1600 | 12 | 5 | 4 | |
ST2000 | 2000 | 12 | 6 | 4 | |
ST2500 | 2500 | 15 | 7.2 | 5 | |
ST3150 | 3150 | 15 | 8.1 | 5.5 | |
ST3500 | 3500 | 15 | 8.6 | 6 | |
ST4000 | 4000 | 15 | 8.9 | 6.5 | |
ST4500 | 4500 | 16 | 9.7 | 7 | |
ST5000 | 5000 | 17 | 10.9 | 7.5 | |
ST5400 | 5400 | 17 | 11.3 | 8 | |
ST6300 | 6300 | 19.5 | 12.8 | 10 | |
ST7000 | 7000 | 19.5 | 13.5 | 10 | |
ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.
Cover Grades
Grade | Tensile Strength(ISO37) Mpa
| Elongation at break min. (ISO37) % | Abrasion max. (ISO4649) mm³ |
H | 24 | 450 | 120 |
D | 18 | 400 | 100 |
L | 15 | 350 | 200 |
Kª | 15 | 350 | 200 |
Note: Kª for flame-resistant and anti-static belts in accordance with ISO340 and ISO284 |
The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
